Transverse Member Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transverse member.
  2. Install the transverse member.

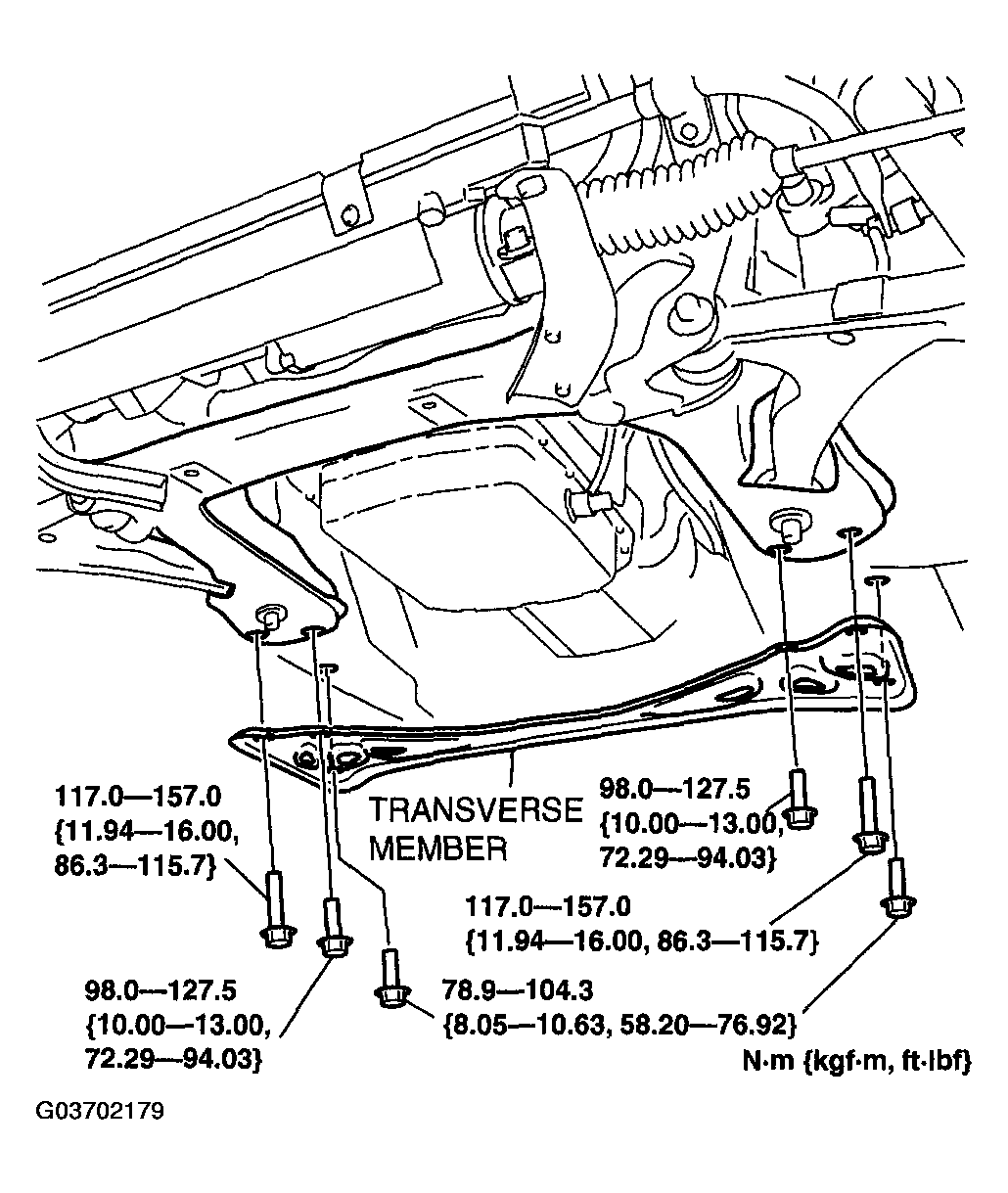

    Fig 1: Installing The Transverse Member With Torque Specifications
    G03702179Courtesy of MAZDA MOTORS CORP.
