Front Fog Light Adjustment

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the tire air pressure to the specification.
  2. Position the unloaded vehicle on a flat, level surface.
  3. Seat one person in the driver's seat.
  4. Position the vehicle 3 m {10 ft}  in front of a white screen.
    Fig 1: Setting Up Vehicle For Front Fog Light Adjustment
    G03645559Courtesy of MAZDA MOTORS CORP.
  5. While adjusting one fog light, mask the other.
  6. Start the engine to charge the battery.
  7. Turn the front fog light on.

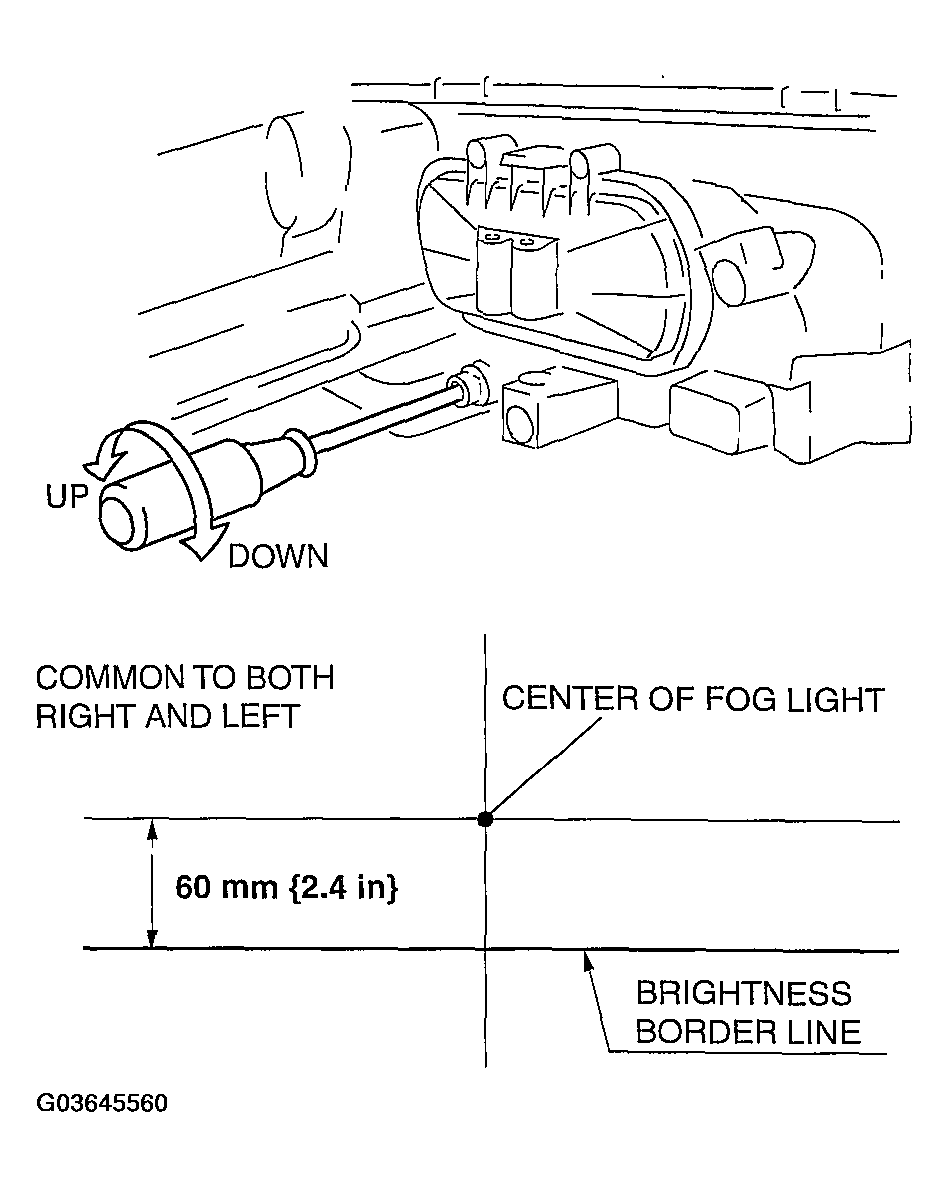

  8. Adjust the front fog light as shown in the figure.
    Fig 2: Adjusting Front Fog Light
    G03645560Courtesy of MAZDA MOTORS CORP.
