Trunk Lid Opener Switch Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Disconnect the trunk lid open switch connector.
  4. Squeeze the tabs of the trunk lid open switch and pull it toward you to remove it.
  5. Remove the trunk lid open switch.
  6. Install in the reverse order of removal.

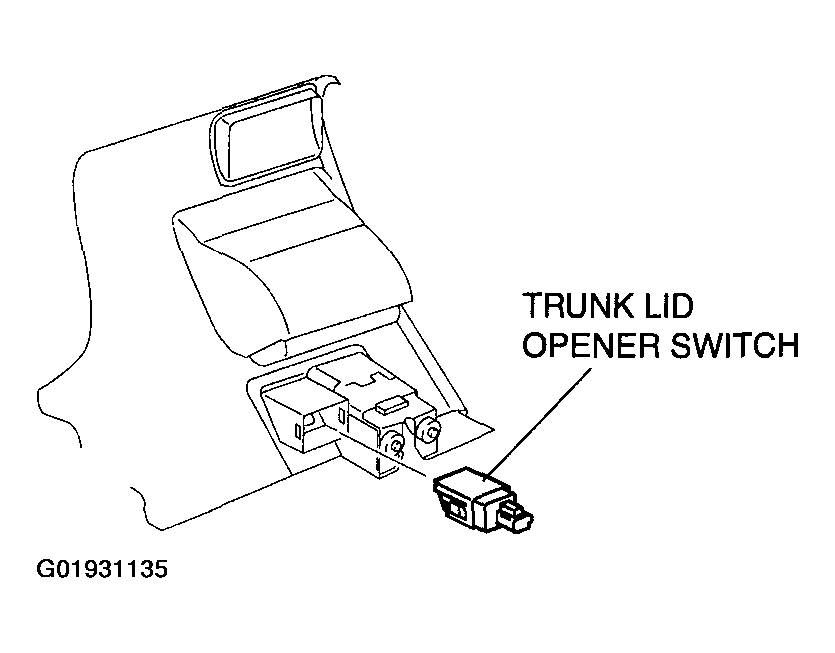

    Fig 1: Removing Trunk Lid Opener Switch
    G01931135Courtesy of MAZDA MOTORS CORP.
