Theft-Deterrent System Location Index

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

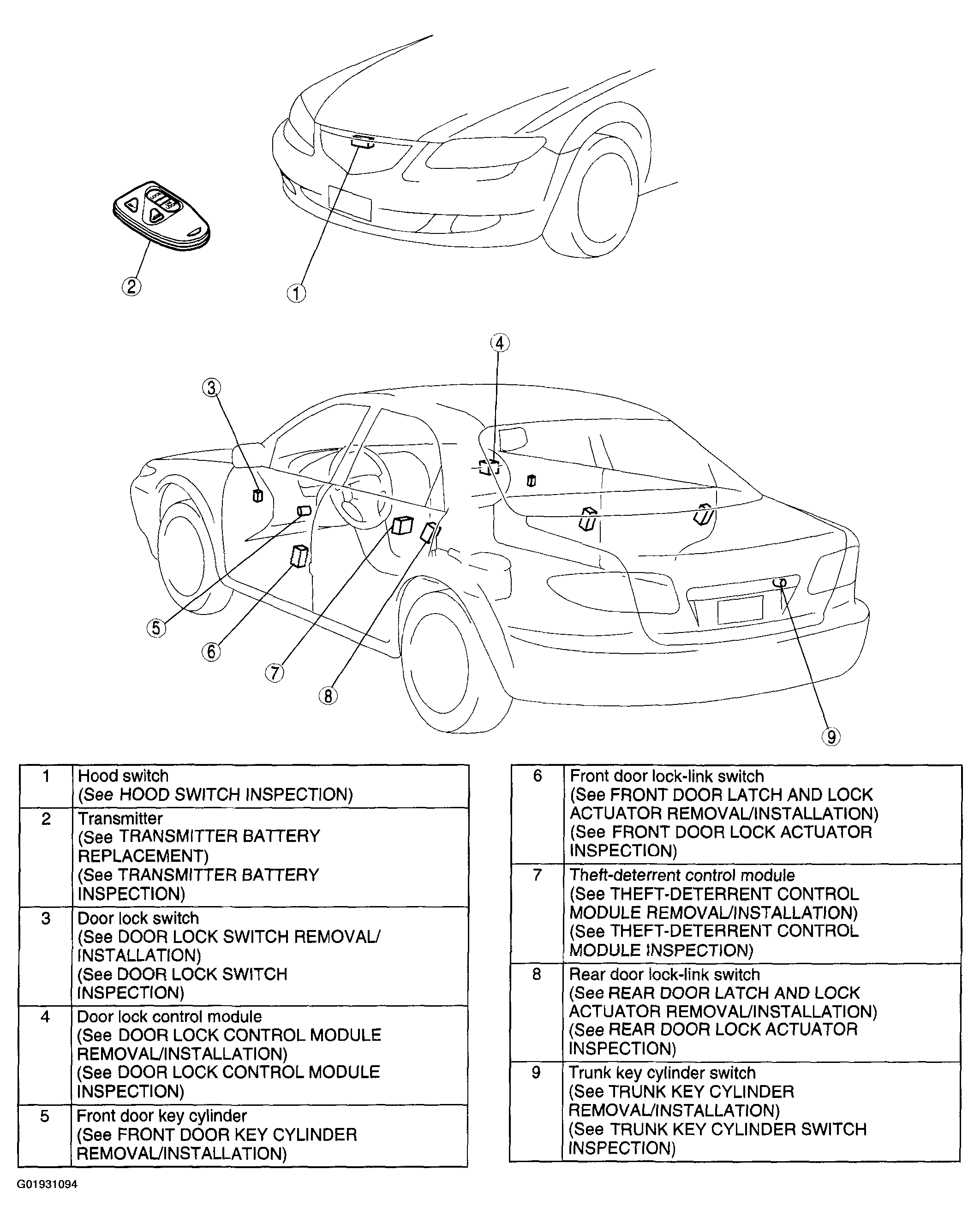

Fig 1: Identifying Theft-Deterrent System Components Location
G01931094Courtesy of MAZDA MOTORS CORP.
