Fuel-Filler Lid And Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

To remove the fuel-filler lid opener, remove the left side trunk side trim.
To remove the fuel-filler lid opener cable, perform the following and partially peel back the floor covering.
1. Remove the driver-side front seat.
2. Remove the driver-side front scuff plate.
3. Remove the driver-side rear scuff plate.
4. Remove the driver-side B-pillar lower trim.
5. Remove the driver-side tire house trim.
Remove in the order indicated in the figure below.

Fig 1: Fuel-Filler Lid And Opener Removal Order Table
Courtesy of MAZDA MOTORS CORP.

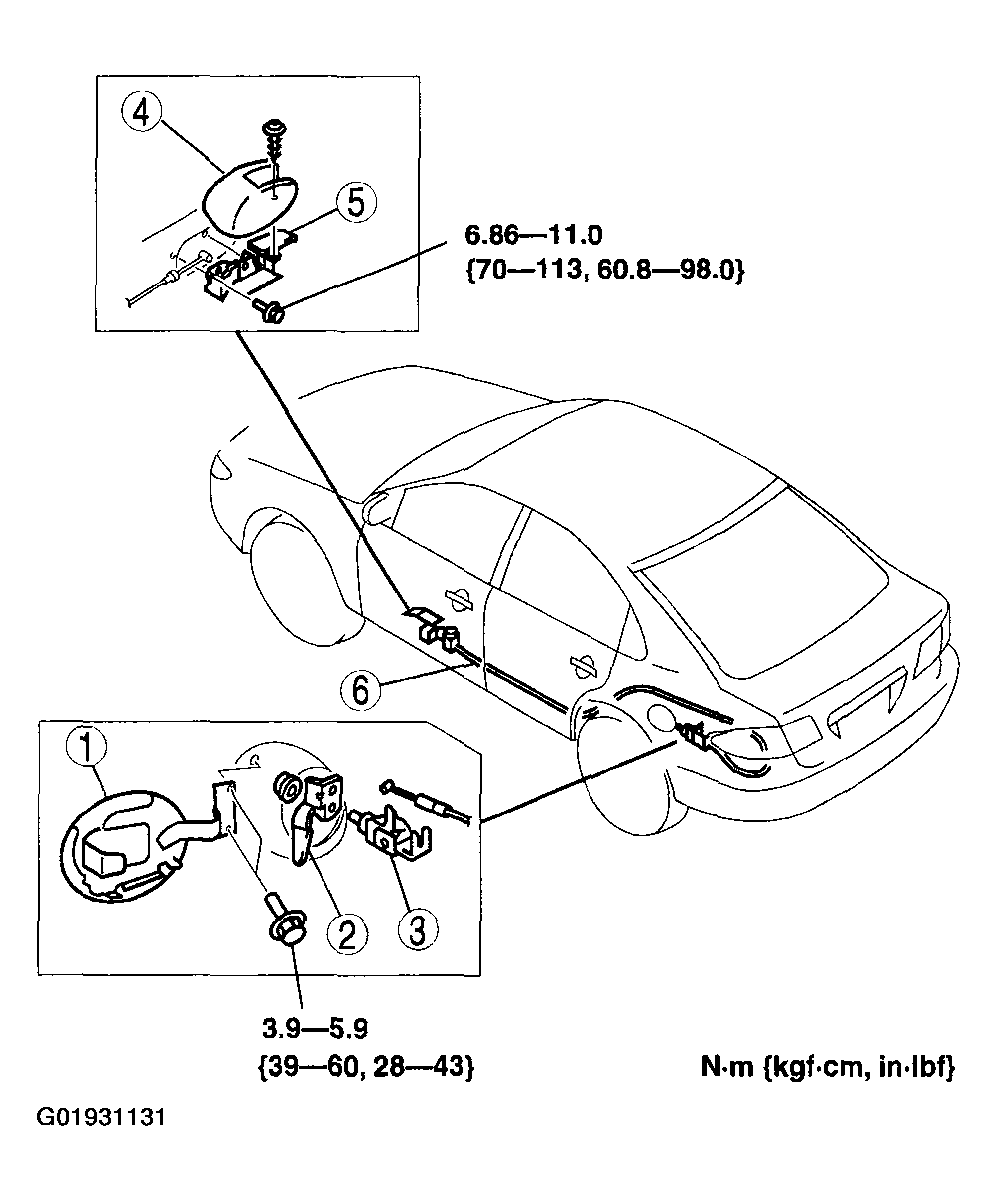

Fig 2: Installing Fuel-Filler Lid And Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
