Door Lock Switch Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner handle cover. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the door lock switch.
  4. Install in the reverse order of removal.

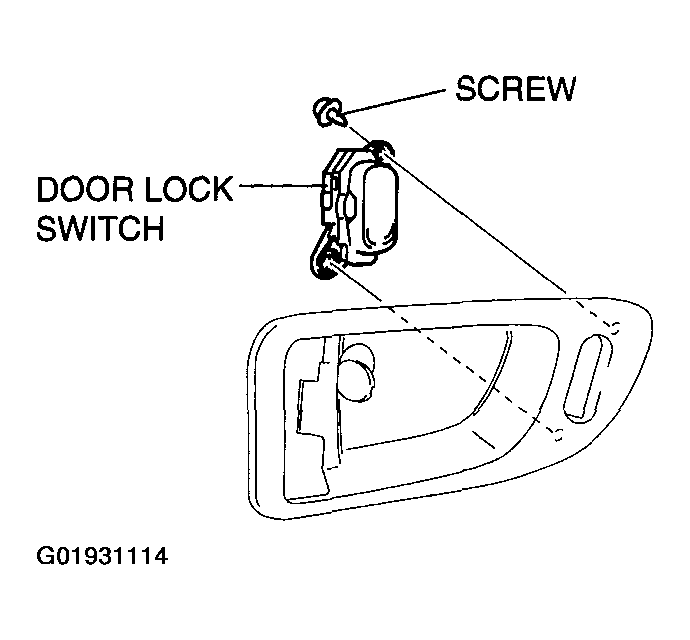

    Fig 1: Removing Door Lock Switch Screws
    G01931114Courtesy of MAZDA MOTORS CORP.
