Diagnostic Monitoring Test Results Access Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Access to the diagnostic monitoring test results and read the test results using the WDS or equivalent.

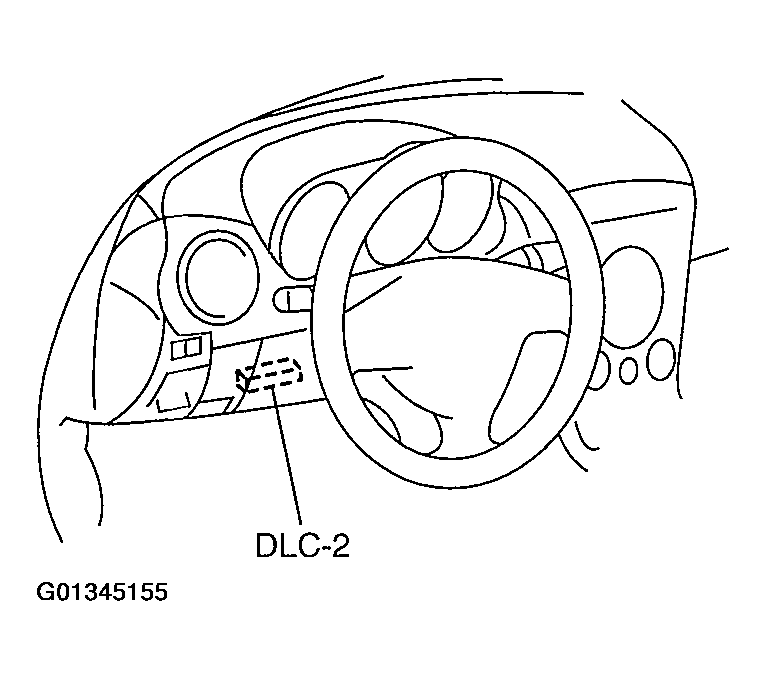

    Fig 1: Accessing Diagnostic Monitoring Test Results
    G01345155Courtesy of MAZDA MOTORS CORP.
