DTC Reading Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Retrieve the DTCs using the WDS or equivalent.

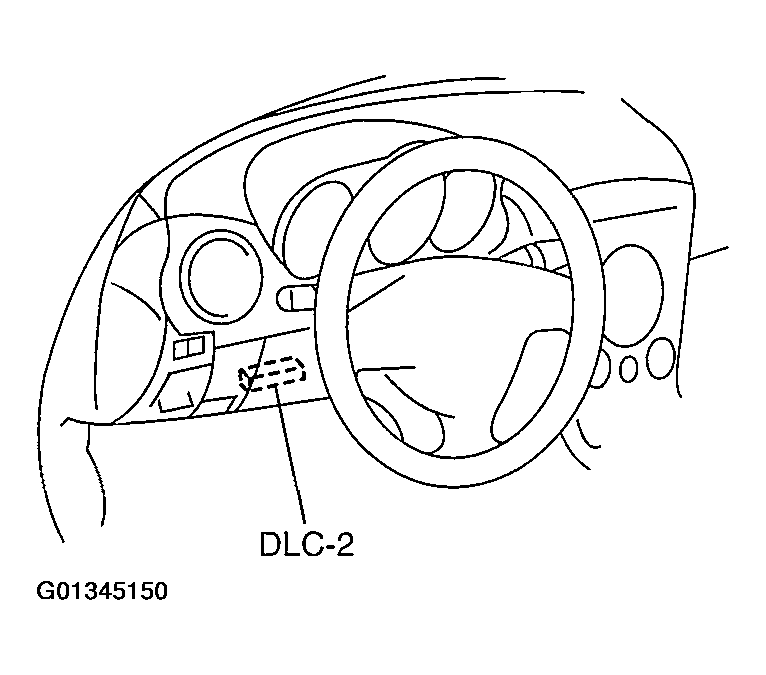

    Fig 1: Retrieving DTCs Using WDS Or Equivalent
    G01345150Courtesy of MAZDA MOTORS CORP.
