DTC P1574: TP Sensor Output Incongruent

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

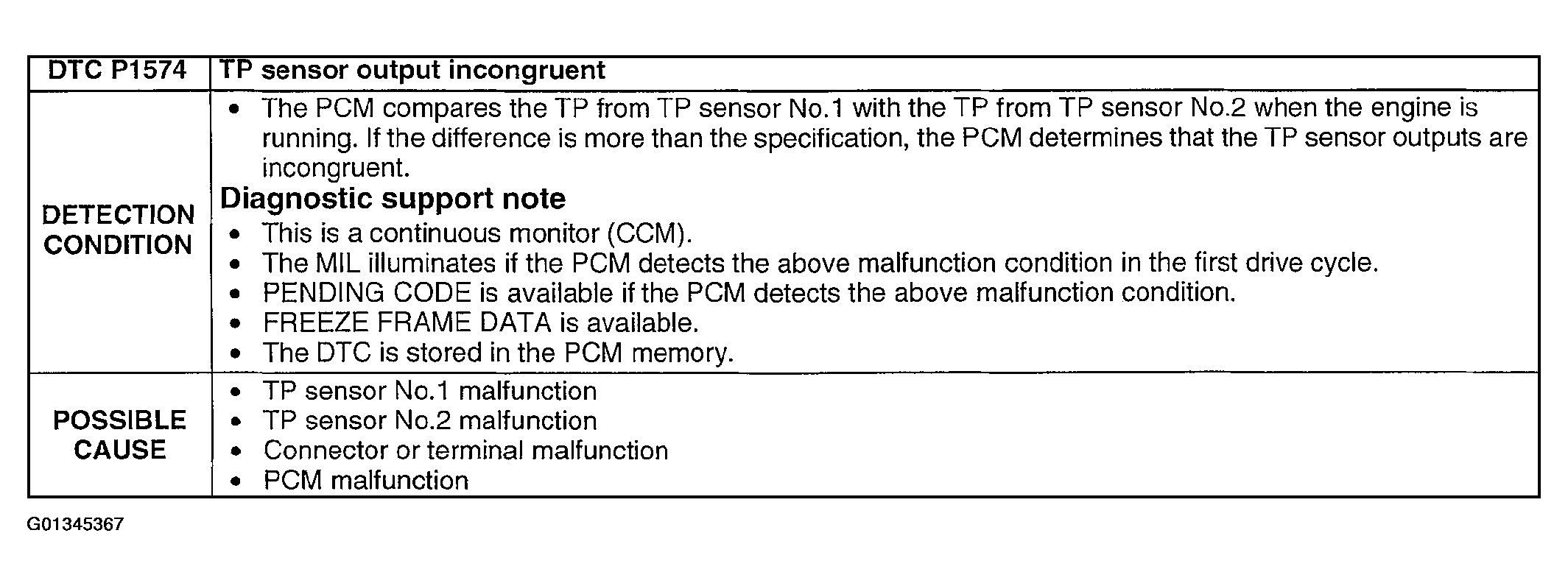

Fig 1: DTC P1574 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

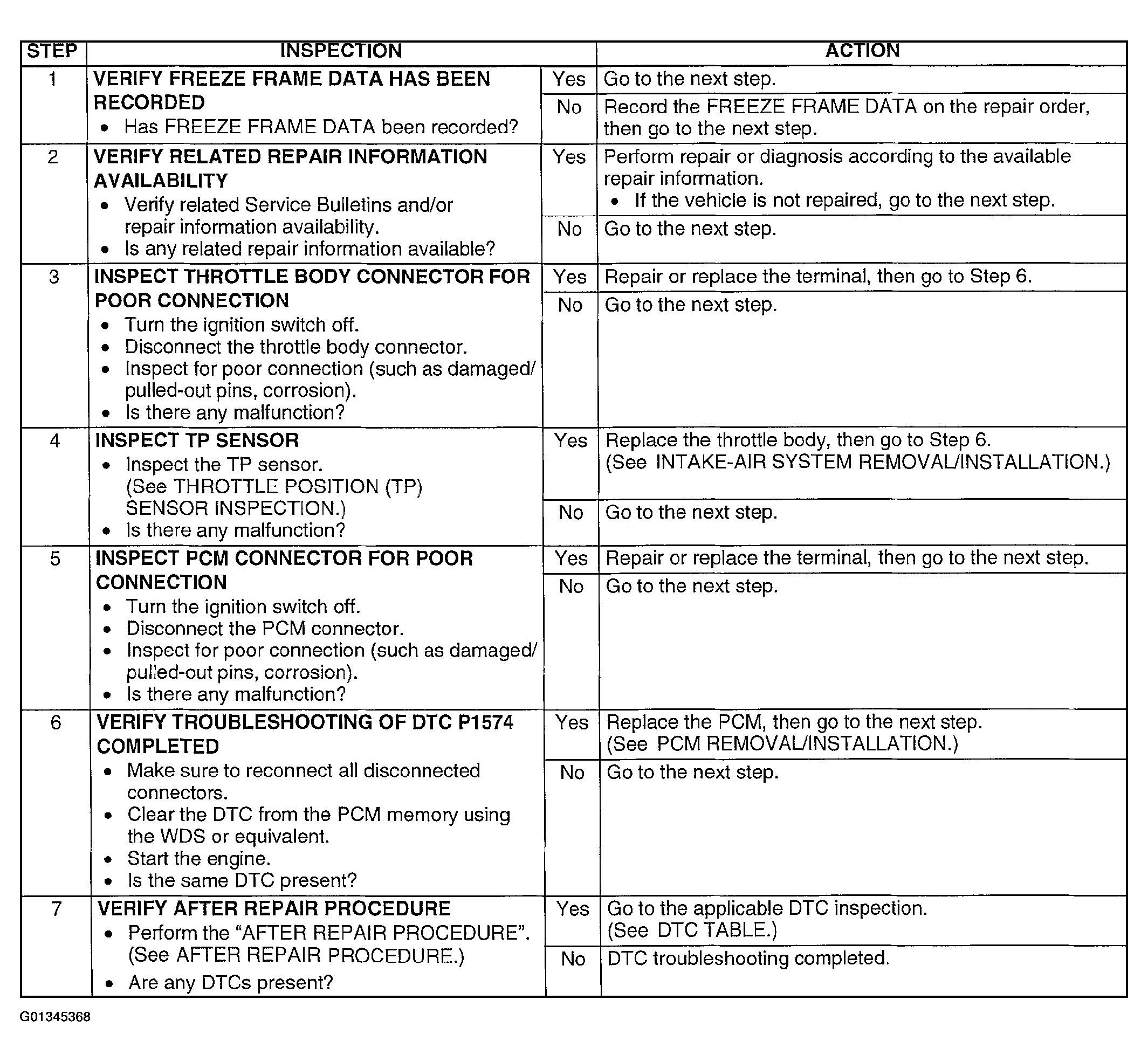

Fig 2: DTC P1574 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
