DTC P0456: EVAP System Leak Detected (Very Small Leak)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

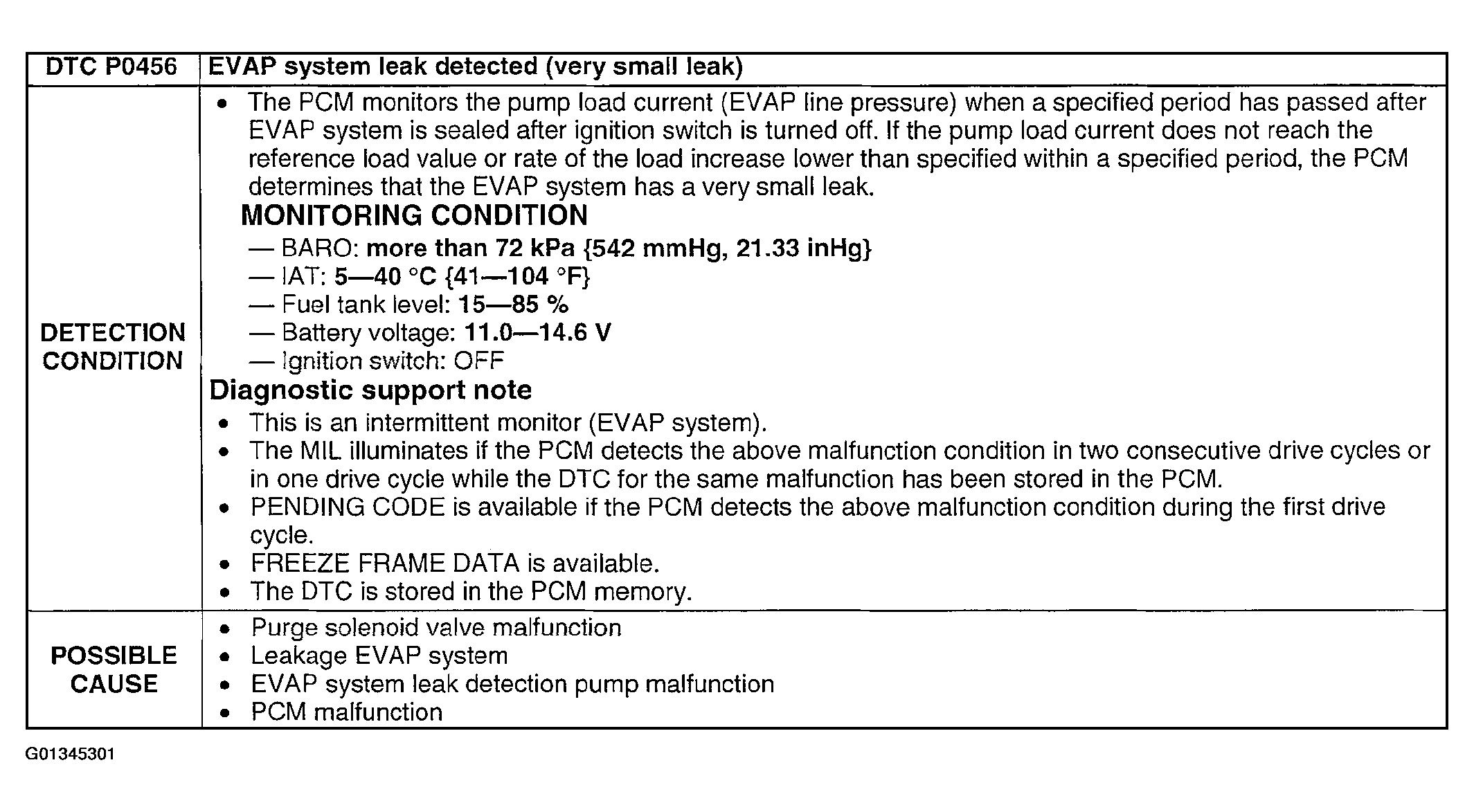

Fig 1: DTC P0456 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

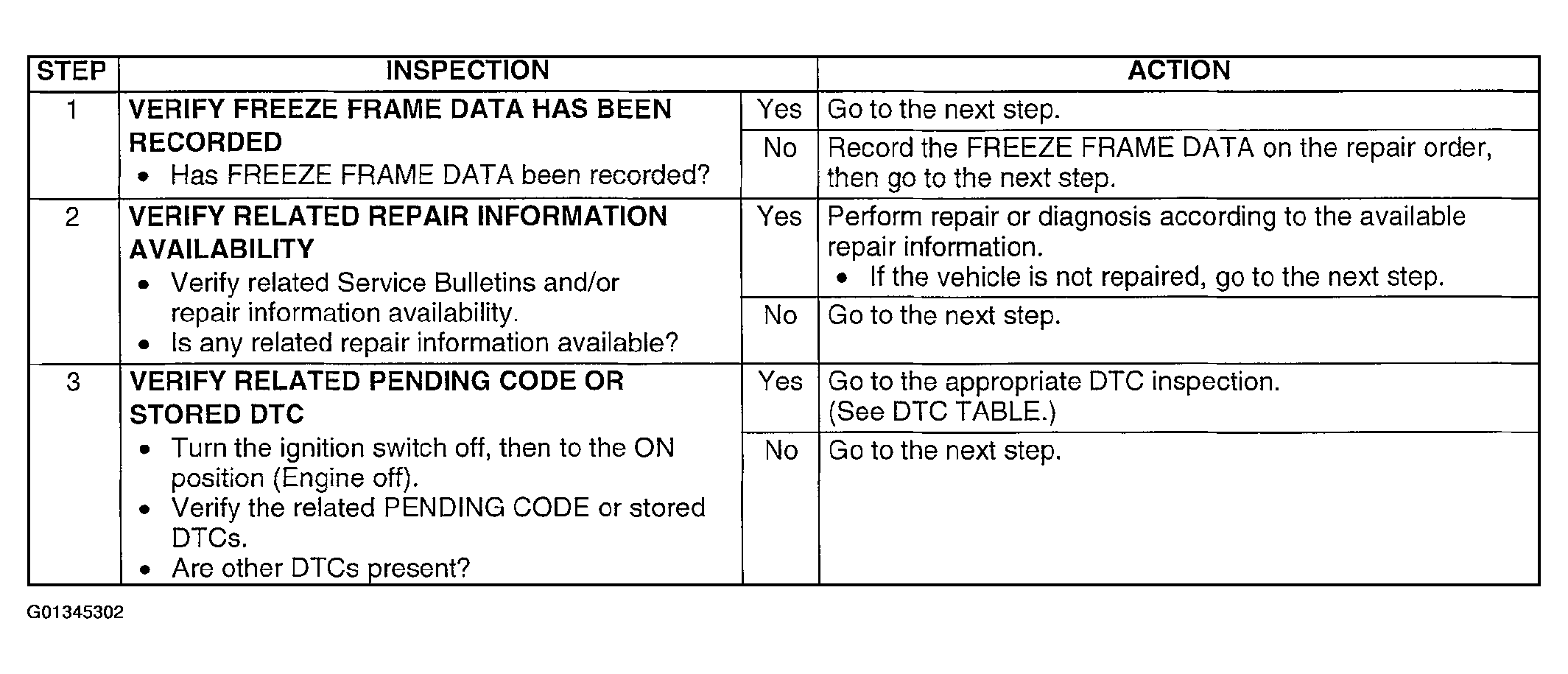

Fig 2: DTC P0456 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: DTC P0456 Diagnostic Procedure Chart (Step 4-11)

Courtesy of MAZDA MOTORS CORP.
