Windshield Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in Fig 1.

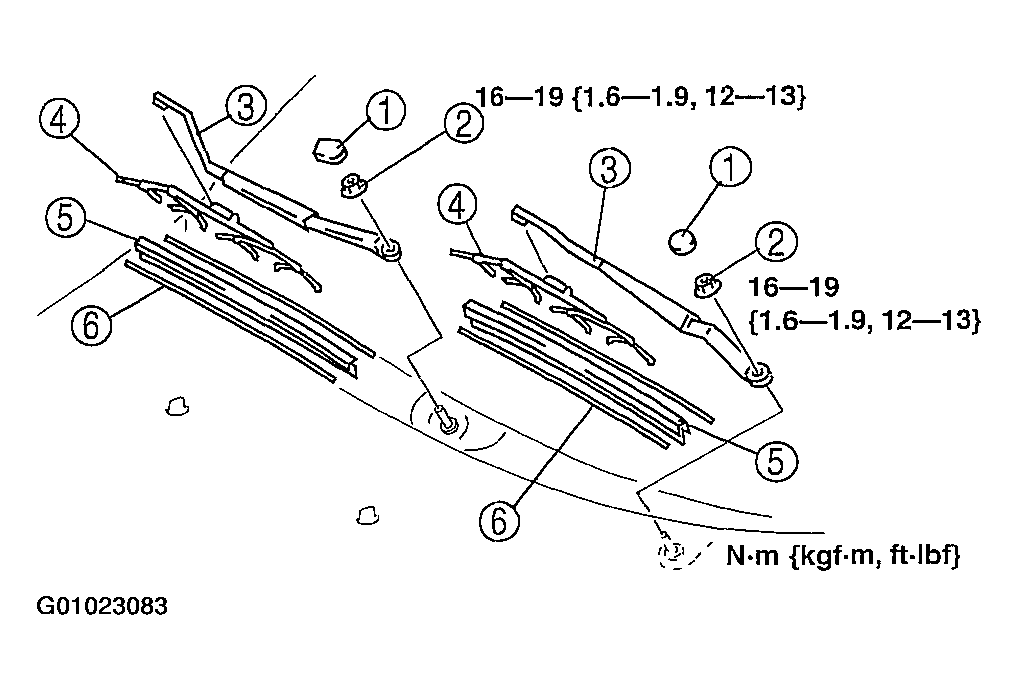

Fig 1: Removal Order Of Windshield Wiper Arm - Blade
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT (+)

Fig 2: Removing/Installing Windshield Wiper Arm - Blade
Courtesy of MAZDA MOTORS CORP.
