Symptom Troubleshooting [Engine Control System AJ]
>>
No. 30 Spark Plug Condition
>>
Diagnostic Procedure
Diagnostic Procedure

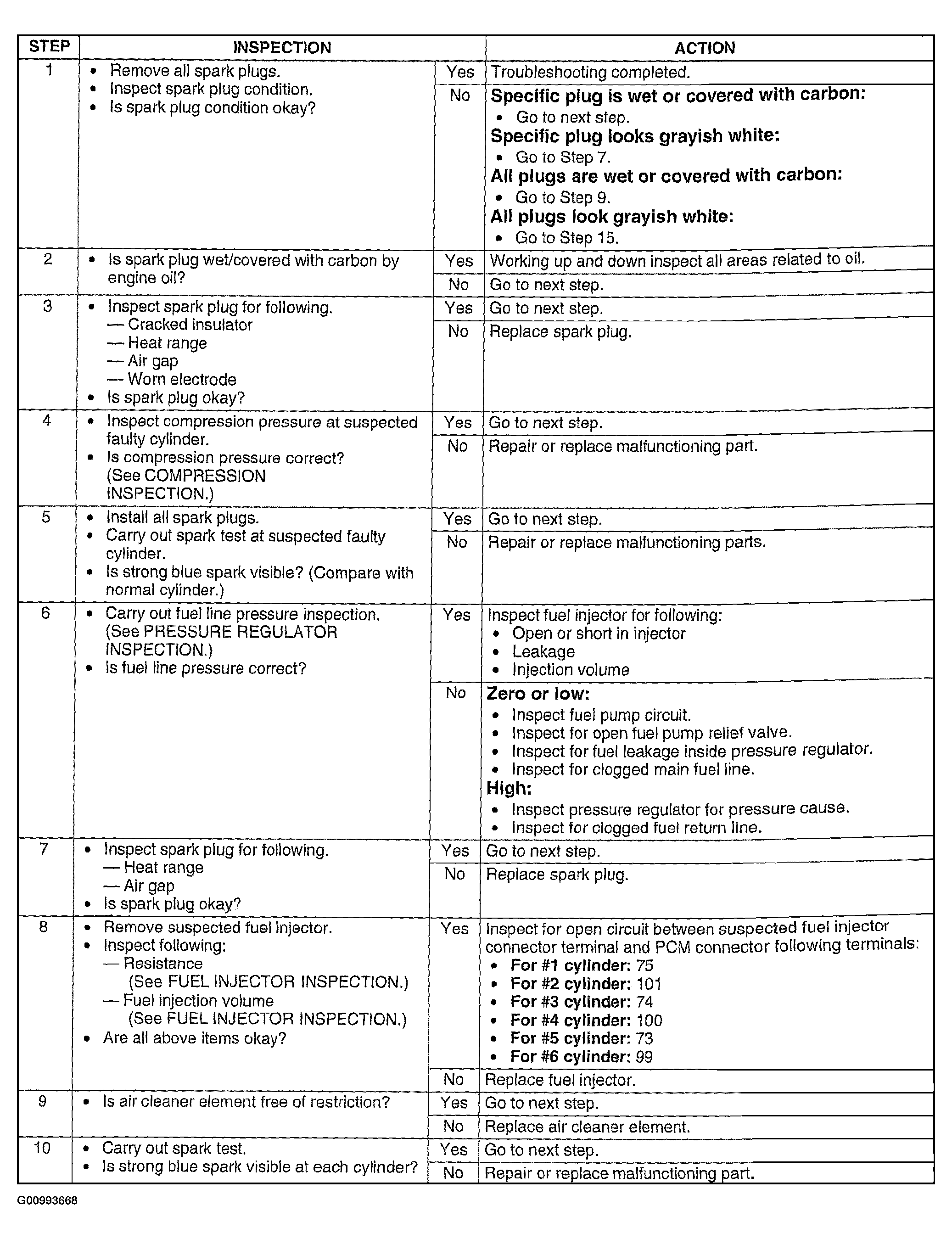

Fig 1: Symptom No.30 Diagnostic Procedure Chart (Step 1-10)
Courtesy of MAZDA MOTORS CORP.

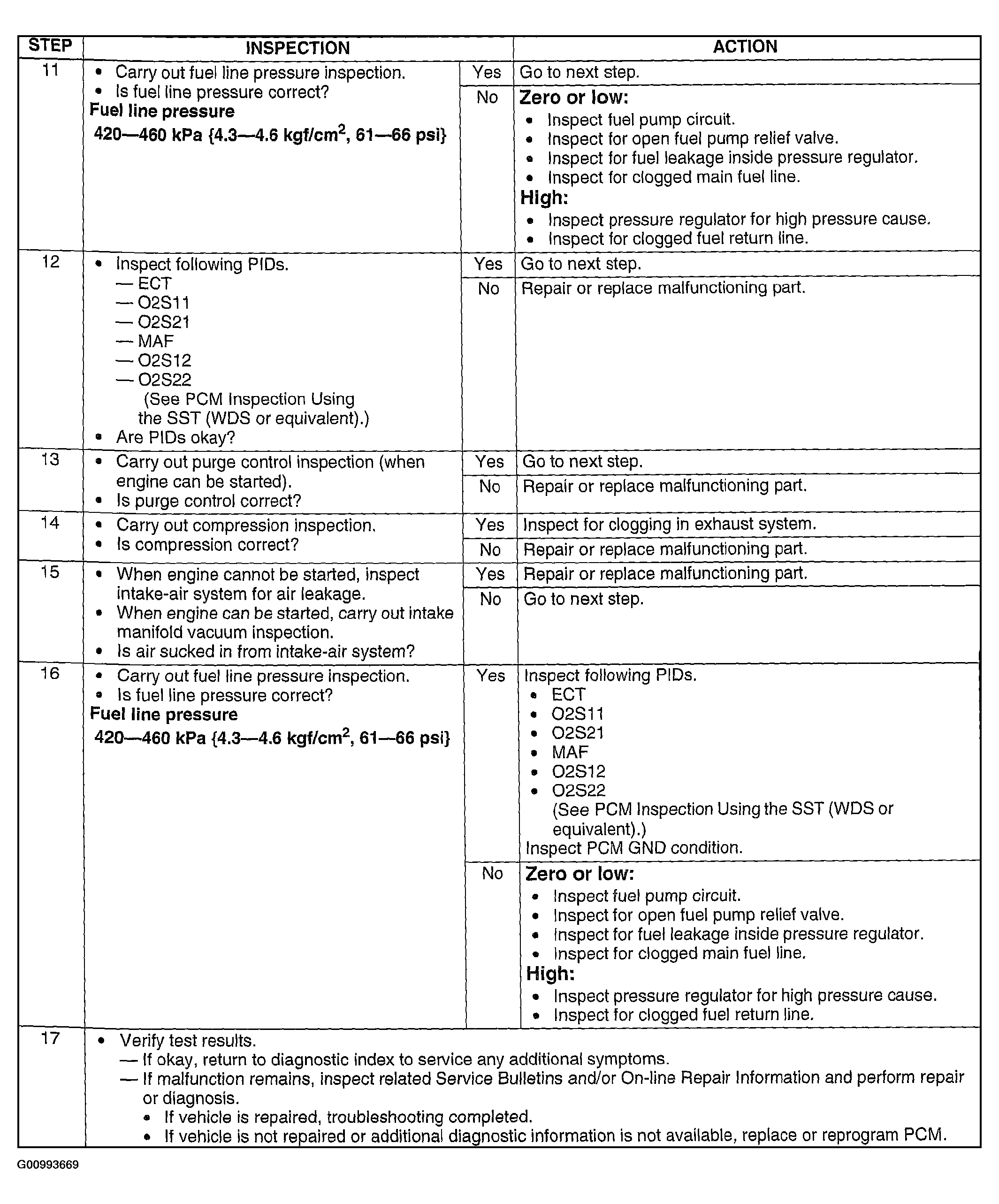

Fig 2: Symptom No.30 Diagnostic Procedure Chart (Step 11-17)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
