Diagnostic Procedure

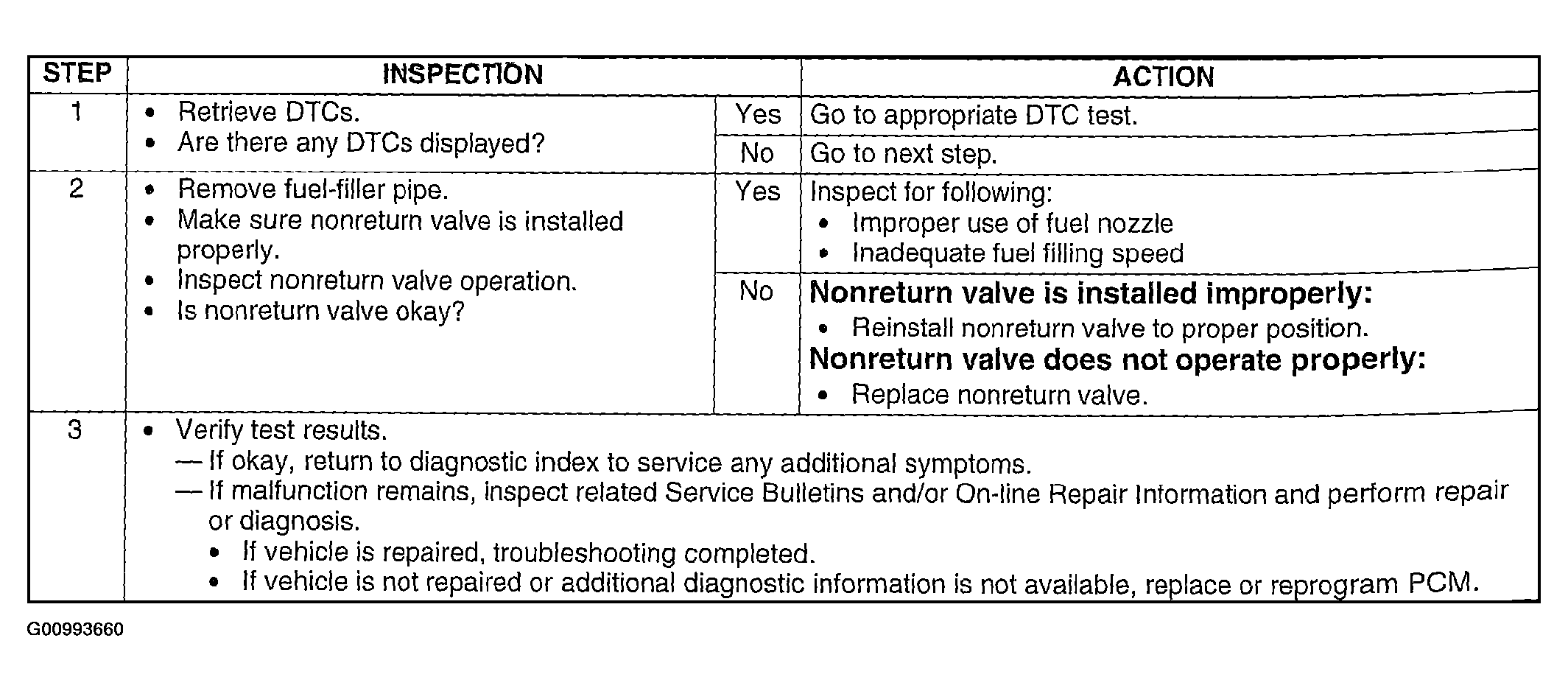

Fig 1: Symptom No.27 Diagnostic Procedure Chart
G00993660Courtesy of MAZDA MOTORS CORP.
