DTC U0101: Pcm Cannot Receive Any Signals From TCM
>>
Diagnostic Procedure
Diagnostic Procedure
Fig 1: DTC U0101 Diagnostic Procedure Chart (Step 1-7)
Courtesy of MAZDA MOTORS CORP.

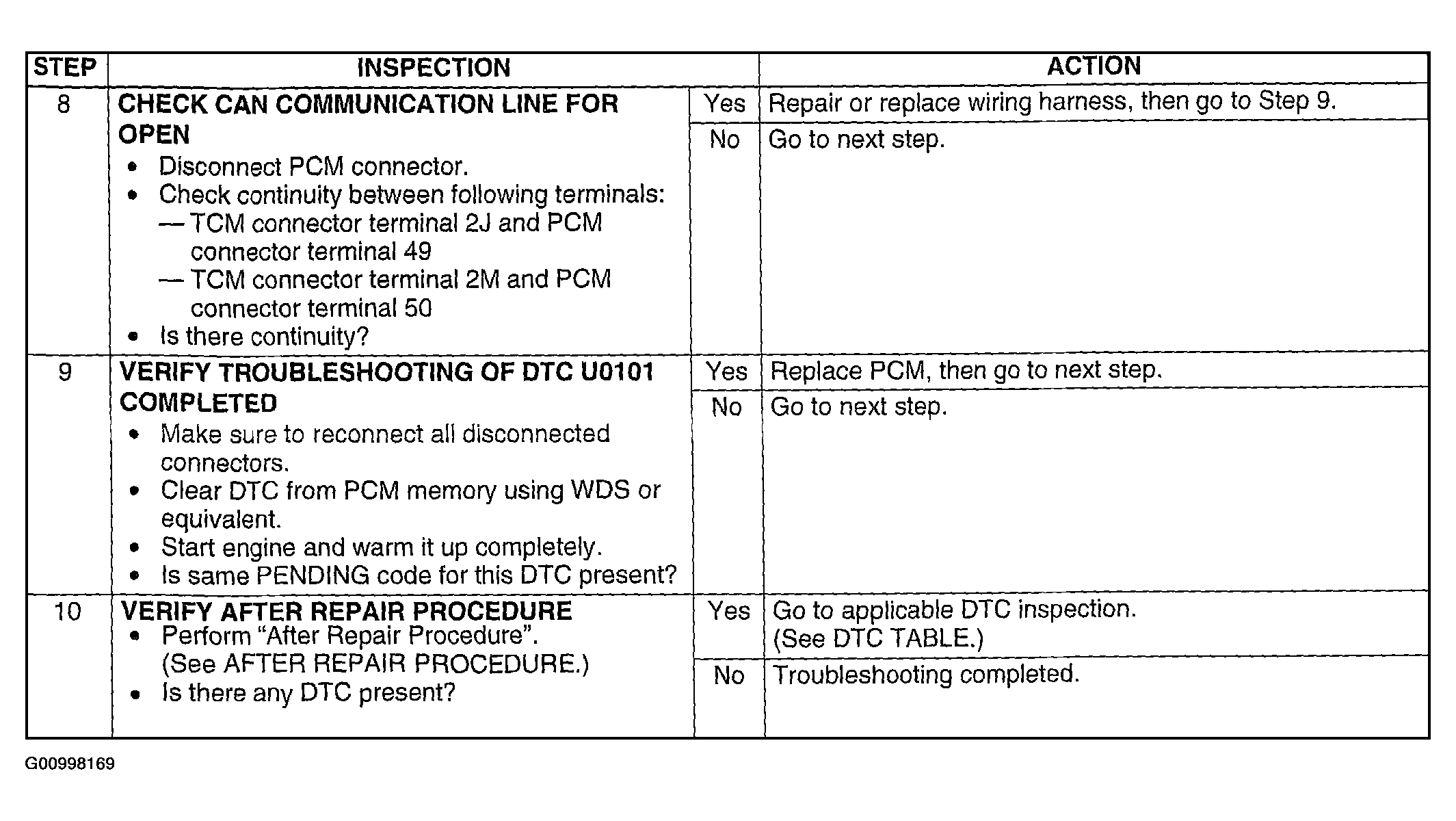

Fig 2: DTC U0101 Diagnostic Procedure Chart (Step 8-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
