DTC U0073: Can Bus Off
>>
Notes
DTC U0073: Can Bus Off: Notes

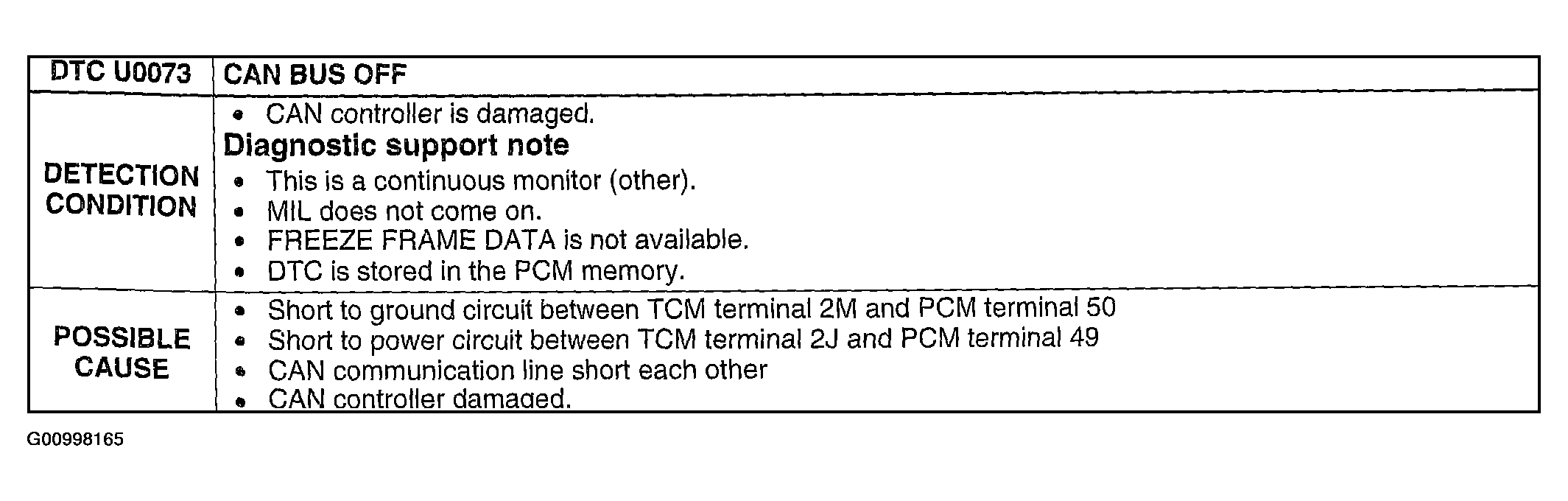

Fig 1: DTC U0073 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
