Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P2402: Evaporative Emissions System Leak Detection Pump Motor Circuit High Input >> Notes

DTC P2402: Evaporative Emissions System Leak Detection Pump Motor Circuit High Input: Notes

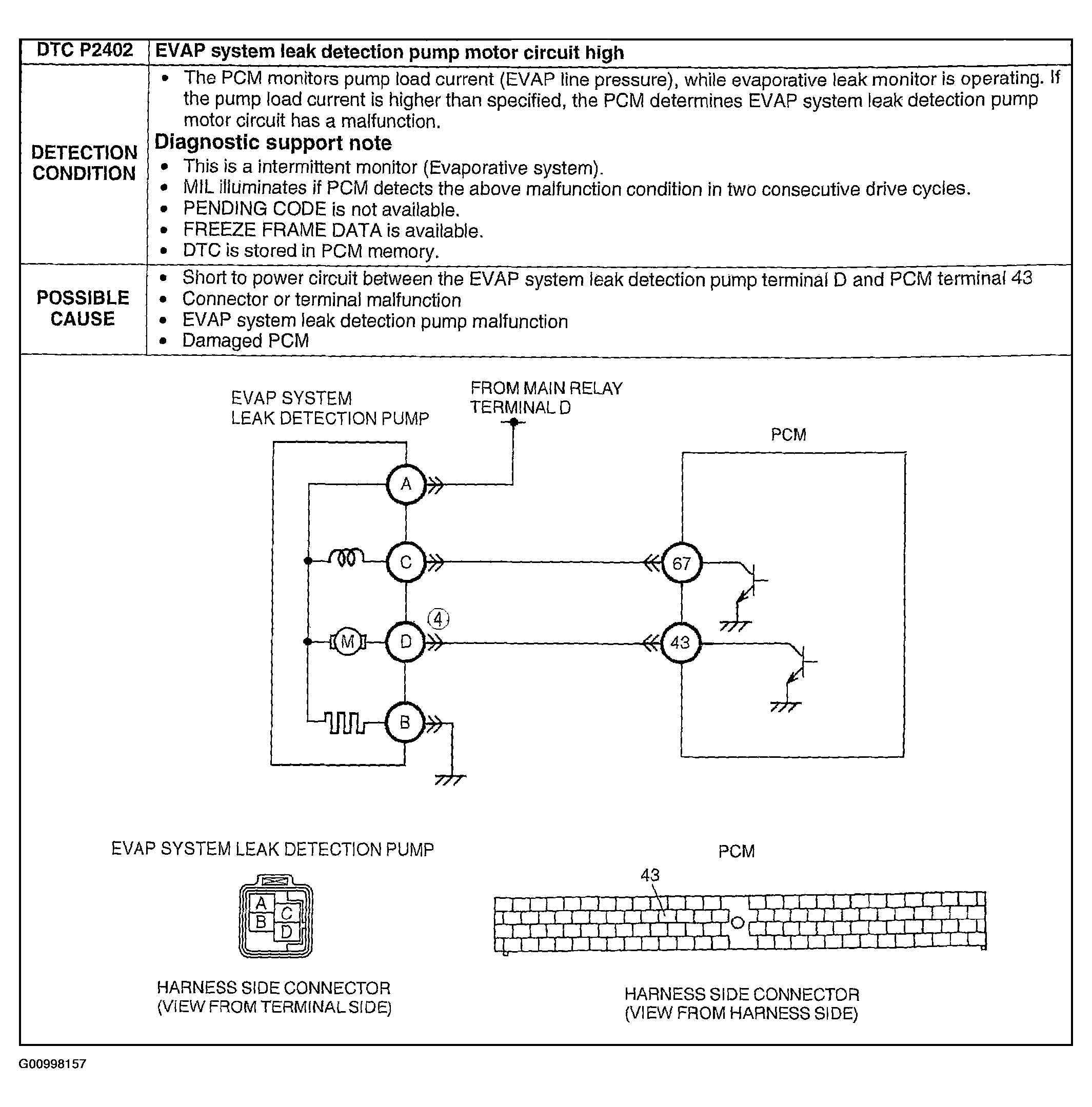

Fig 1: DTC P2402 Detection Condition & Possible Causes Chart

G00998157

Courtesy of MAZDA MOTORS CORP.
