DTC P2401: Evaporative Emissions System Leak Detection Pump Motor Circuit Low Input: Notes

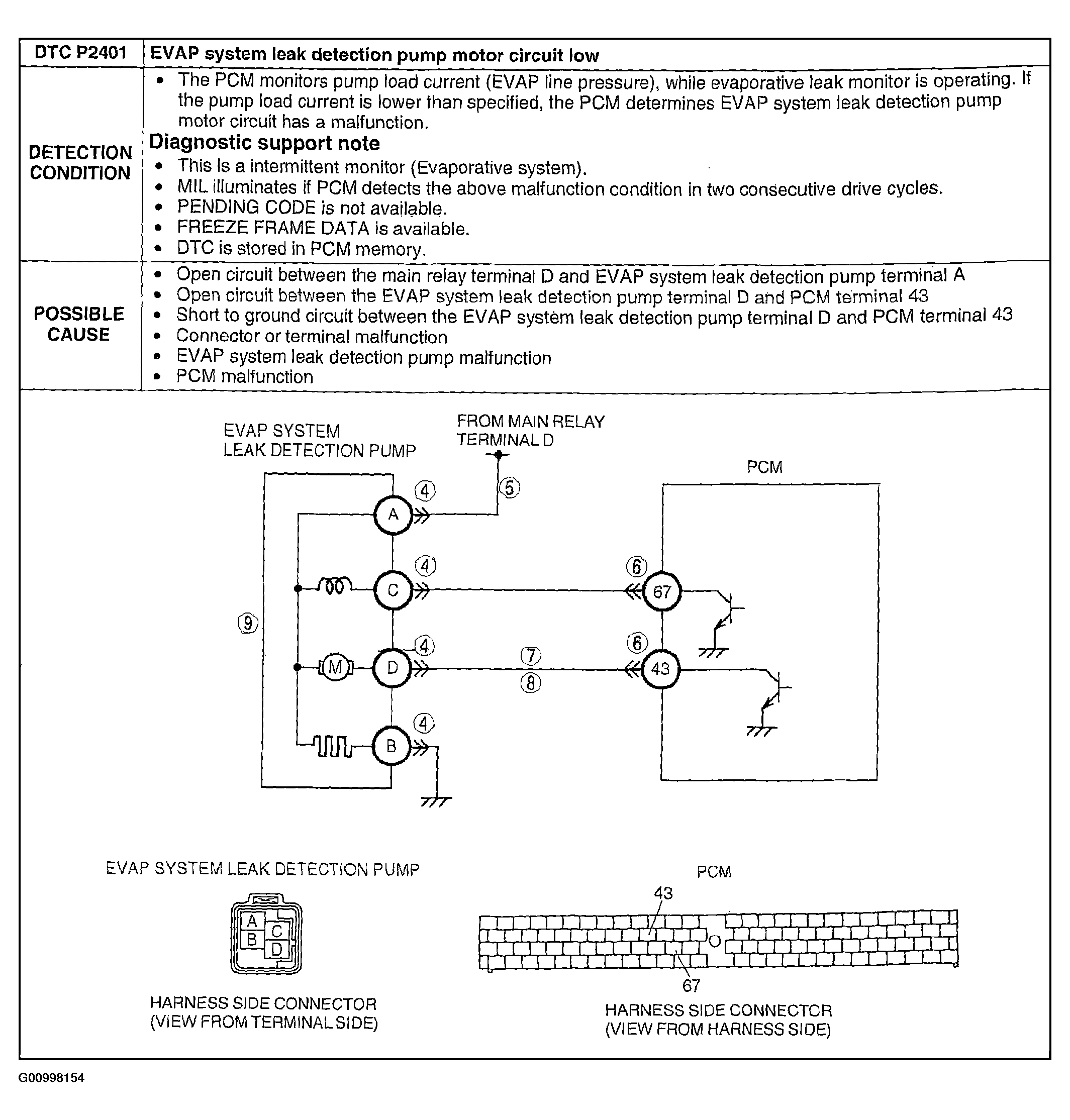

Fig 1: DTC P2401 Detection Condition & Possible Causes Chart

G00998154

Courtesy of MAZDA MOTORS CORP.
