DTC P2401: Evaporative Emissions System Leak Detection Pump Motor Circuit Low Input
>>
Diagnostic Procedure
Diagnostic Procedure

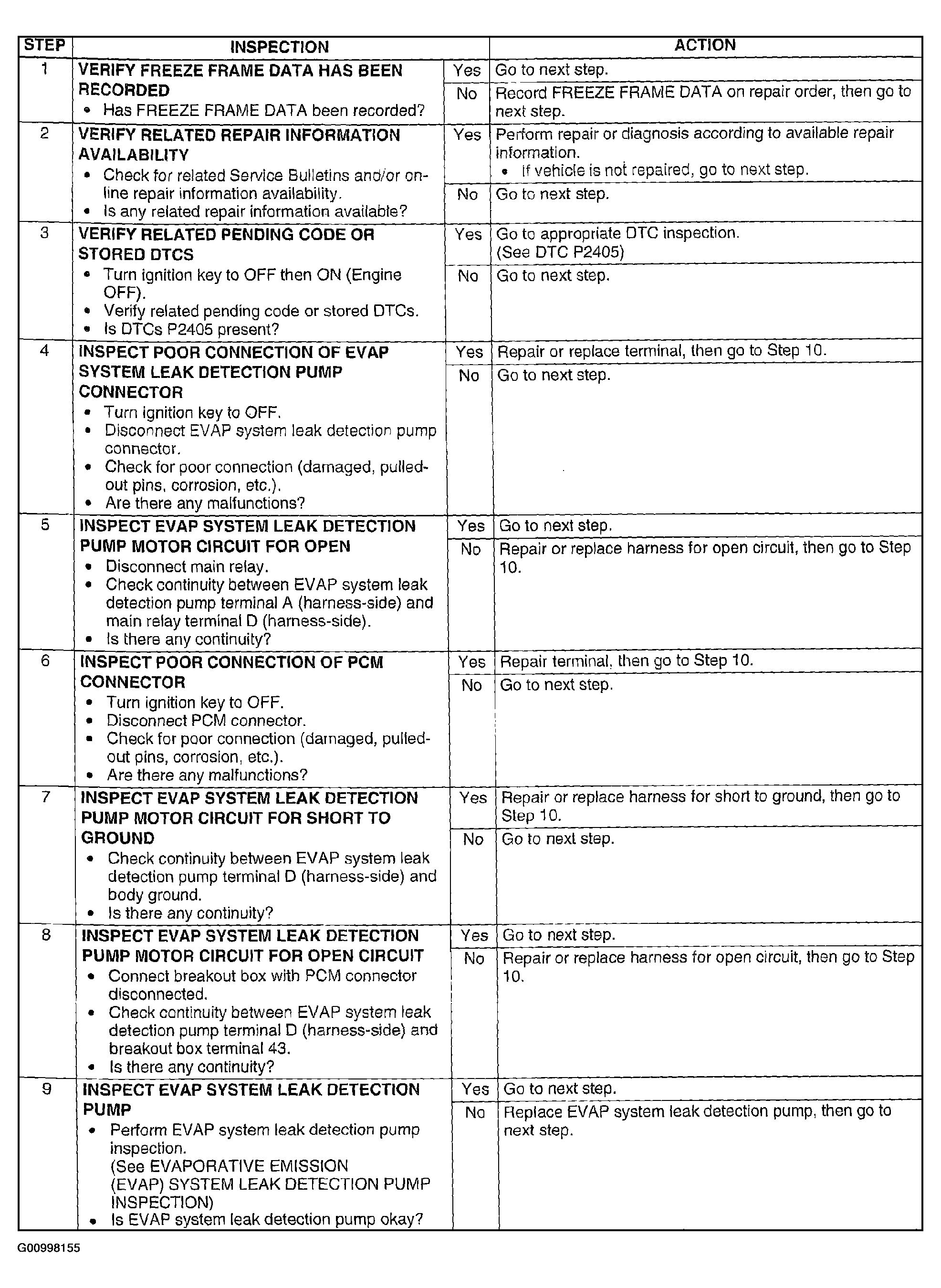

Fig 1: DTC P2401 Diagnostic Procedure Chart (Step 1-9)
Courtesy of MAZDA MOTORS CORP.

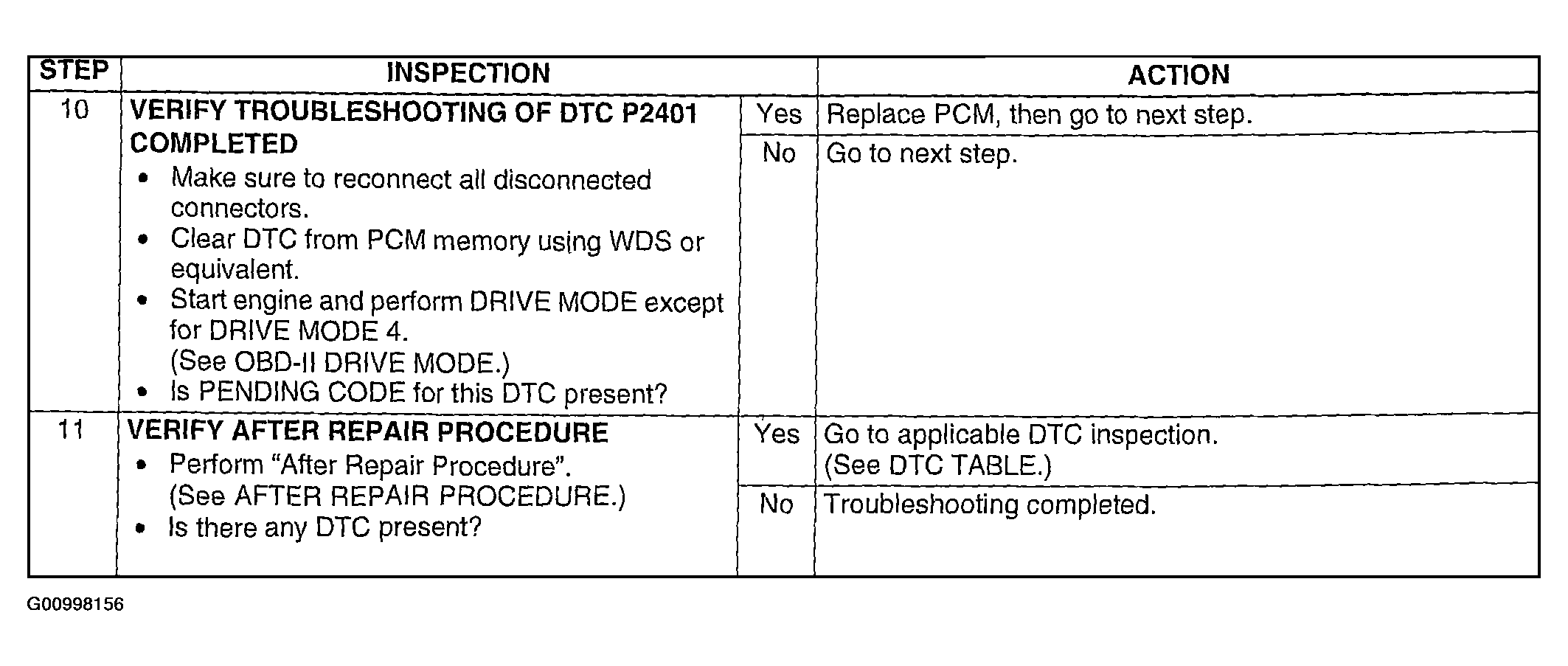

Fig 2: DTC P2401 Diagnostic Procedure Chart (Step 10-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
