DTC P1634: Generator Terminal B Circuit Open
>>
Diagnostic Procedure
Diagnostic Procedure

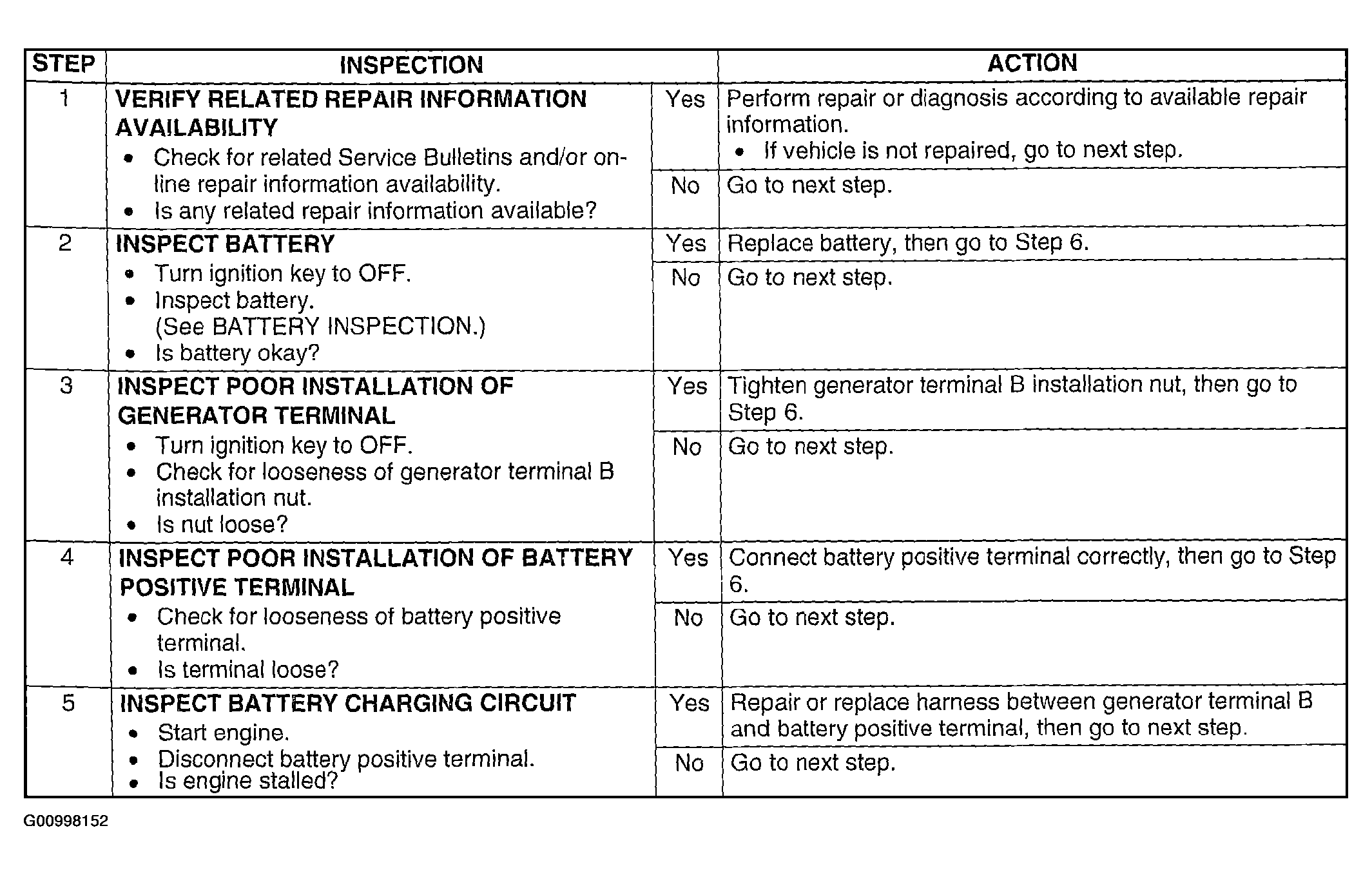

Fig 1: DTC P1634 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

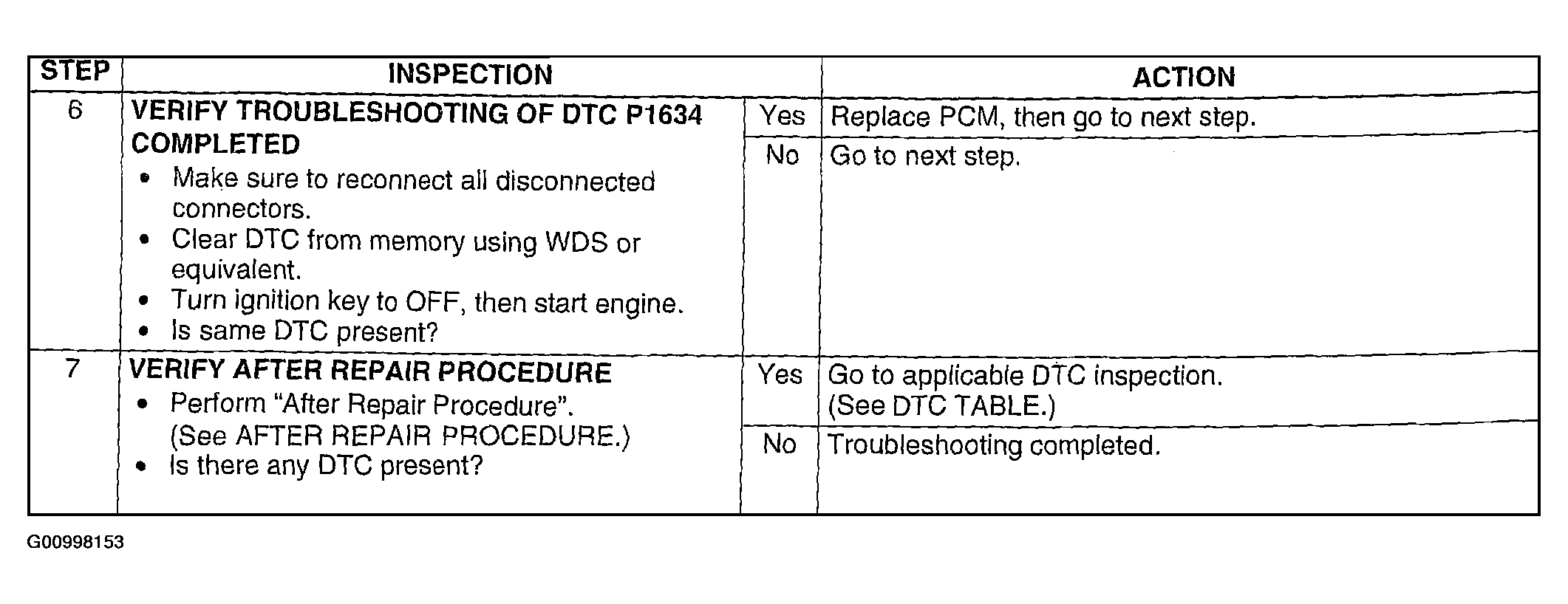

Fig 2: DTC P1634 Diagnostic Procedure Chart (Step 6-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
