Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P1631:GRNERATOR Output Signal No Electricity >> Notes

DTC P1631:GRNERATOR Output Signal No Electricity: Notes

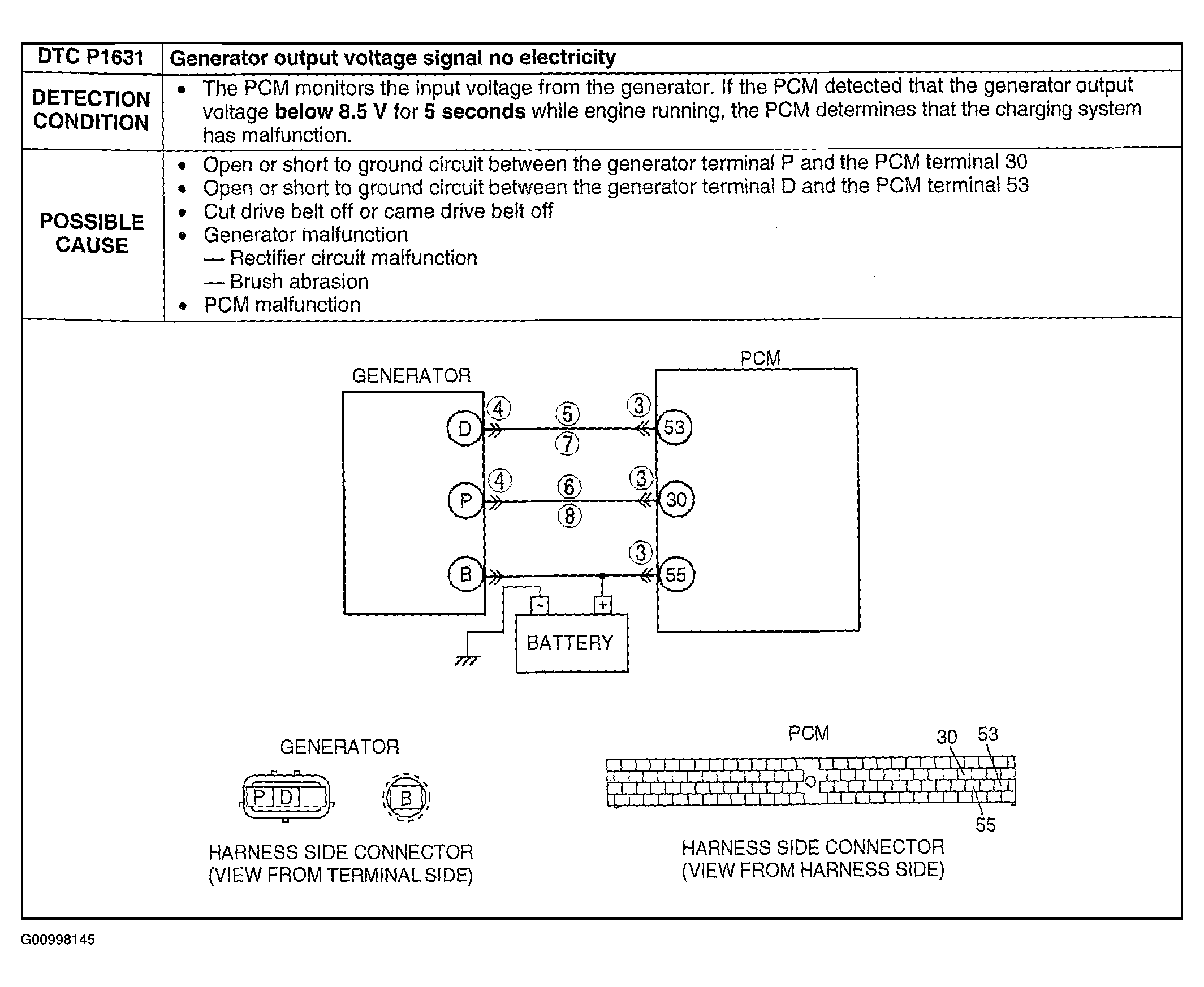

Fig 1: DTC P1631 Detection Condition & Possible Causes Chart

G00998145

Courtesy of MAZDA MOTORS CORP.
