Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P1602: Immobilizer Unit-Pcm Communication Error >> Notes

DTC P1602: Immobilizer Unit-Pcm Communication Error: Notes

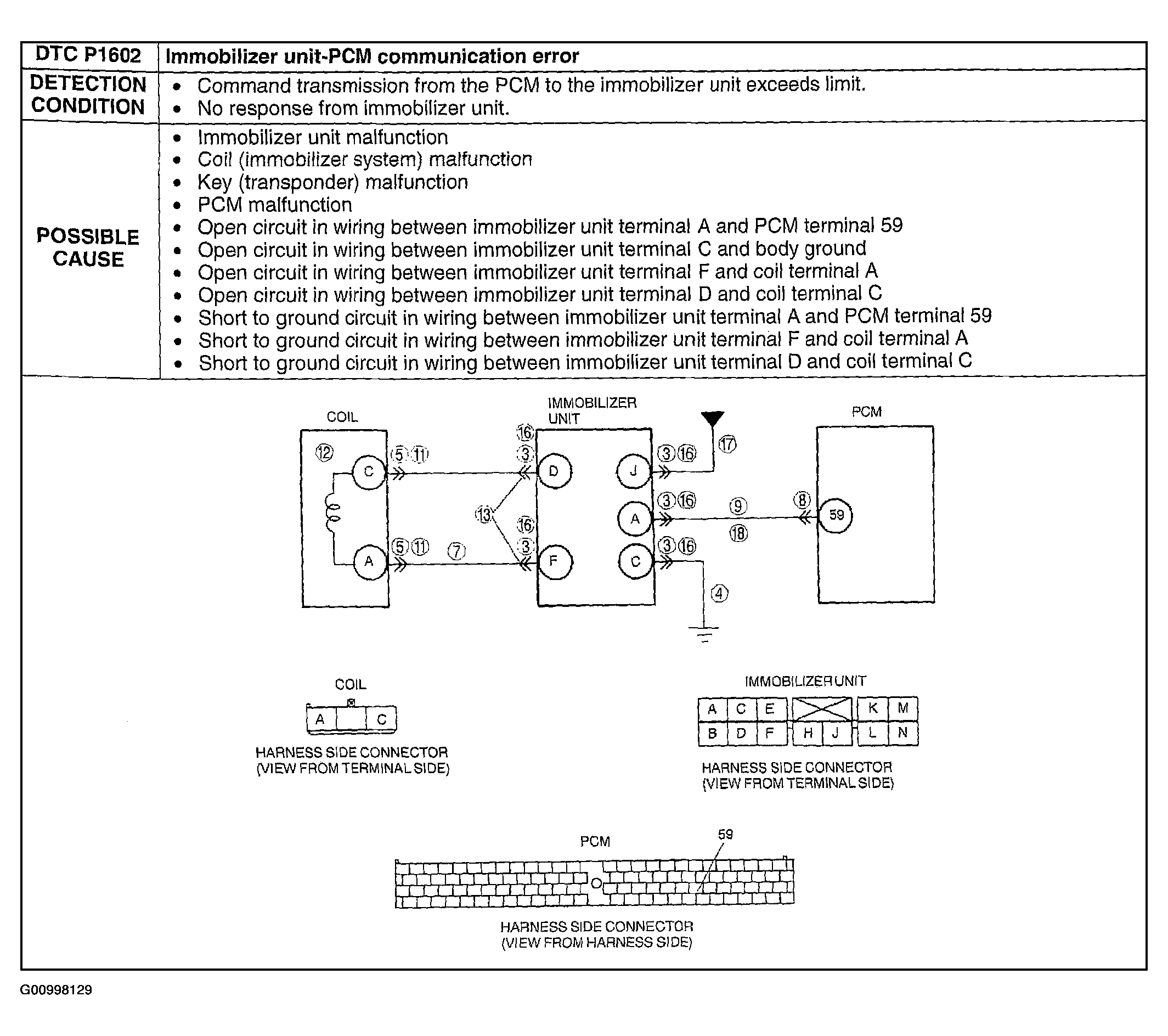

Fig 1: DTC P1602 Detection Condition & Possible Causes Chart

G00998129

Courtesy of MAZDA MOTORS CORP.
