DTC P1602: Immobilizer Unit-Pcm Communication Error
>>
Diagnostic Procedure
Diagnostic Procedure

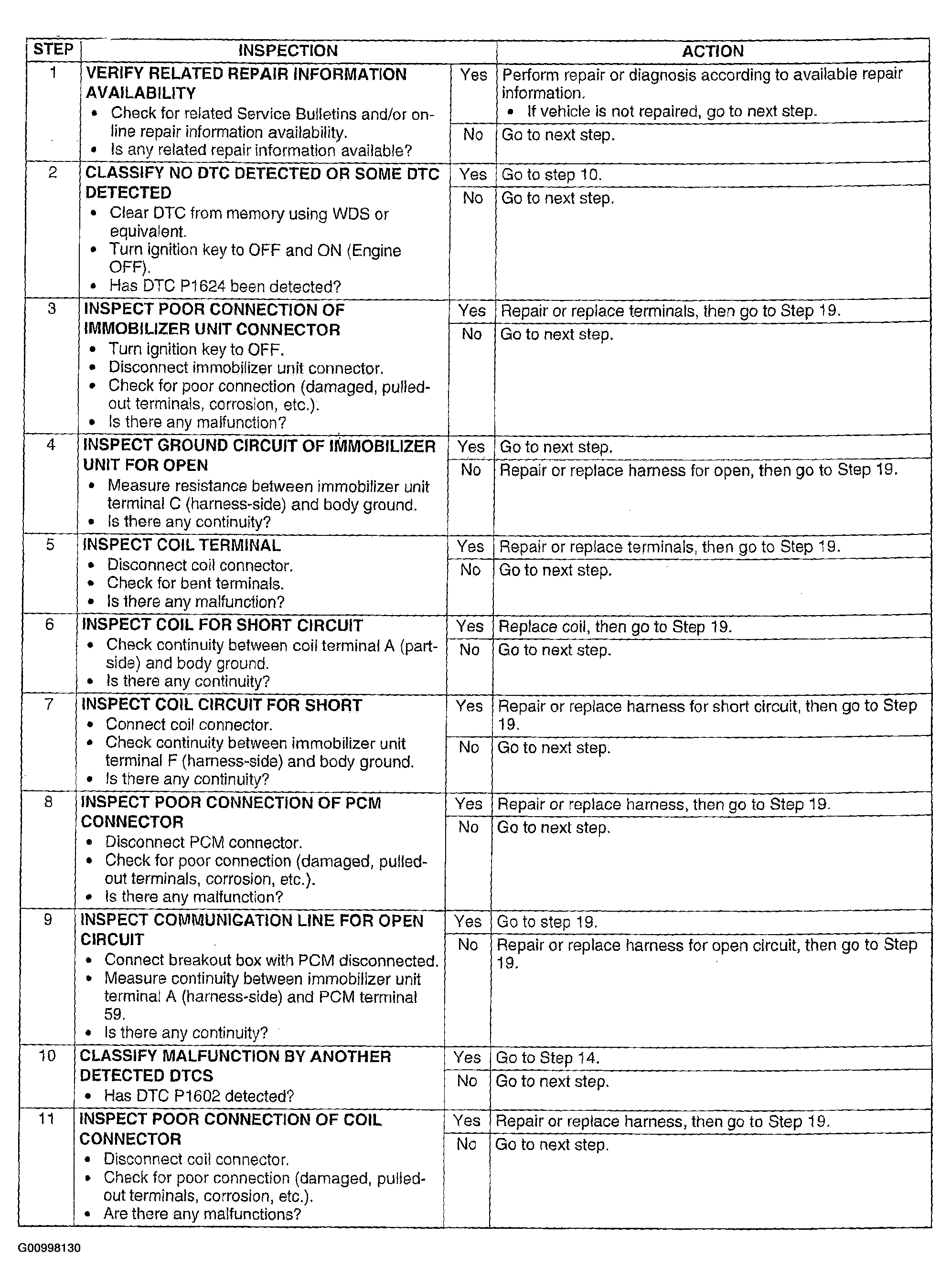

Fig 1: DTC P1602 Diagnostic Procedure Chart (Step 1-11)
Courtesy of MAZDA MOTORS CORP.

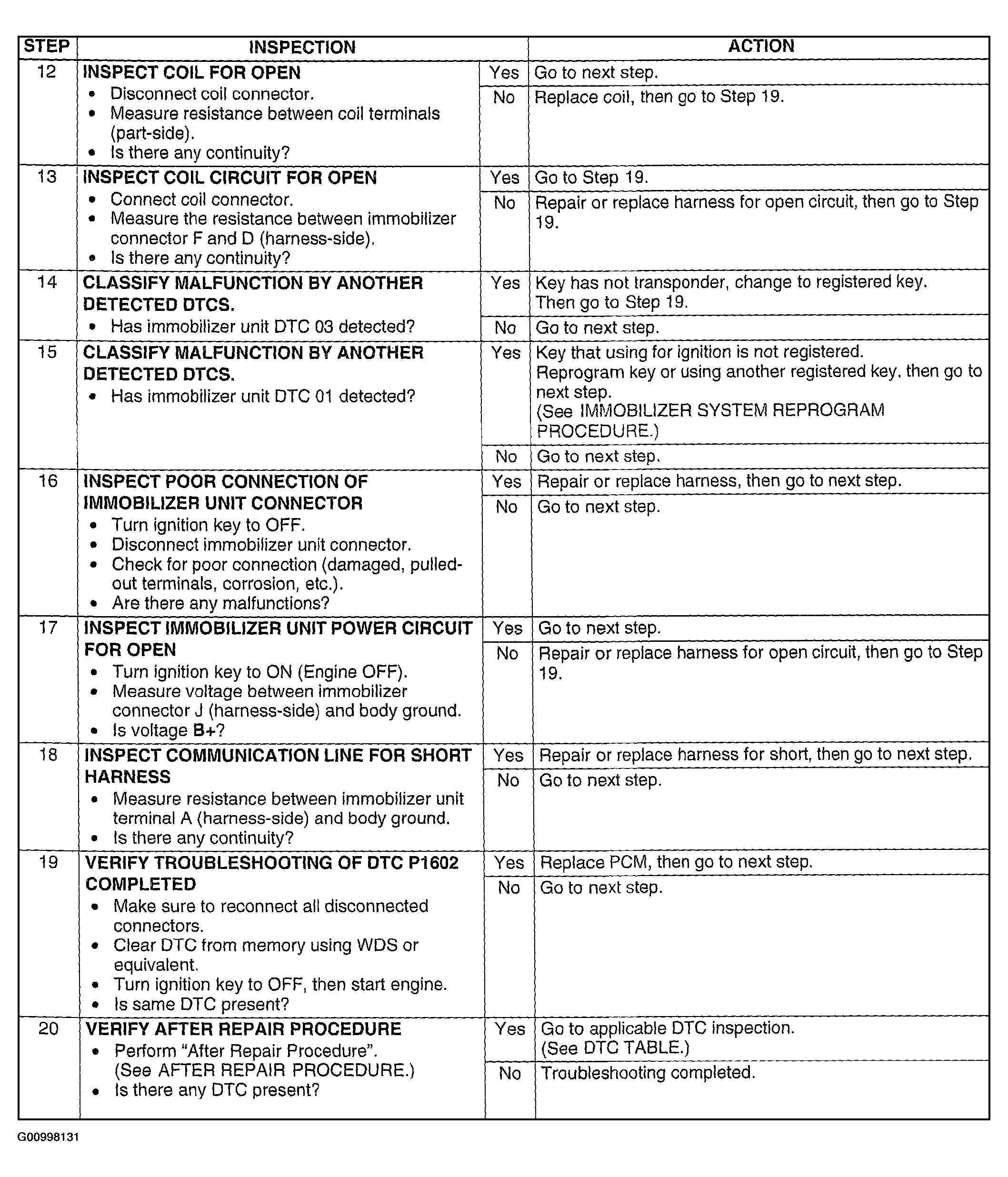

Fig 2: DTC P1602 Diagnostic Procedure Chart (Step 12-20)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
