Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P1487: EGR Boost Sensor Solenoid Valve Circuit Malfunction >> Notes

DTC P1487: EGR Boost Sensor Solenoid Valve Circuit Malfunction: Notes

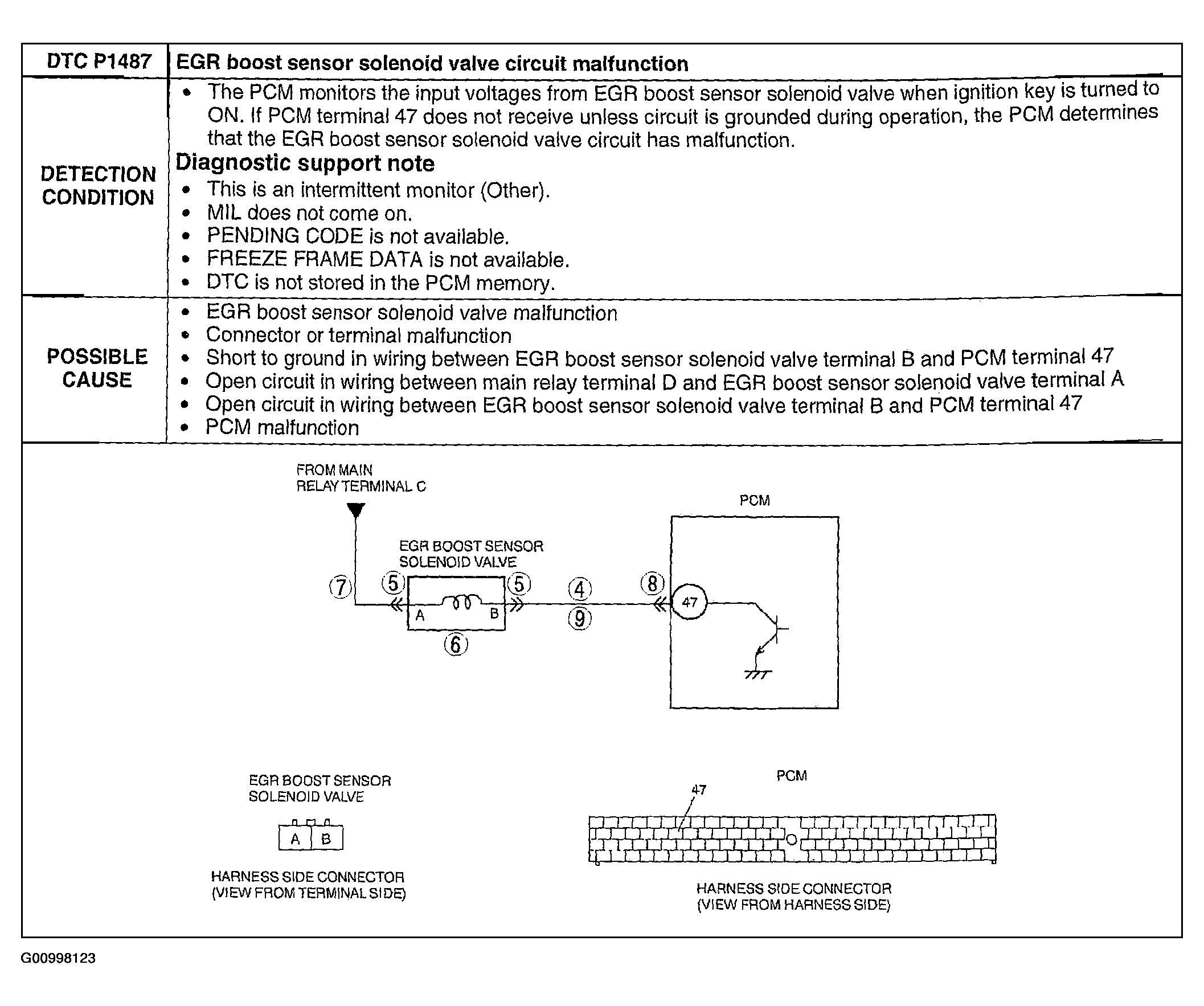

Fig 1: DTC P1487 Detection Condition & Possible Causes Chart

G00998123

Courtesy of MAZDA MOTORS CORP.
