DTC P0660: Intake Manifold Communication Control (IMCC) Circuit Malfunction
>>
Diagnostic Procedure
Diagnostic Procedure

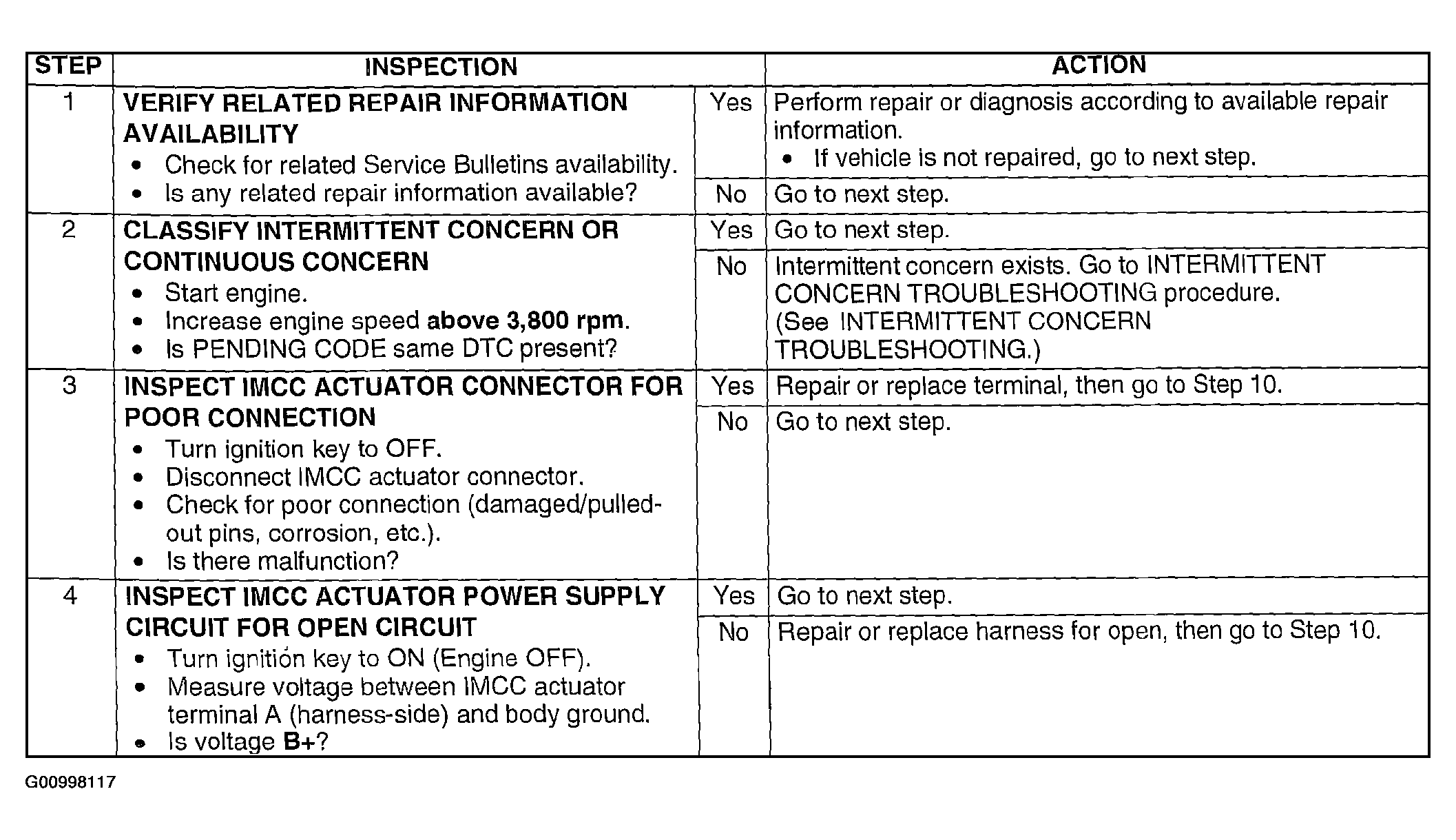

Fig 1: DTC P0660 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

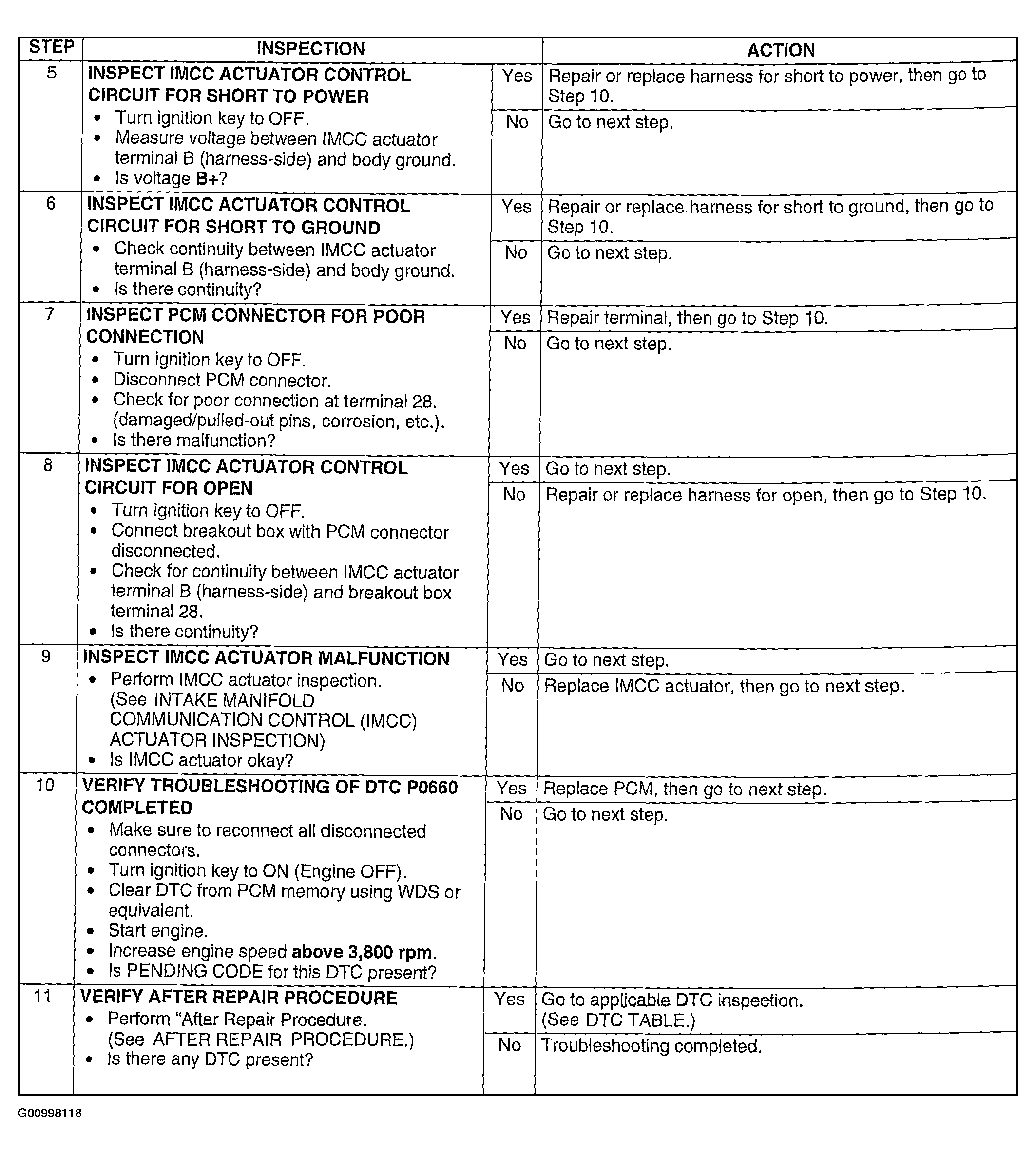

Fig 2: DTC P0660 Diagnostic Procedure Chart (Step 5-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
