DTC P0507: Idle Control System Rpm Higher Than Expected
>>
Notes
DTC P0507: Idle Control System Rpm Higher Than Expected: Notes

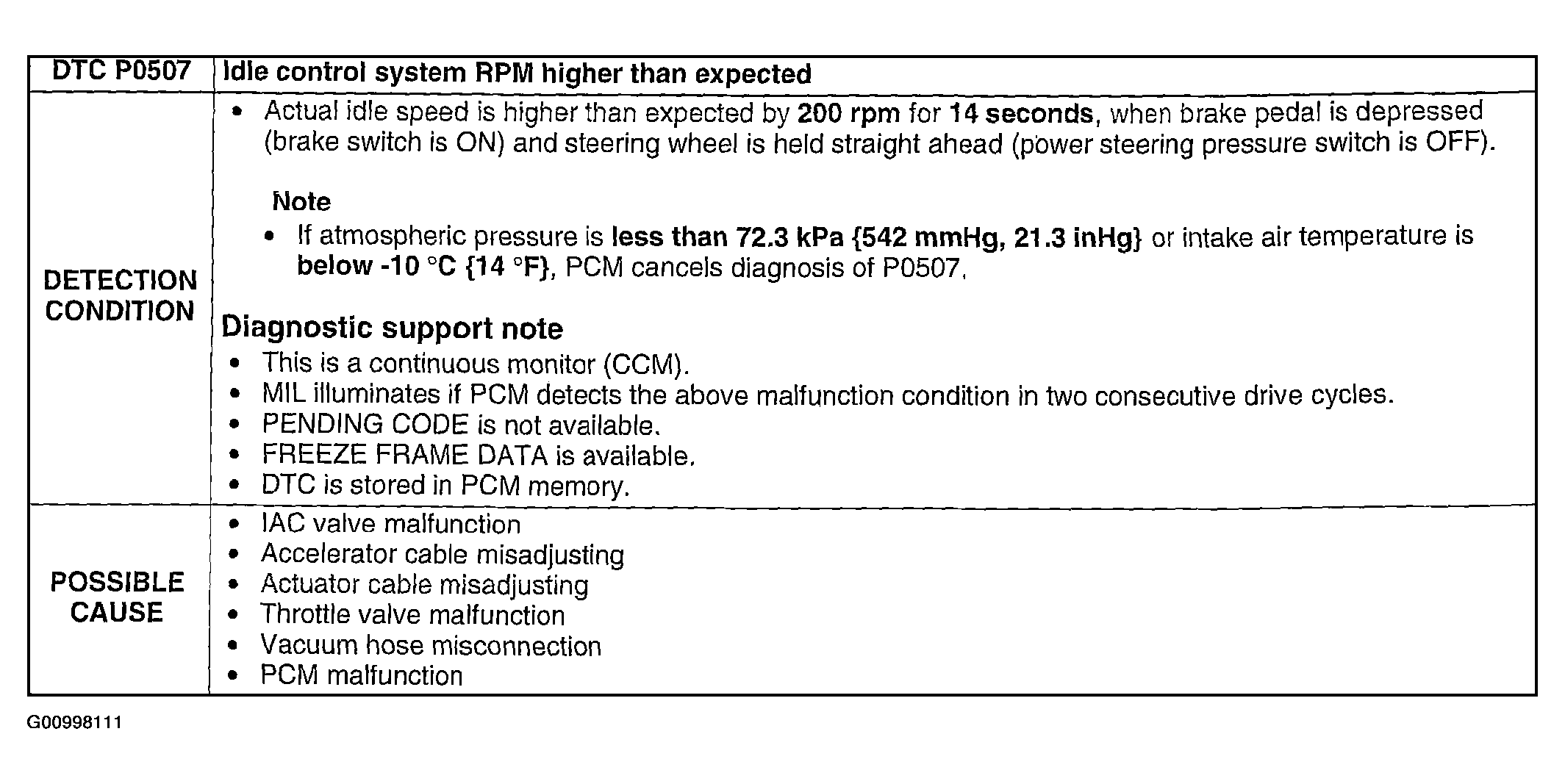

Fig 1: DTC P0507 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
