DTC P0505: IAC Valve Circuit Malfunction: Notes

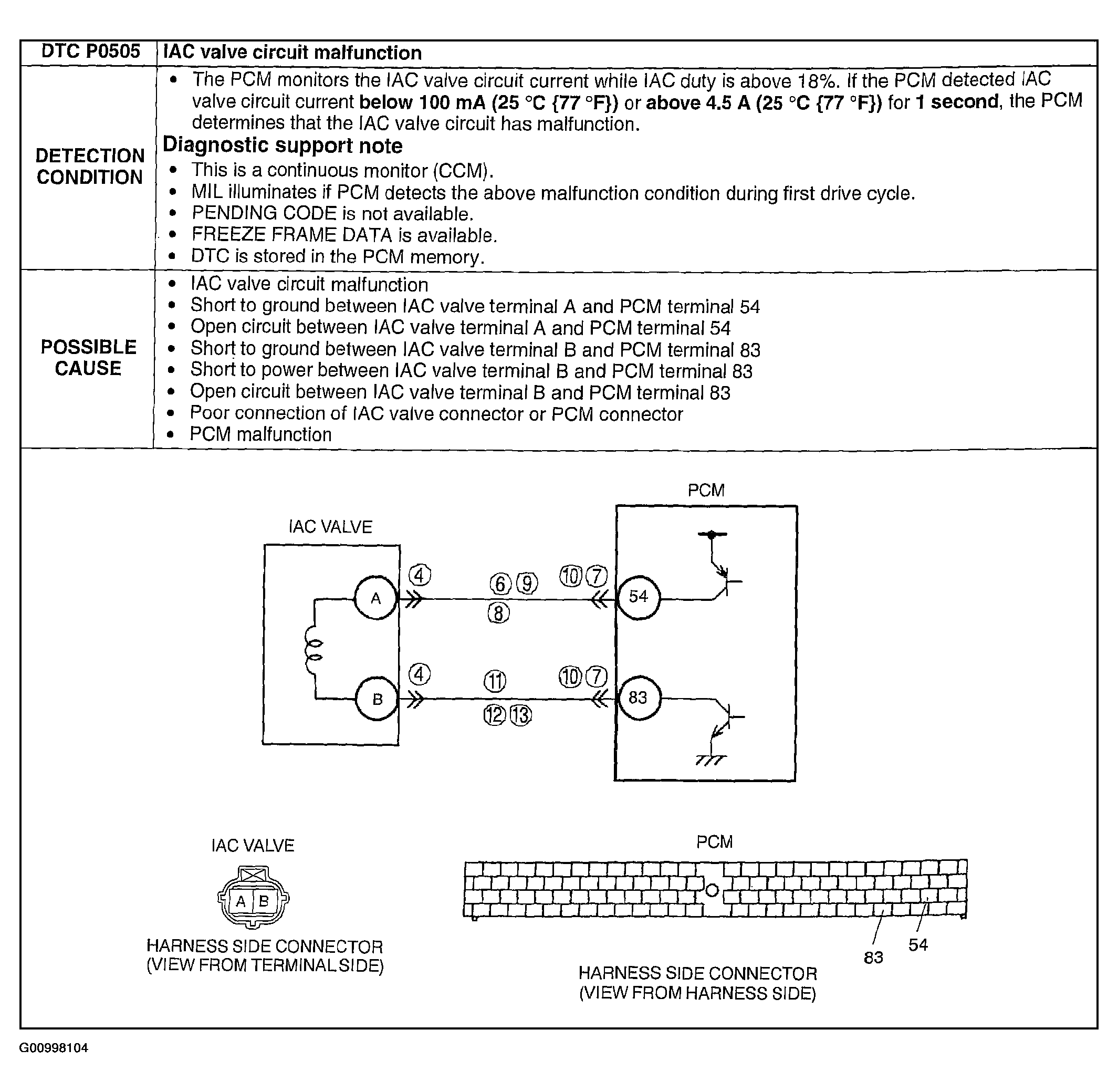

Fig 1: DTC P0505 Detection Condition & Possible Causes Chart

G00998104

Courtesy of MAZDA MOTORS CORP.
