DTC P0500: Vehicle Speed Sensor (VSS) Circuit Malfunction
>>
Notes
DTC P0500: Vehicle Speed Sensor (VSS) Circuit Malfunction: Notes

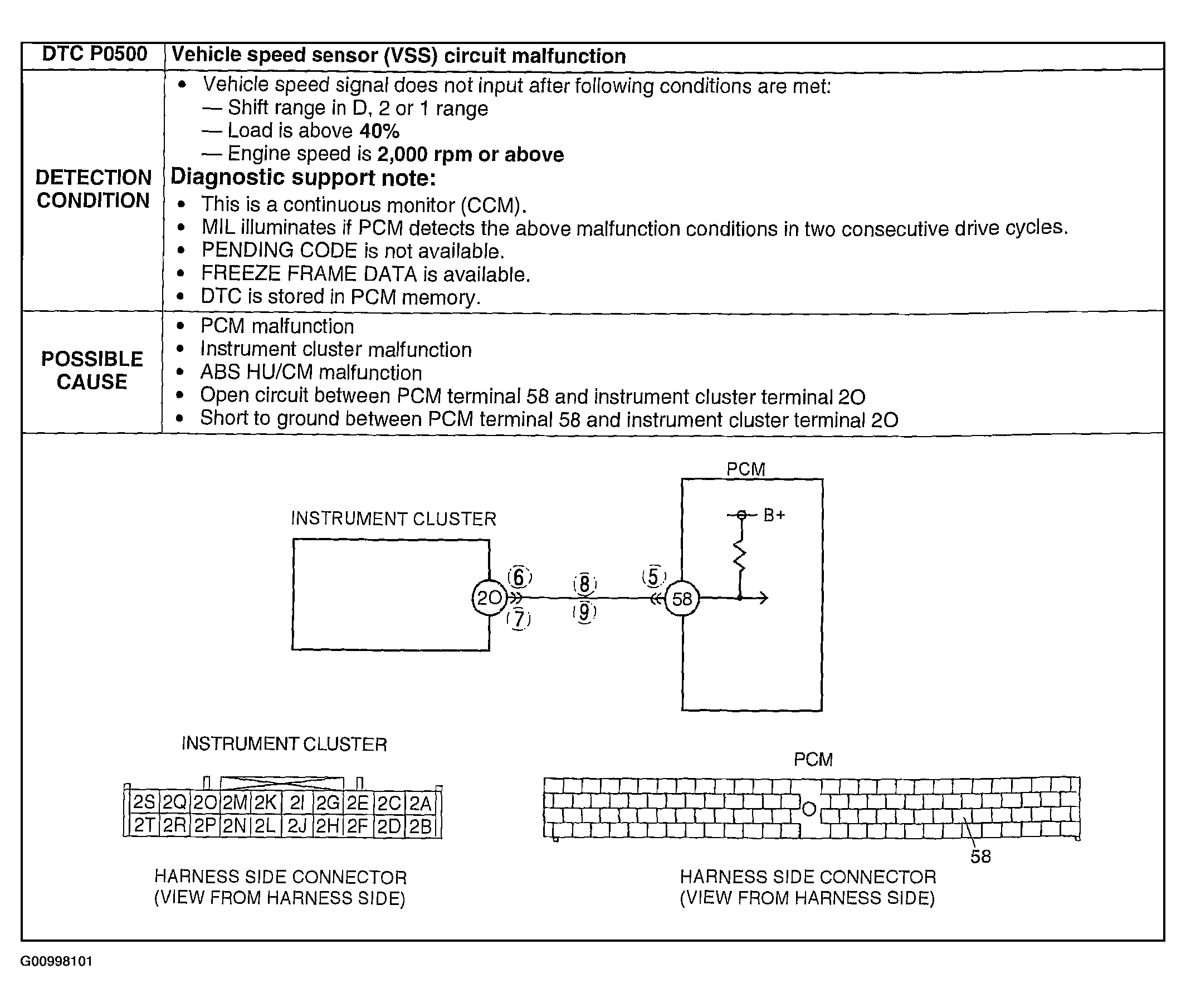

Fig 1: DTC P0500 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
