DTC P0480: Fan Control Module Circuit Malfunction
>>
Diagnostic Procedure
Diagnostic Procedure

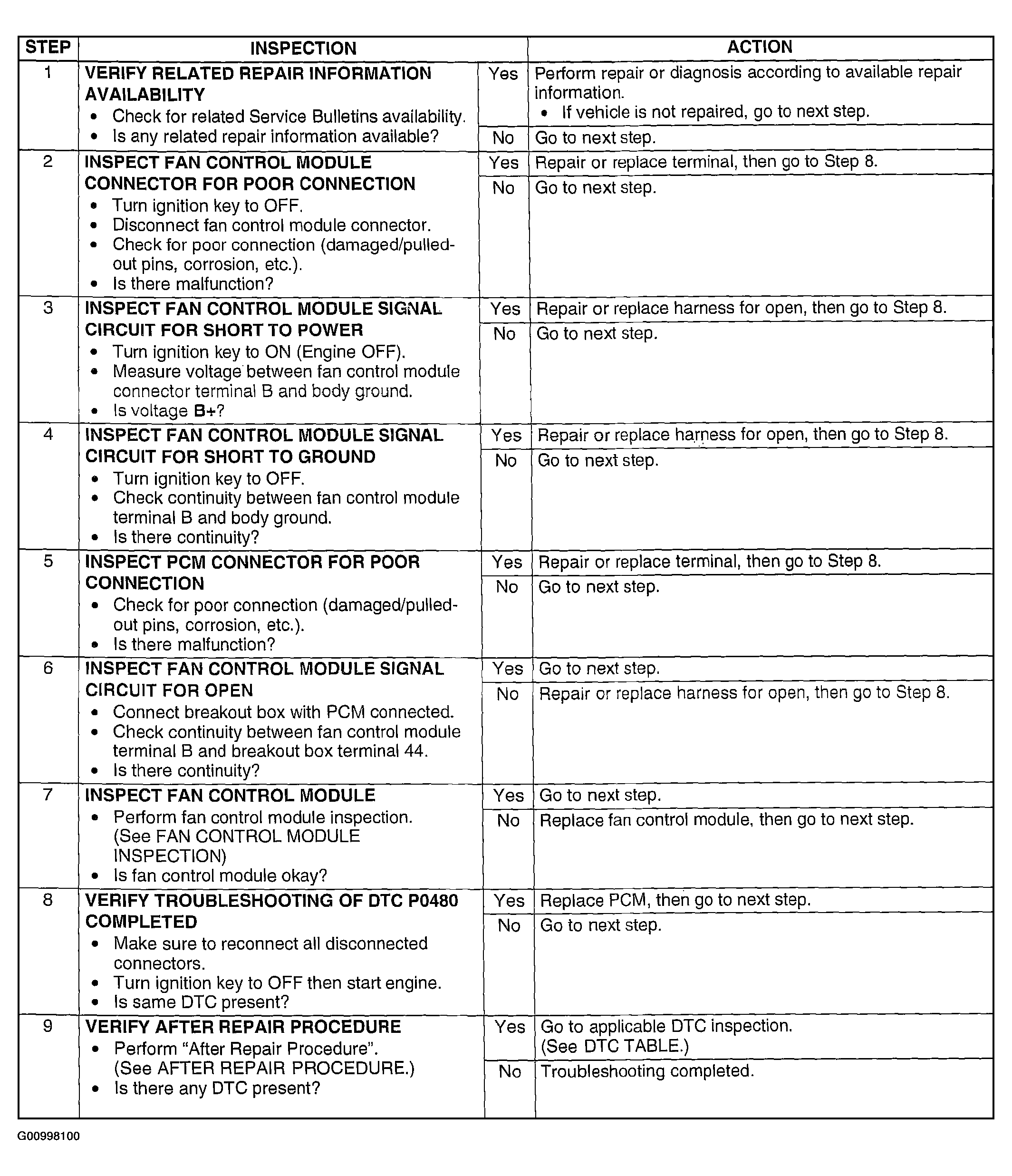

Fig 1: DTC P0480 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
