DTC P0463: Fuel Gauge Sender Unit Circuit High Input
>>
Notes
DTC P0463: Fuel Gauge Sender Unit Circuit High Input: Notes

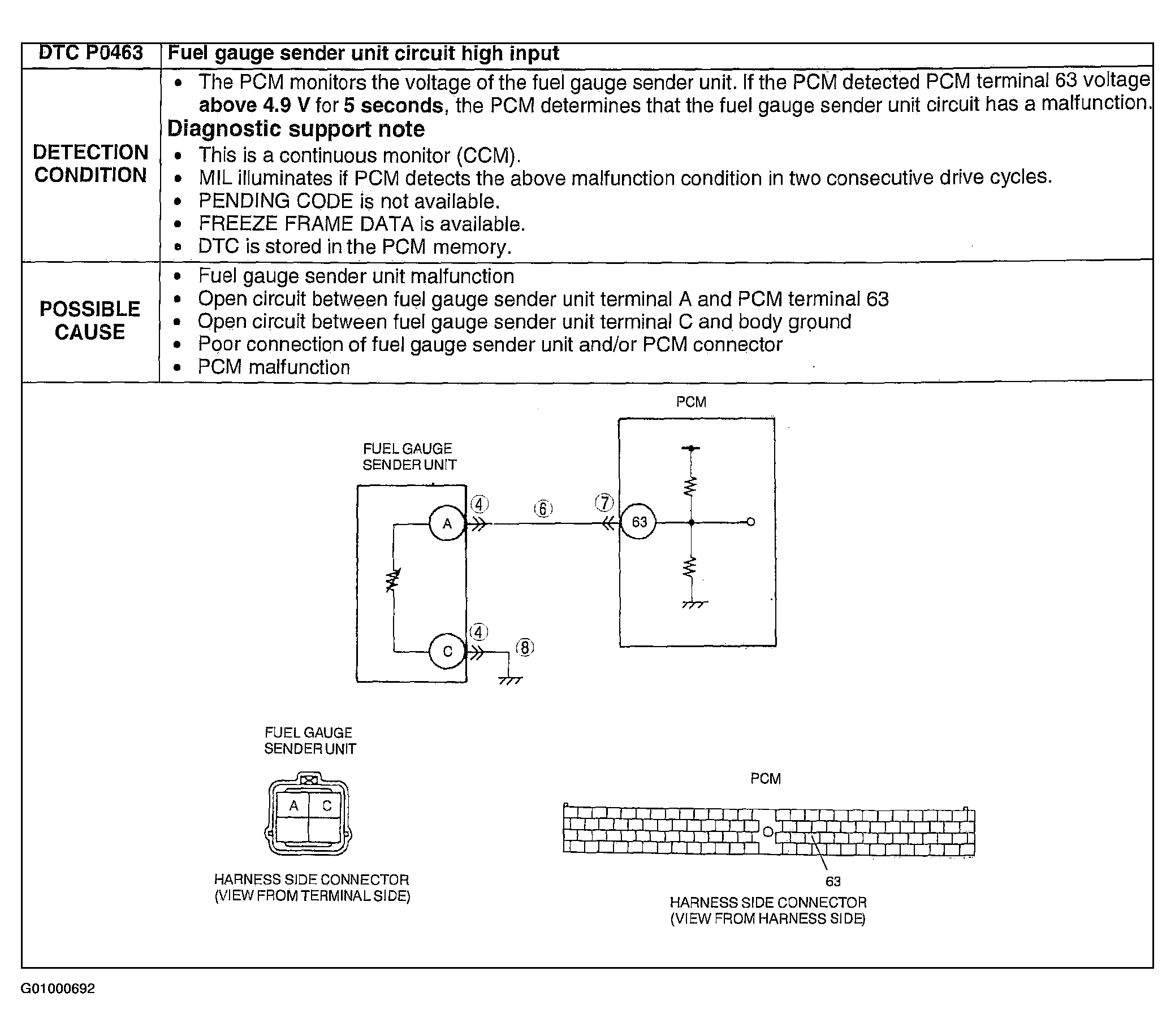

Fig 1: DTC P0463 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
