Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0463: Fuel Gauge Sender Unit Circuit High Input >> Diagnostic Procedure

Diagnostic Procedure

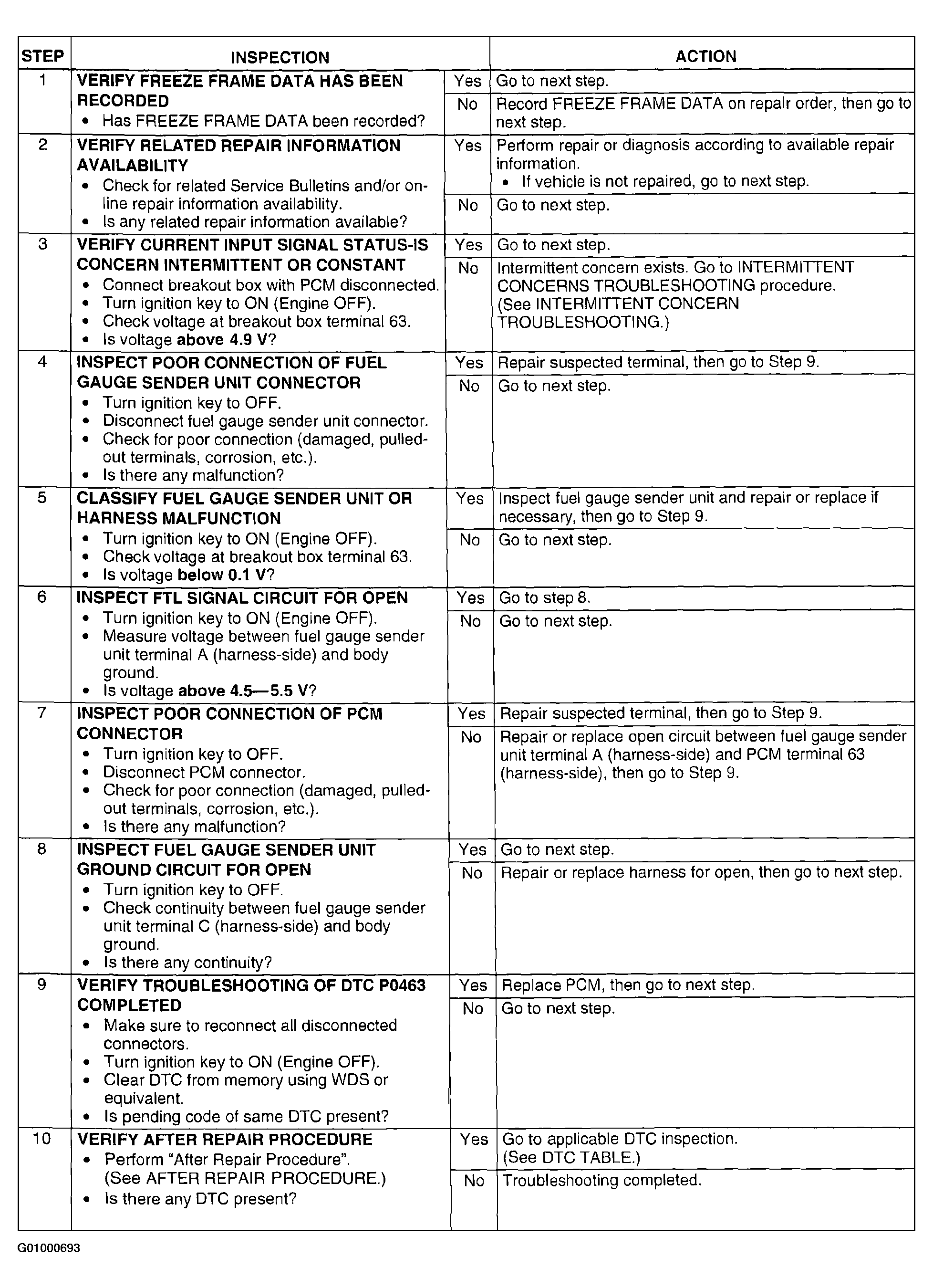

Fig 1: DTC P0463 Diagnostic Procedure Chart
G01000693Courtesy of MAZDA MOTORS CORP.
