Diagnostic Procedure

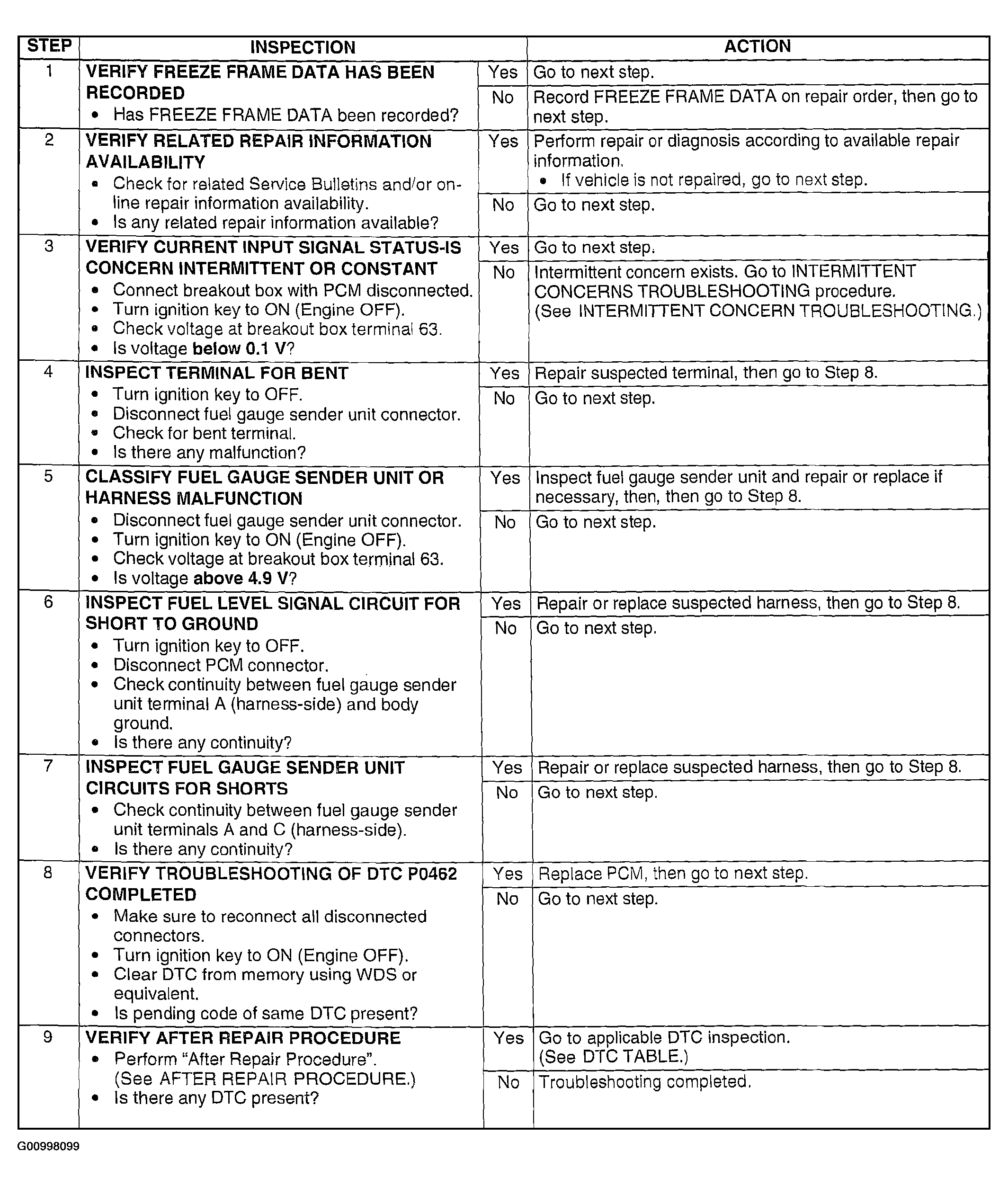

Fig 1: DTC P0462 Diagnostic Procedure Chart
G00998099Courtesy of MAZDA MOTORS CORP.
