DTC P0456: Evaporative Emission Control System Leak Detected (Very Small Leak)
>>
Notes
DTC P0456: Evaporative Emission Control System Leak Detected (Very Small Leak): Notes

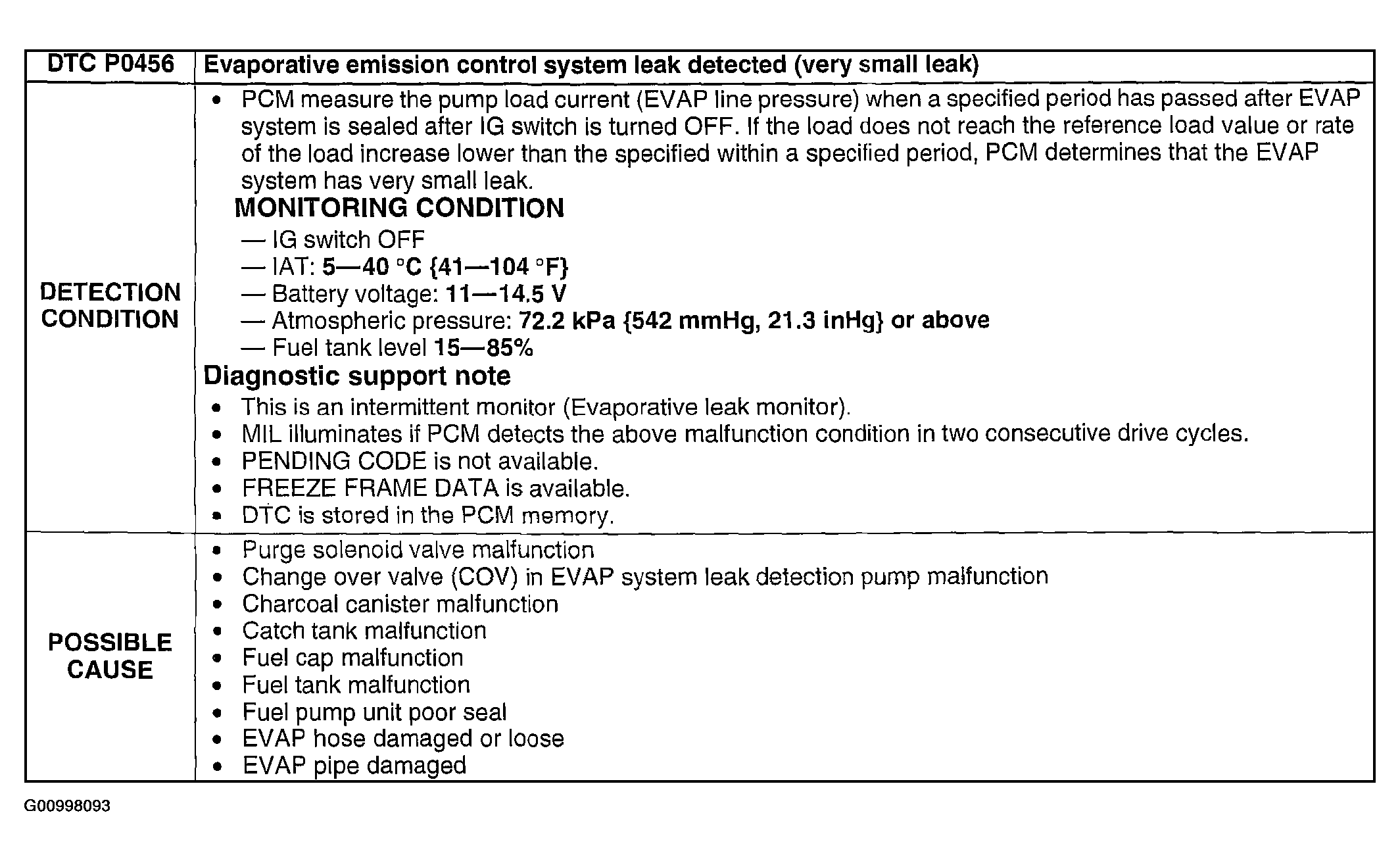

Fig 1: DTC P0456 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
