DTC P0441: Evaporative Emission Control System Incorrect Purge Flow: Notes

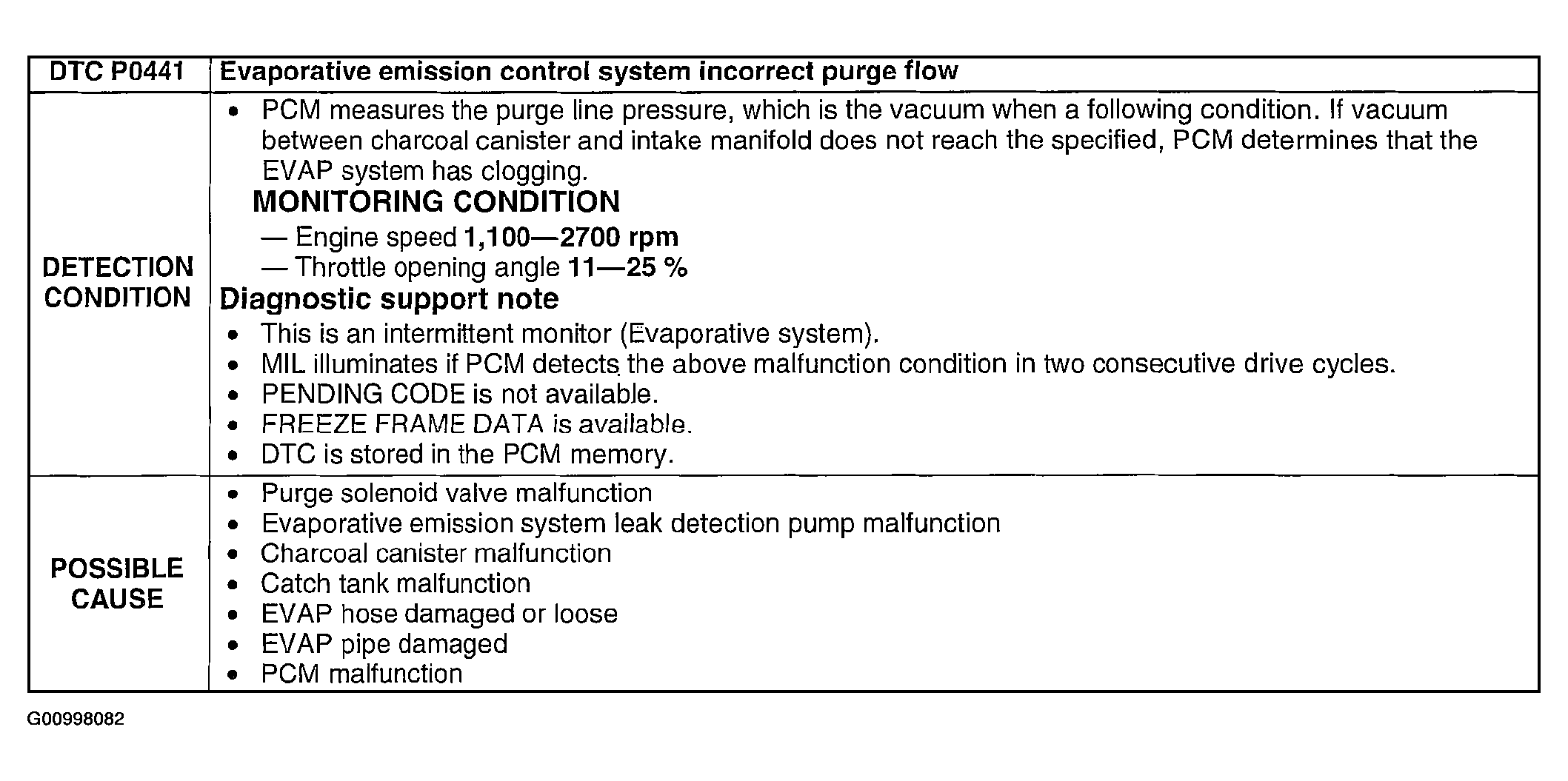

Fig 1: DTC P0441 Detection Condition & Possible Causes Chart

G00998082

Courtesy of MAZDA MOTORS CORP.
