Diagnostic Procedure

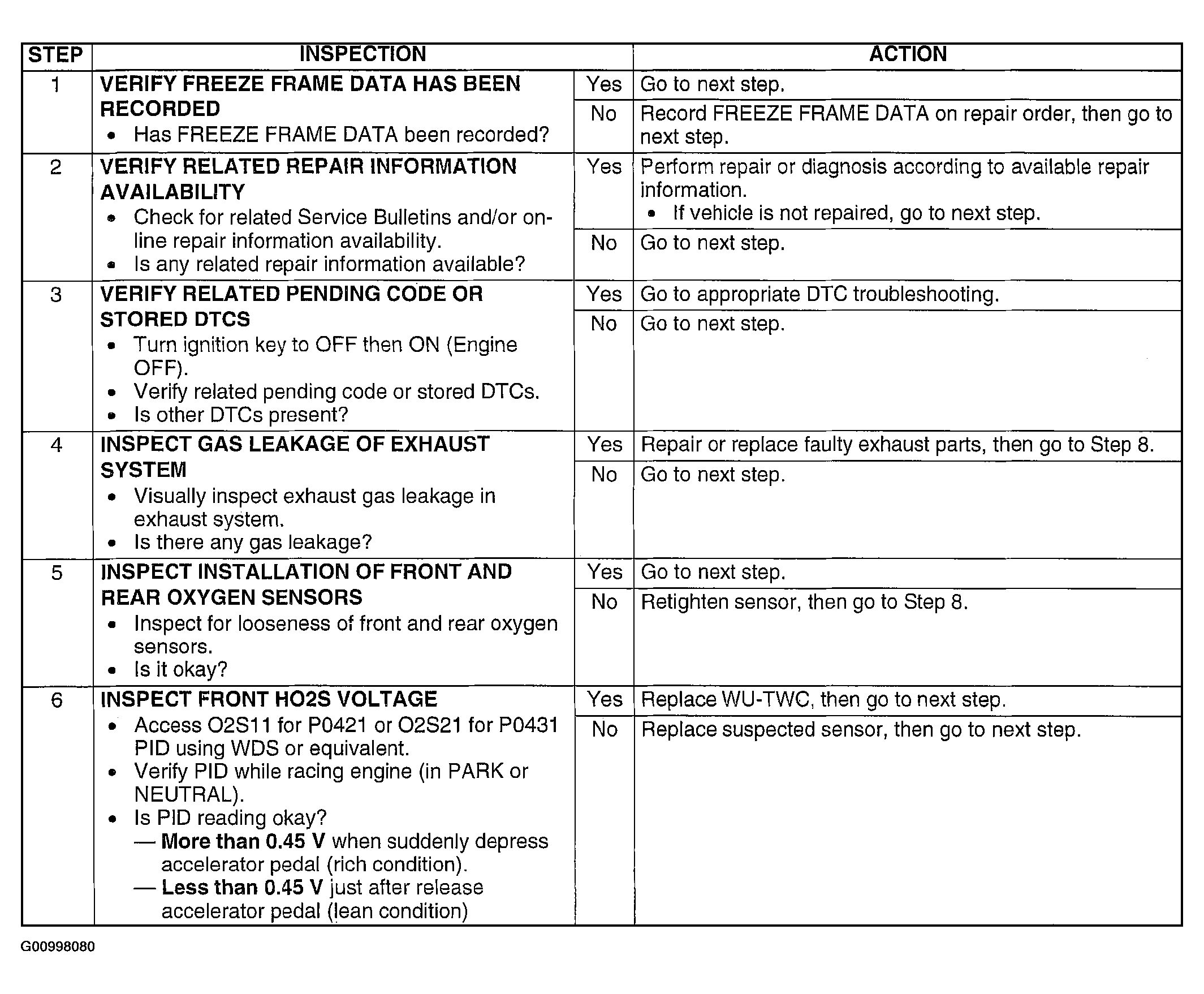

Fig 1: DTC P0421, P0431 Diagnostic Procedure Chart (Step 1-6)
G00998080Courtesy of MAZDA MOTORS CORP.

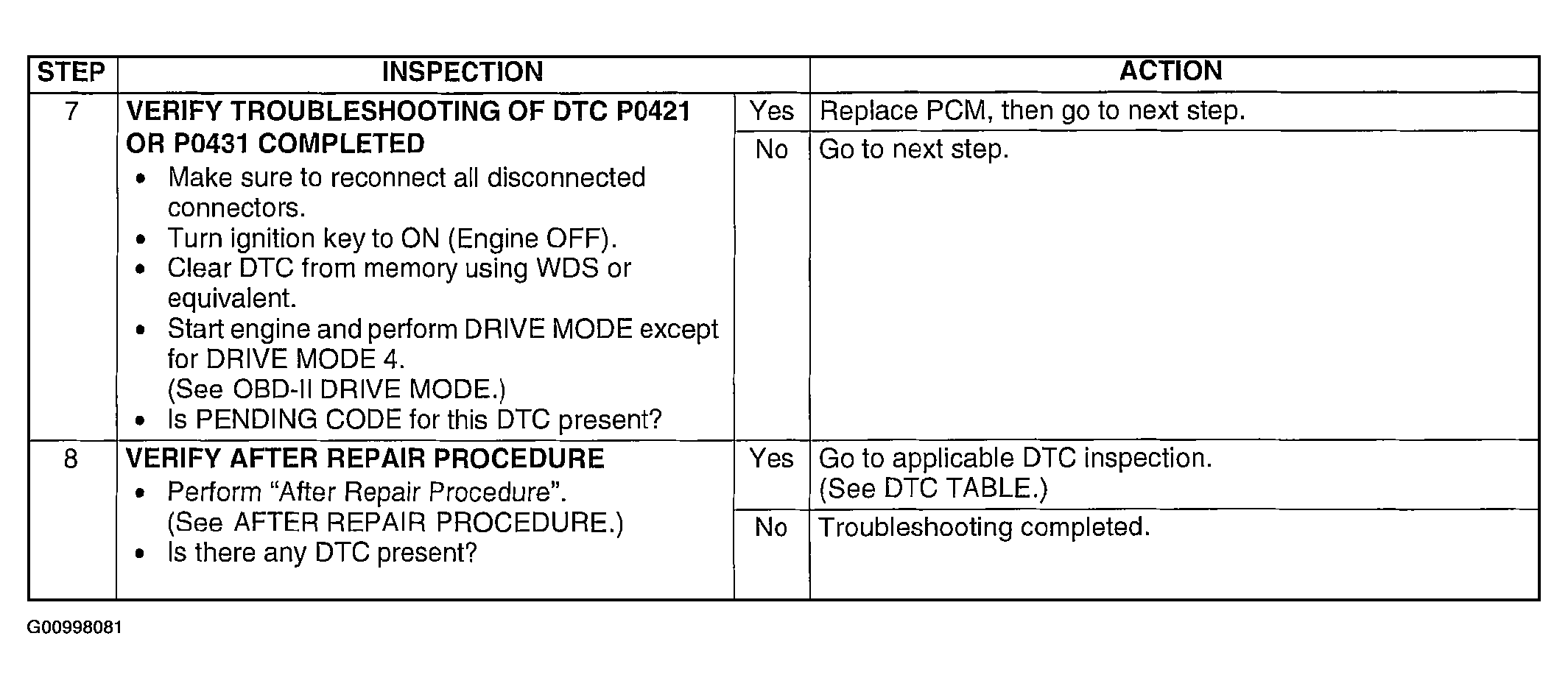

Fig 2: DTC P0421, P0431 Diagnostic Procedure Chart (Step 7-8)
G00998081Courtesy of MAZDA MOTORS CORP.
