Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0401:EGR Flow Insufficient Detected >> Notes

DTC P0401:EGR Flow Insufficient Detected: Notes

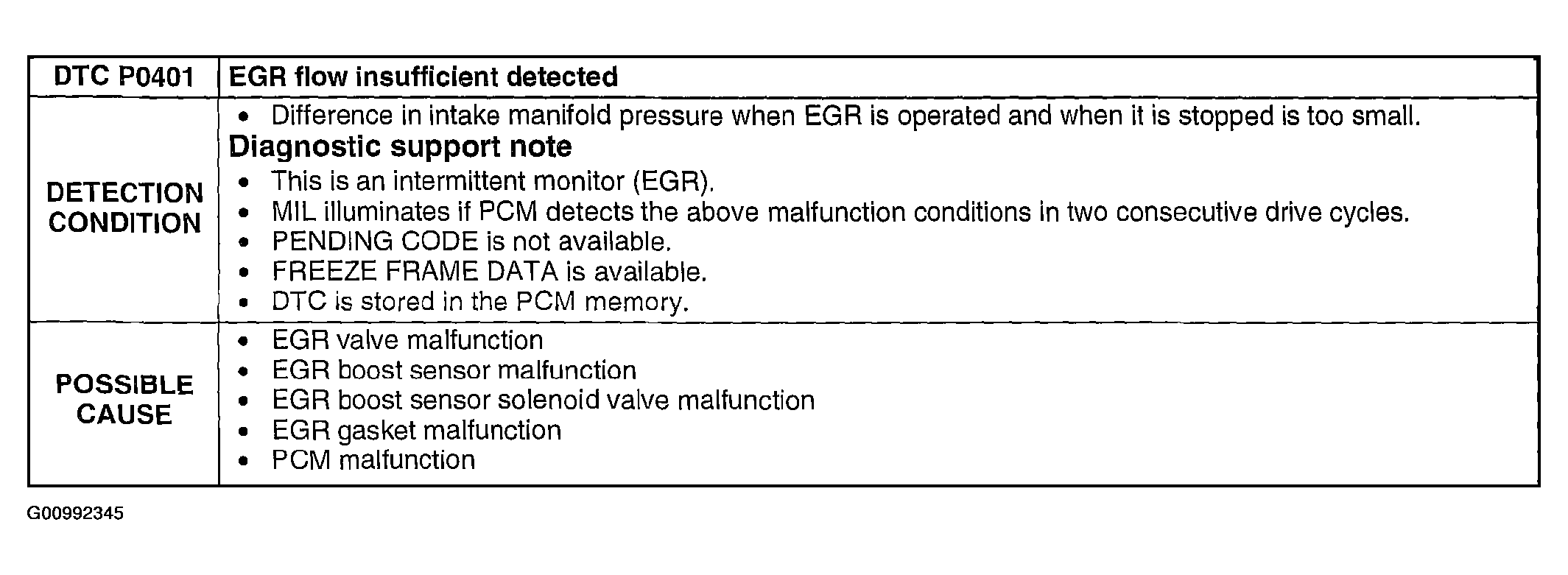

Fig 1: DTC P0401 Detection Condition & Possible Causes Chart

G00992345

Courtesy of MAZDA MOTORS CORP.
