DTC P0401:EGR Flow Insufficient Detected
>>
Diagnostic procedure
Diagnostic procedure

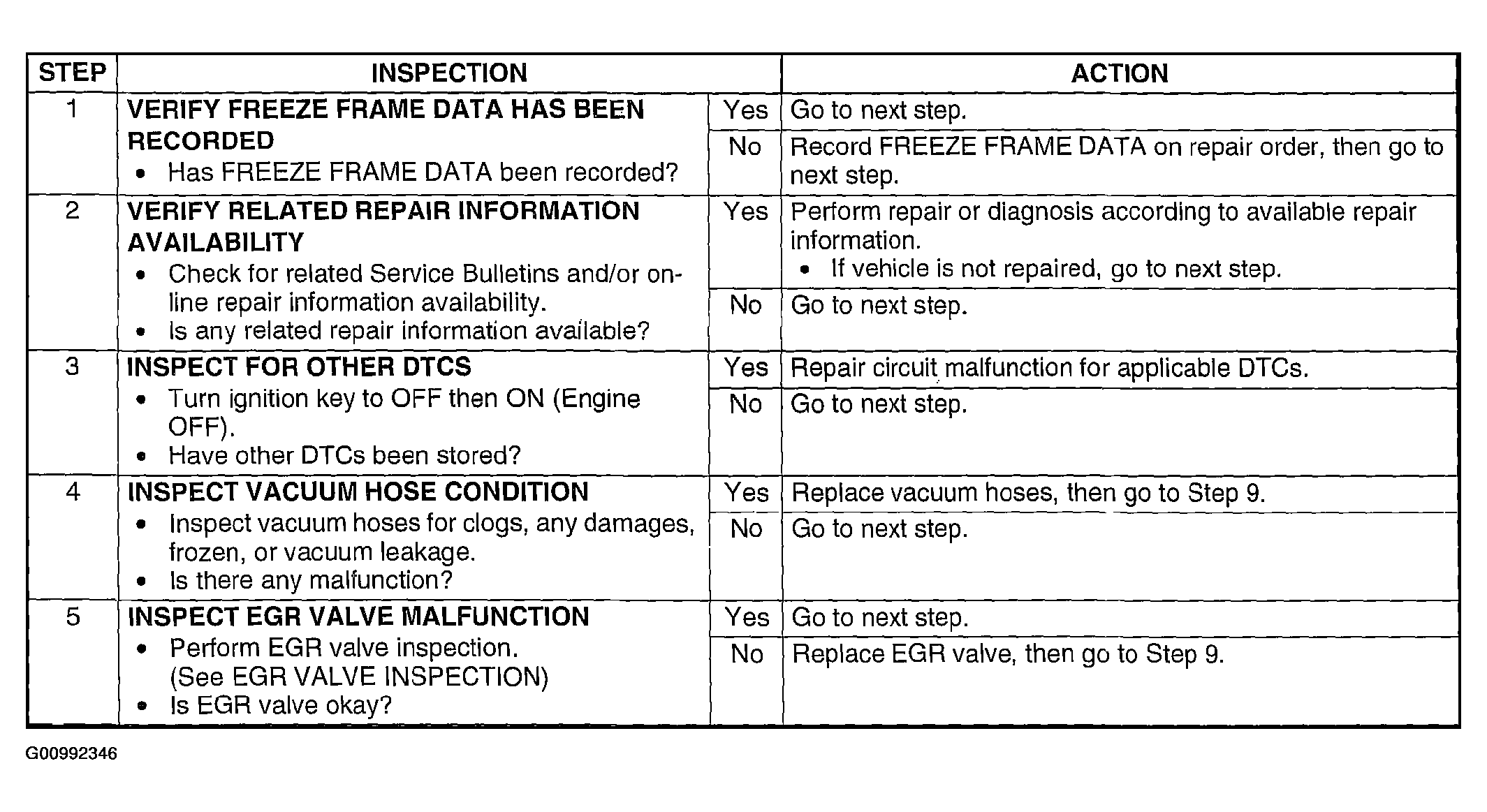

Fig 1: DTC P0401 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

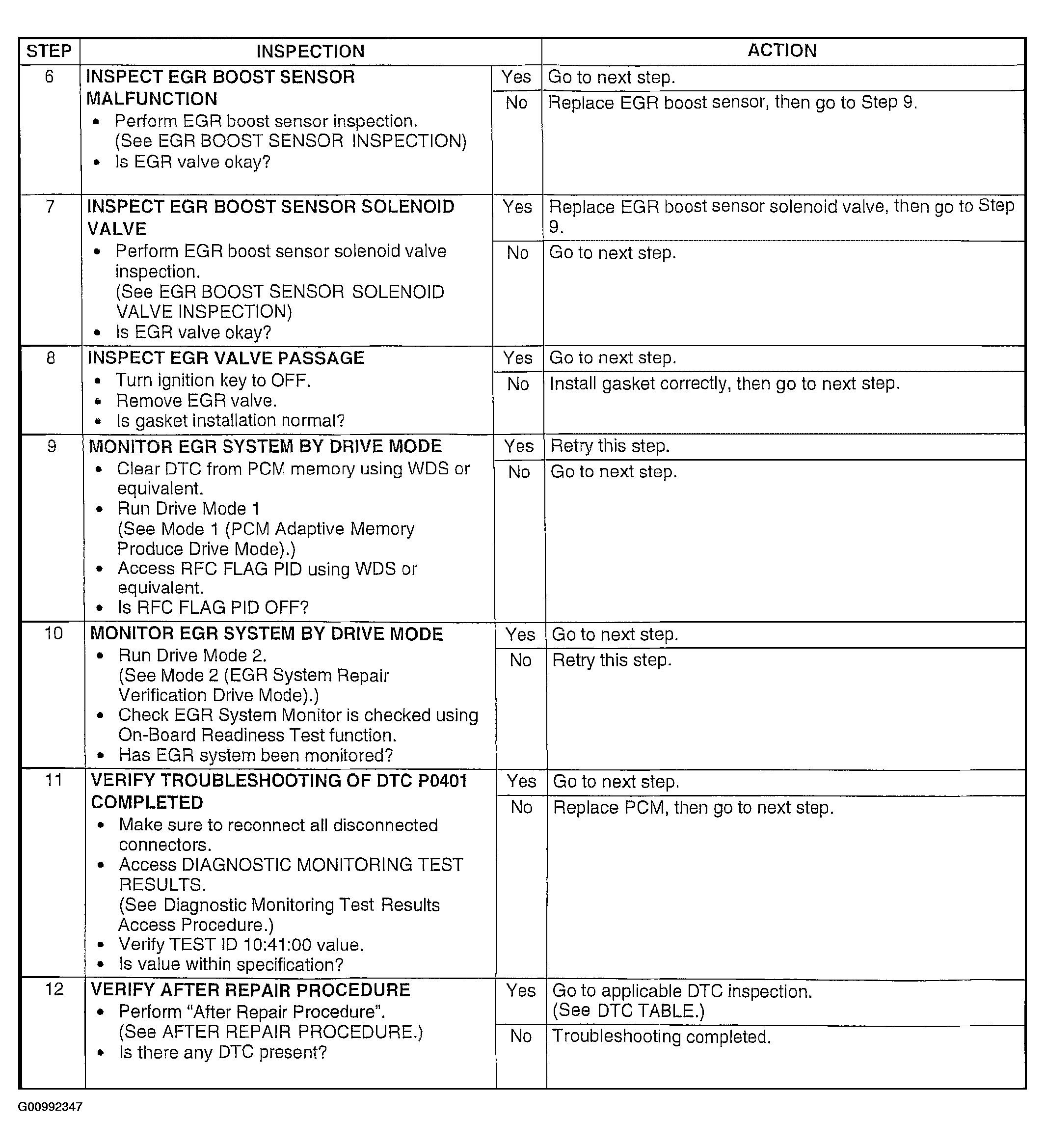

Fig 2: DTC P0401 Diagnostic Procedure Chart (Step 6-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
