Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0340: CMP Sensor Circuit Malfunction >> Notes

DTC P0340: CMP Sensor Circuit Malfunction: Notes

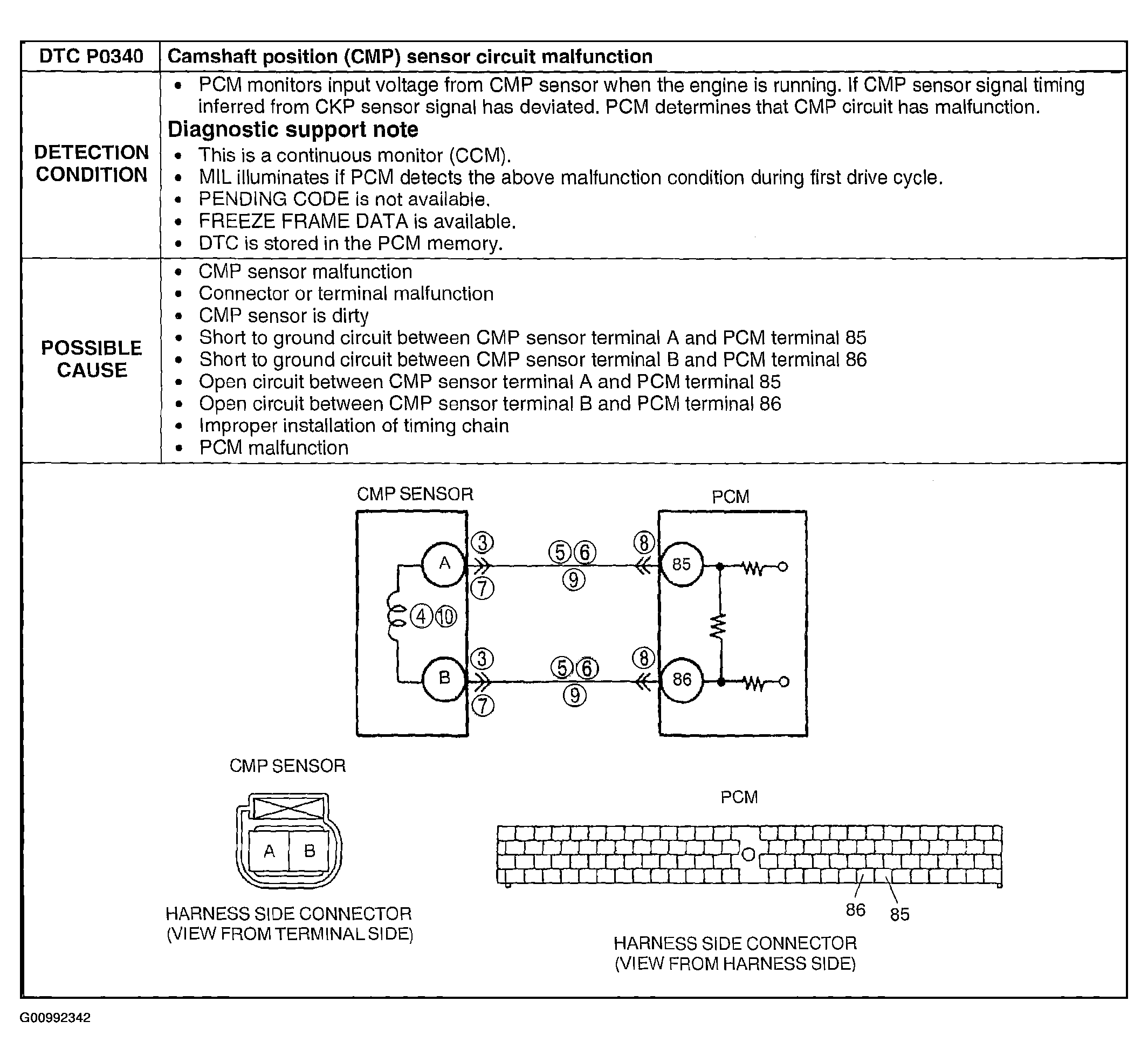

Fig 1: DTC P0340 Detection Condition & Possible Causes Chart

G00992342

Courtesy of MAZDA MOTORS CORP.
