DTC P0340: CMP Sensor Circuit Malfunction
>>
Diagnostic procedure
Diagnostic procedure

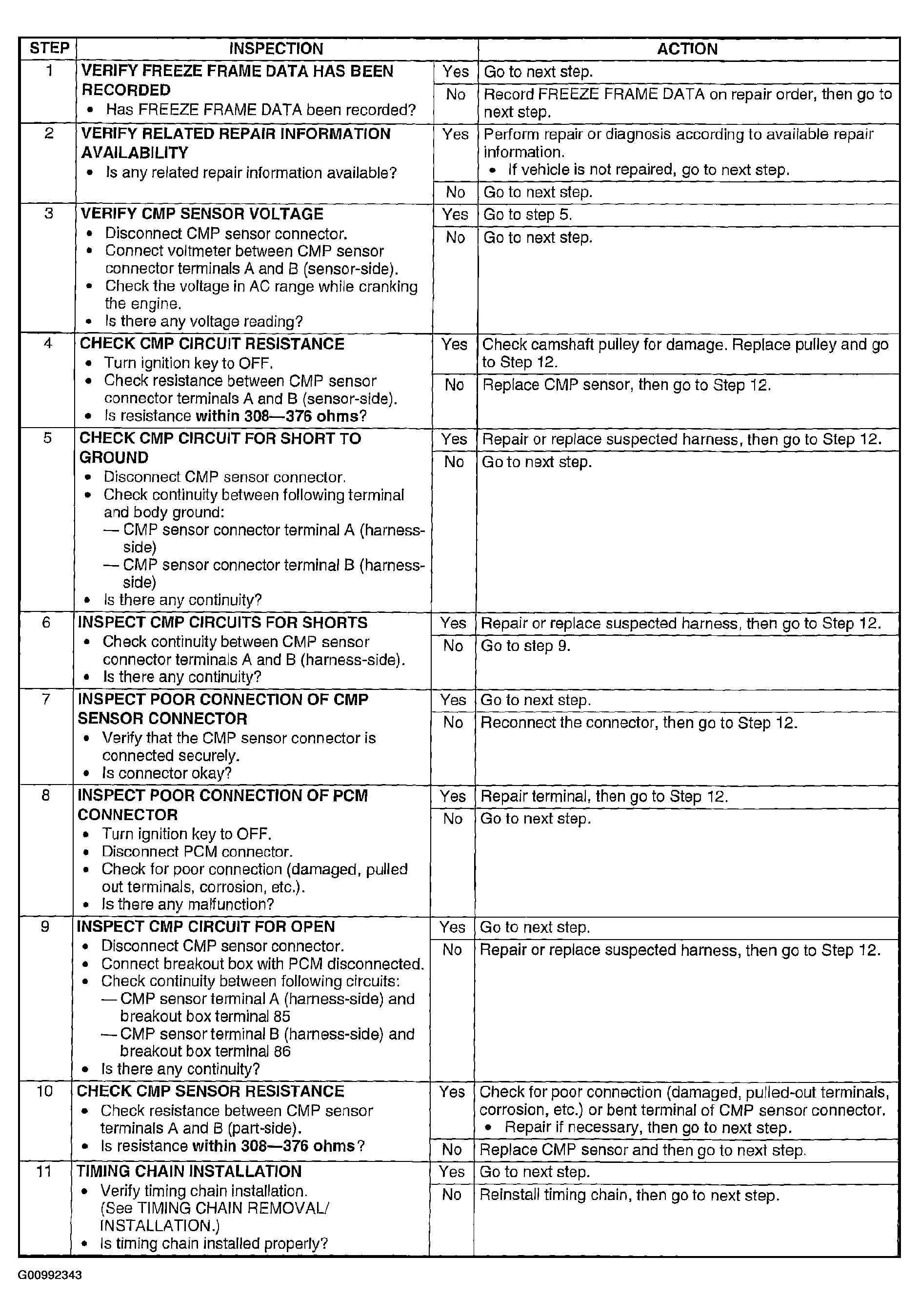

Fig 1: DTC P0340 Diagnostic Procedure Chart (Step 1-11)
Courtesy of MAZDA MOTORS CORP.

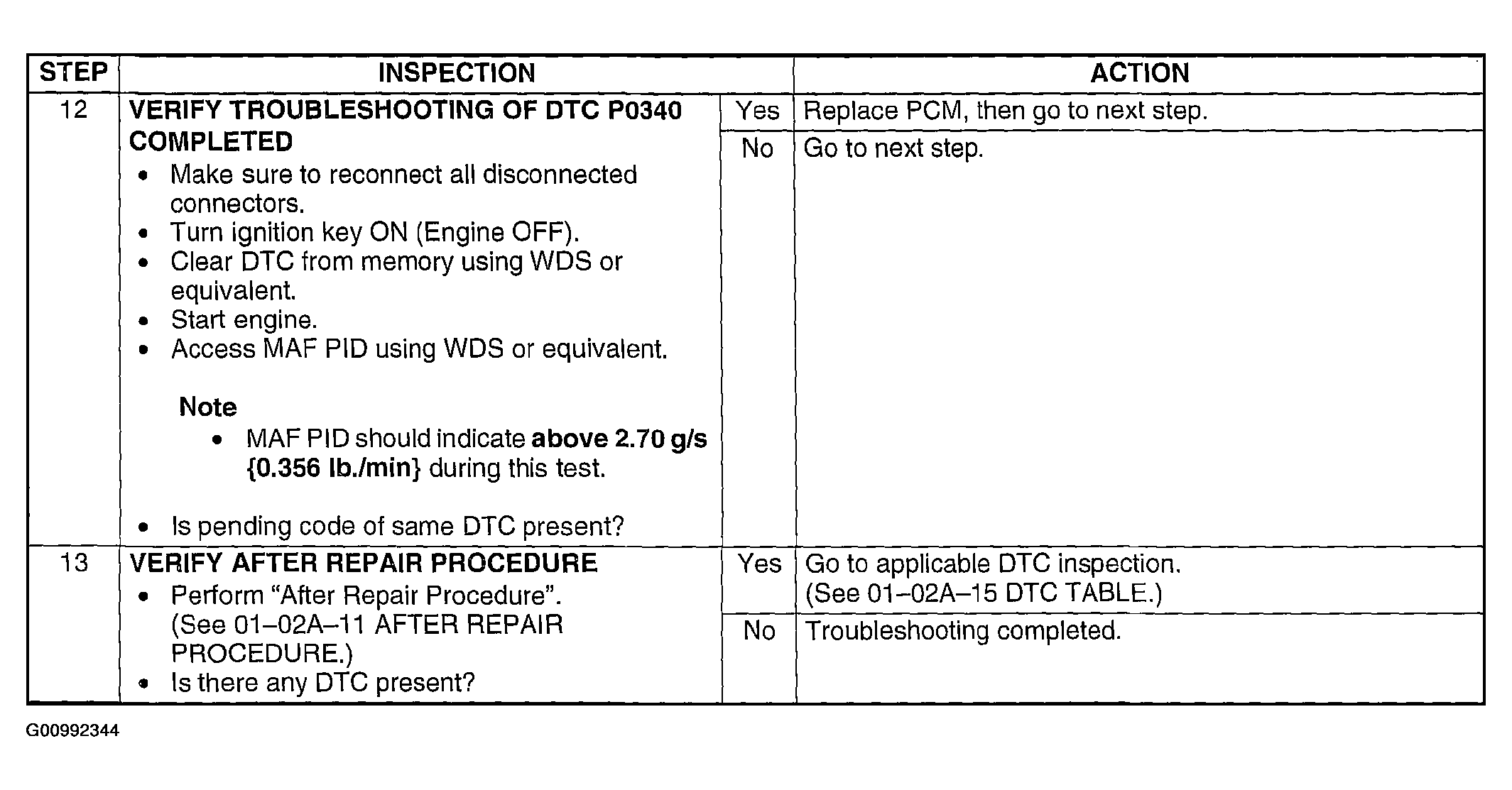

Fig 2: DTC P0340 Diagnostic Procedure Chart (Step 12-13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
