DTC P0335: CKP Sensor Circuit Malfunction
>>
Diagnostic procedure
Diagnostic procedure

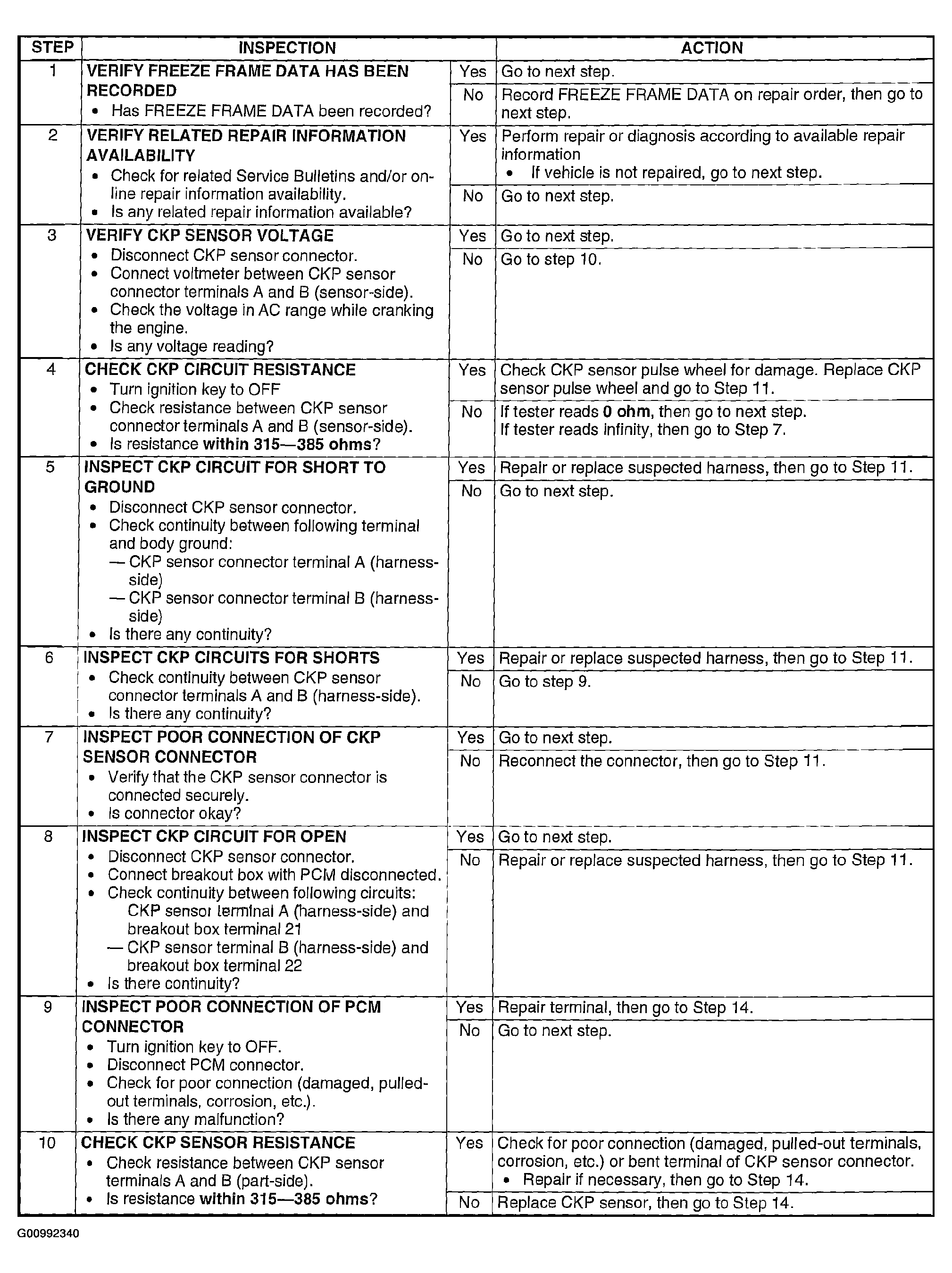

Fig 1: DTC P0335 Diagnostic Procedure Chart (Step 1-10)
Courtesy of MAZDA MOTORS CORP.

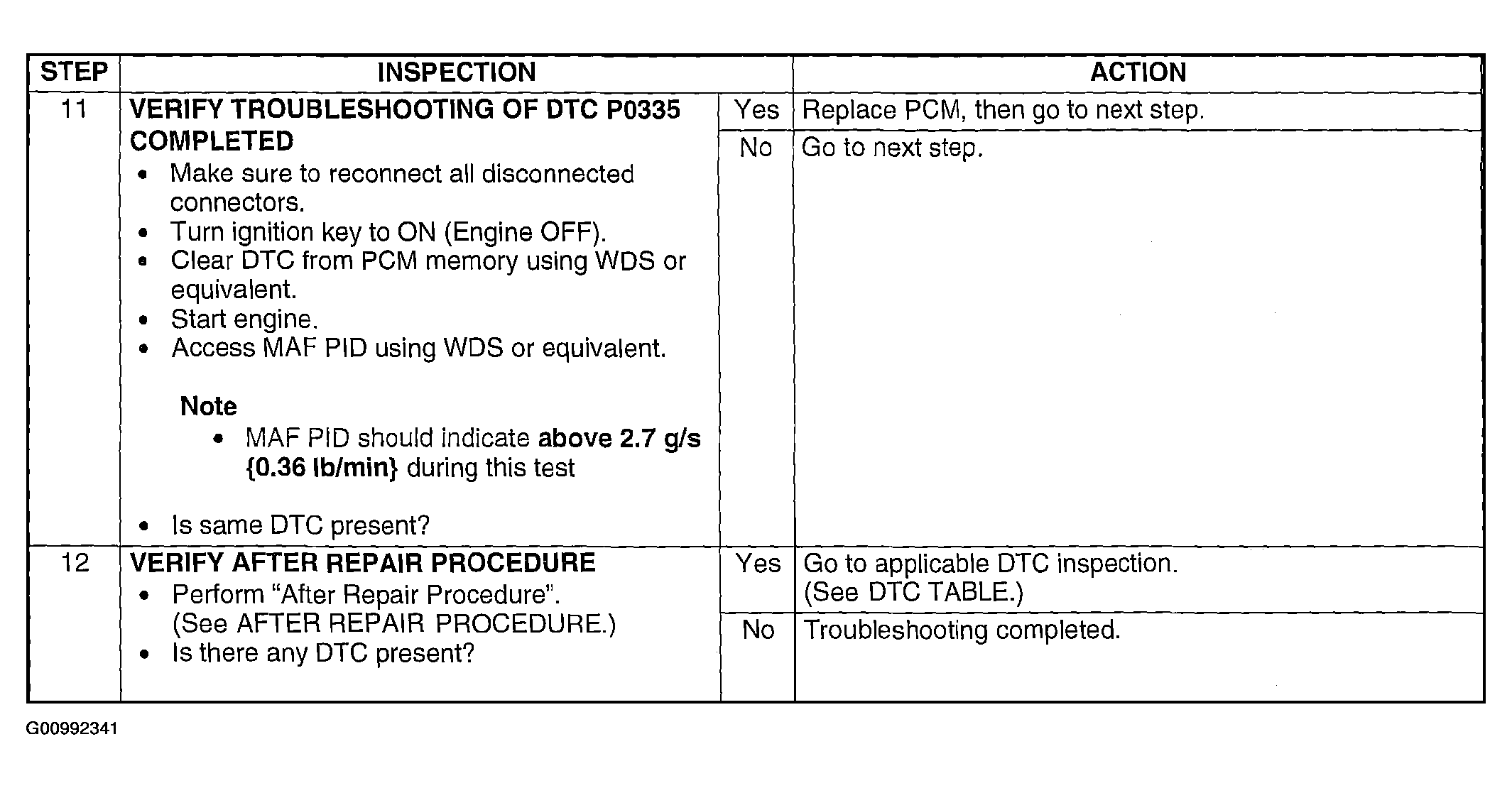

Fig 2: DTC P0335 Diagnostic Procedure Chart (Step 11-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
