DTC P0328: Knock Sensor Circuit High Input
>>
Diagnostic Procedure
Diagnostic Procedure

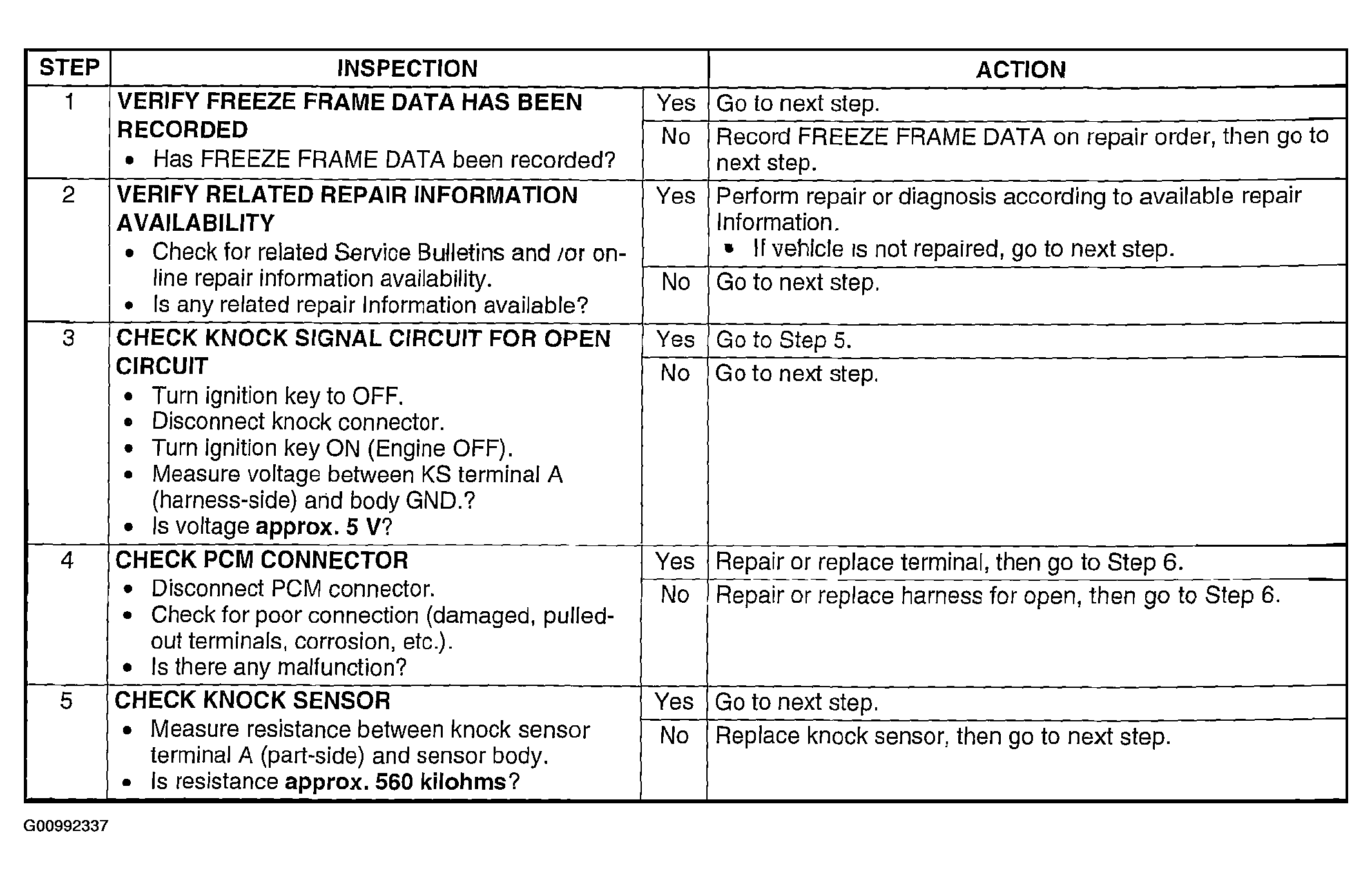

Fig 1: DTC P0328 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

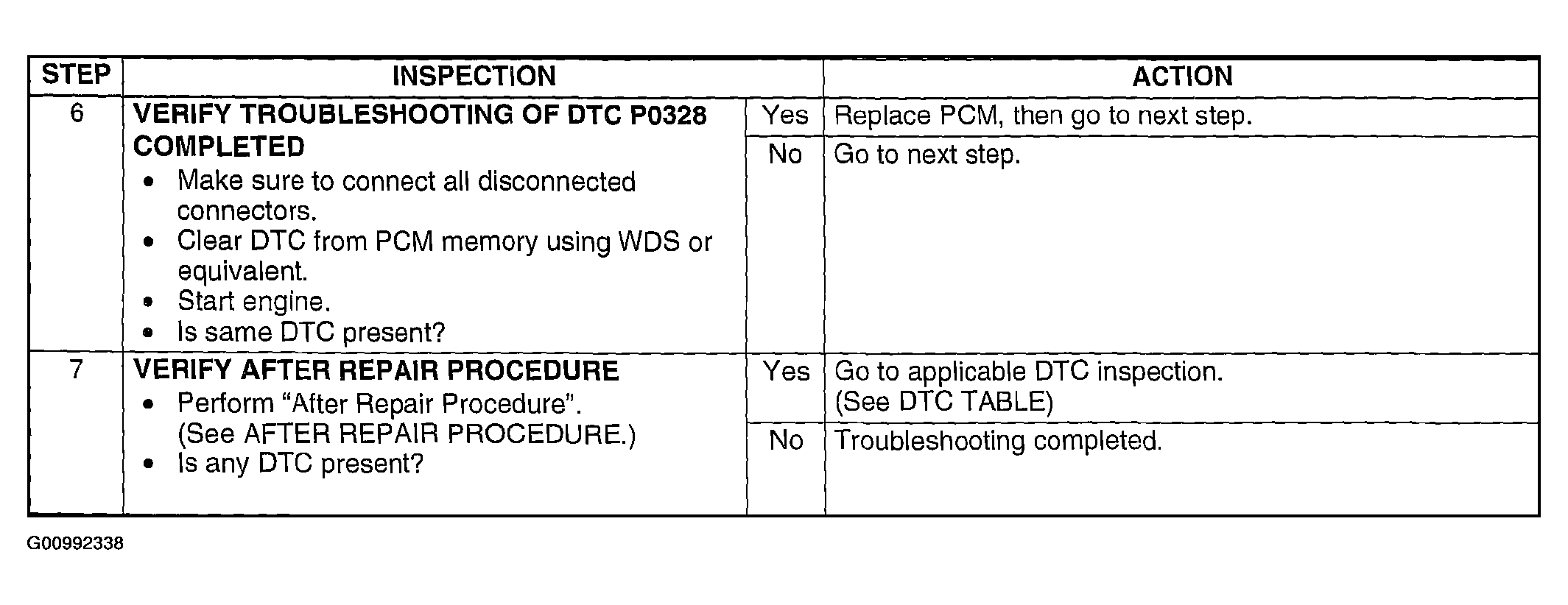

Fig 2: DTC P0328 Diagnostic Procedure Chart (Step 6-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
