Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0327: Knock Sensor Circuit Low Input >> Notes

DTC P0327: Knock Sensor Circuit Low Input: Notes

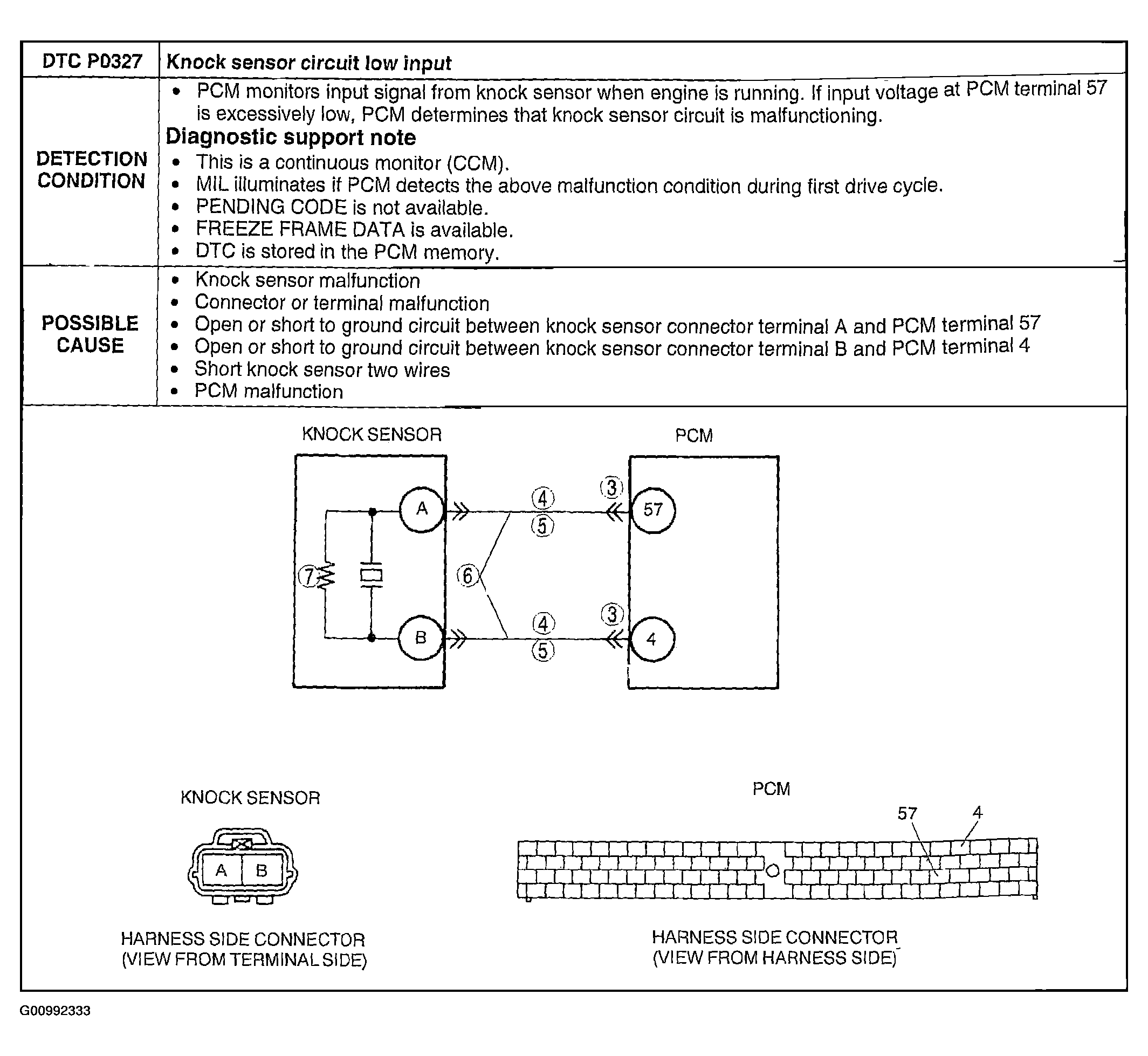

Fig 1: DTC P0327 Detection Condition & Possible Causes Chart

G00992333

Courtesy of MAZDA MOTORS CORP.
