DTC P0172, P0175: Fuel Trim System (RH) Too Rich; Fuel Trim System (LH) Too Rich
>>
Notes
DTC P0172, P0175: Fuel Trim System (RH) Too Rich; Fuel Trim System (LH) Too Rich: Notes

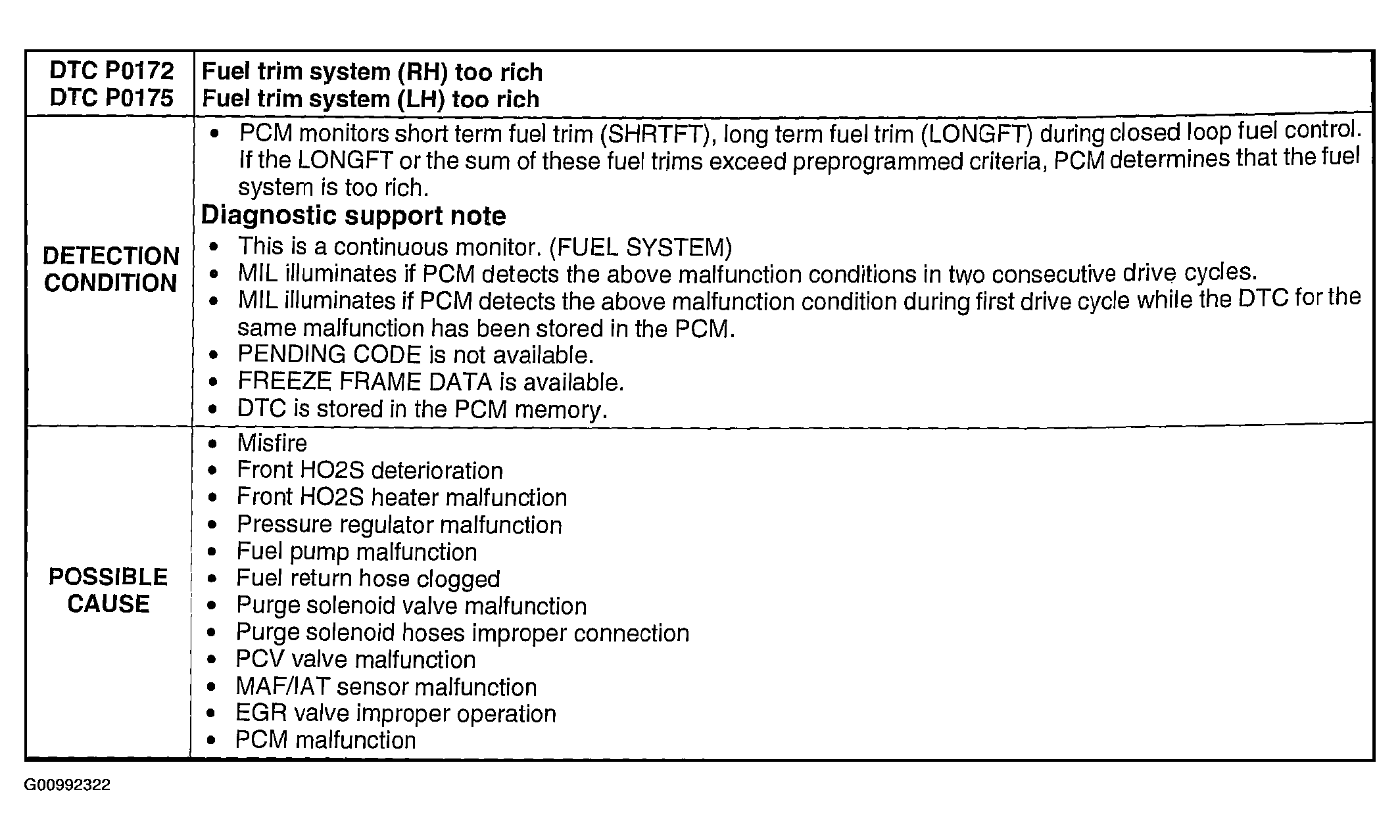

Fig 1: DTC P0172, P0175 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
