DTC P0171, P0174: Fuel Trim System (RH) Too Lean; Fuel Trim System (LH) Too Lean
>>
Notes
DTC P0171, P0174: Fuel Trim System (RH) Too Lean; Fuel Trim System (LH) Too Lean: Notes

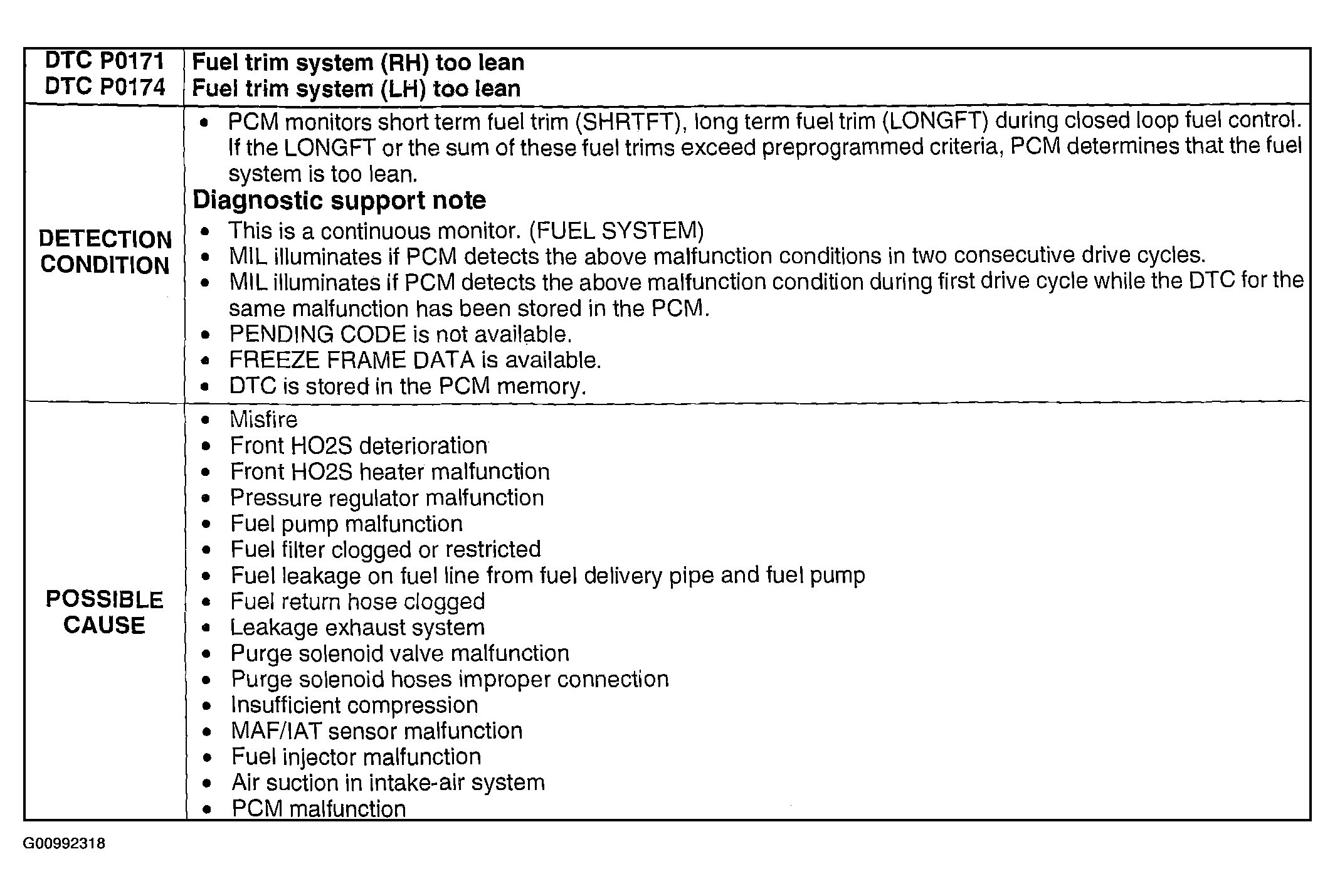

Fig 1: DTC P0171, P0174 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
