Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0138, P0158: Ho2S (Rear, RH) Circuit High Input; Ho2S (Rear, LH) Circuit High Input >> Diagnostic Procedure

Diagnostic Procedure

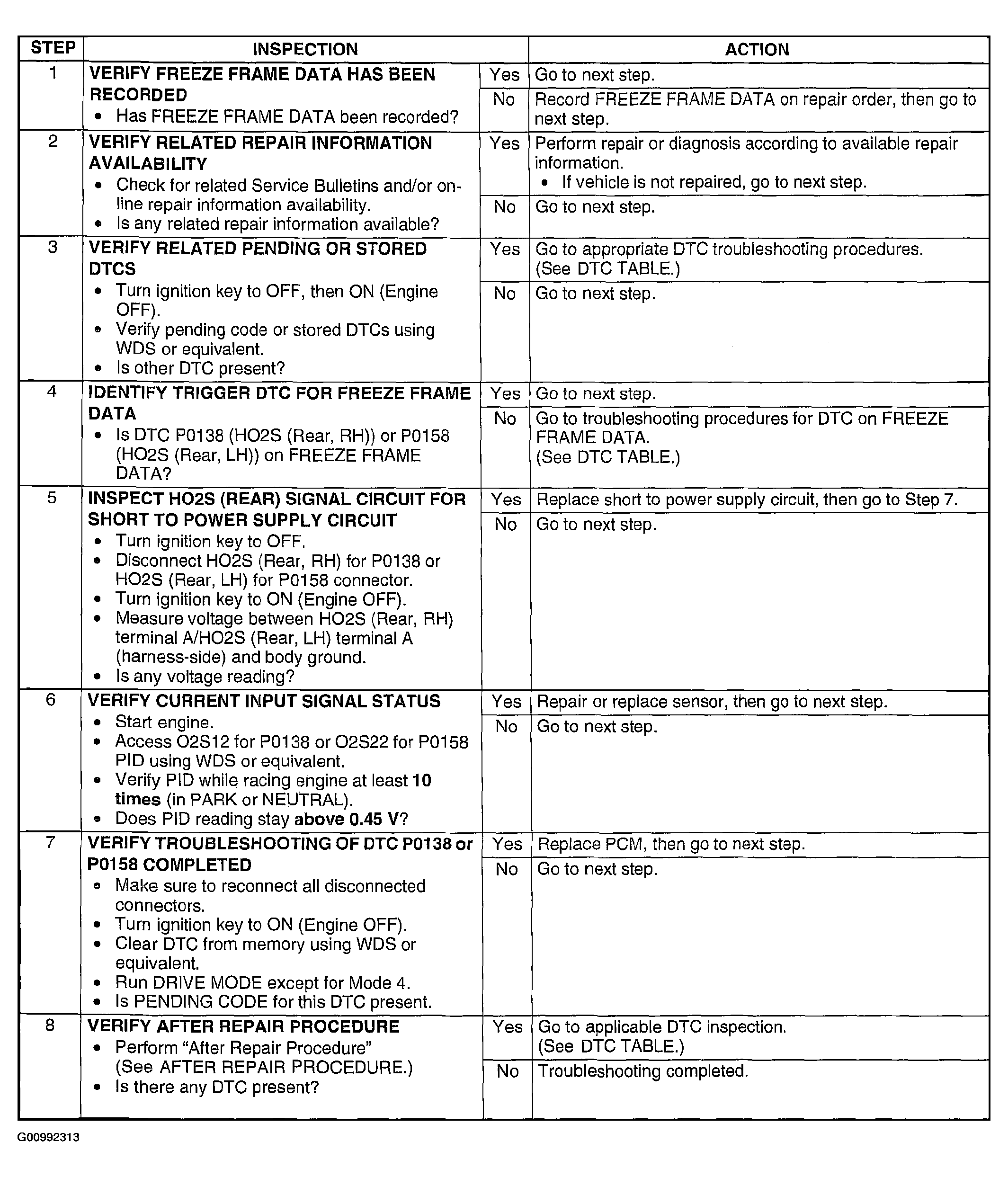

Fig 1: DTC P0138, P0158 Diagnostic Procedure Chart
G00992313Courtesy of MAZDA MOTORS CORP.
