DTC P0125: Excessive Time To Enter Closed Loop Fuel Control
>>
Diagnostic Procedure
Diagnostic Procedure

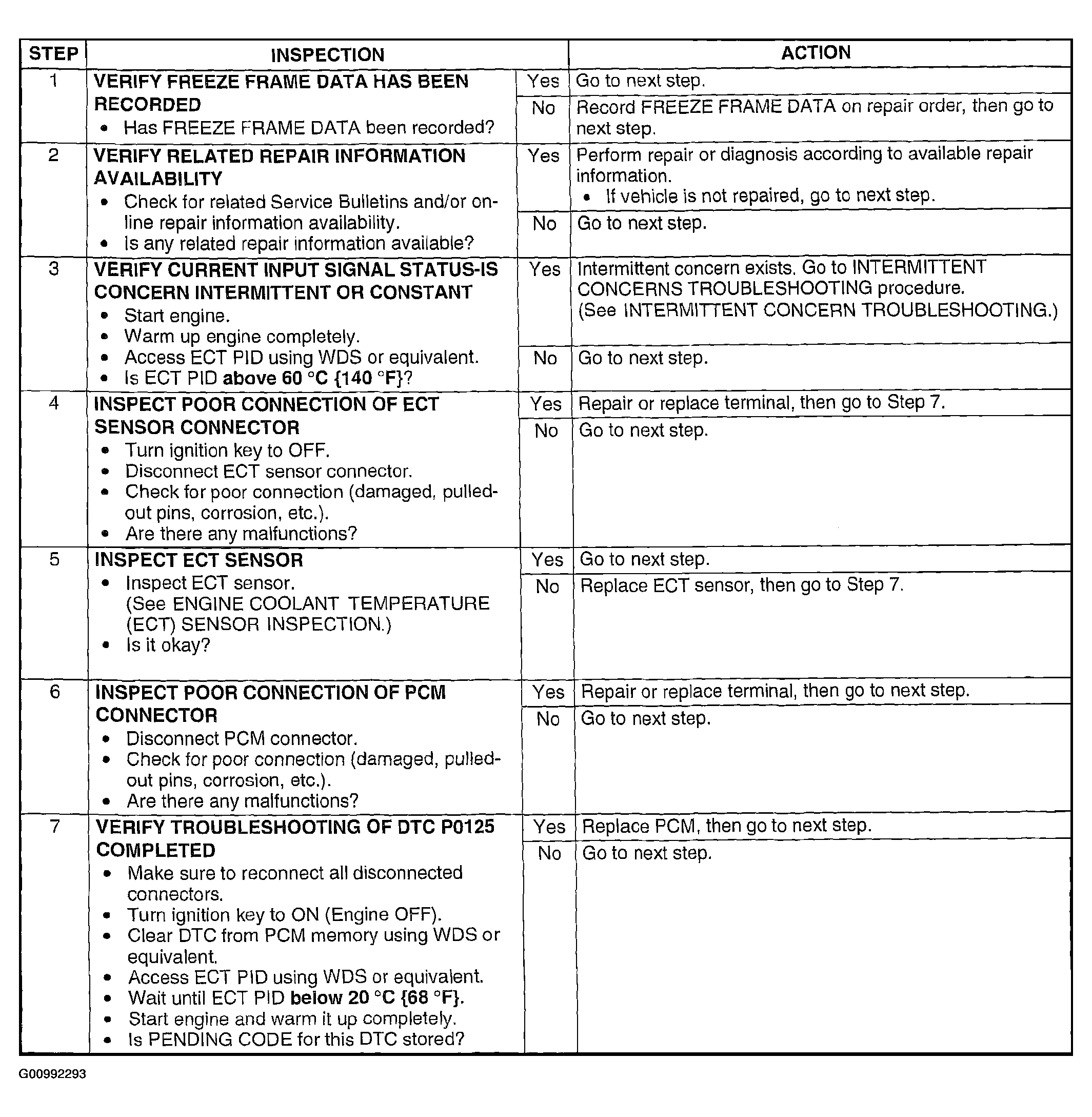

Fig 1: DTC P0125 Diagnostic Procedure Chart (Step 1-7)
Courtesy of MAZDA MOTORS CORP.

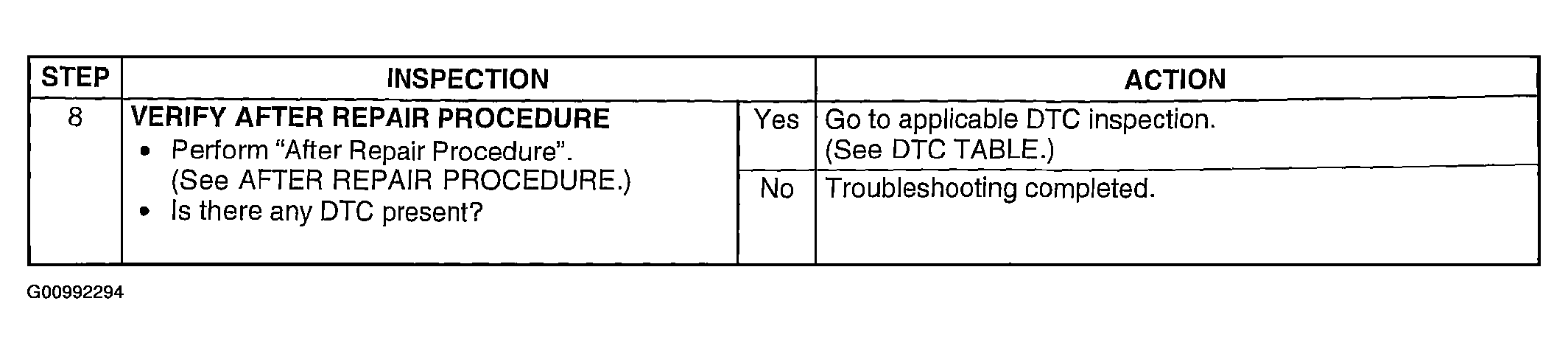

Fig 2: DTC P0125 Diagnostic Procedure Chart (Step 8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
