DTC P0123: TP Circuit High Input: Notes

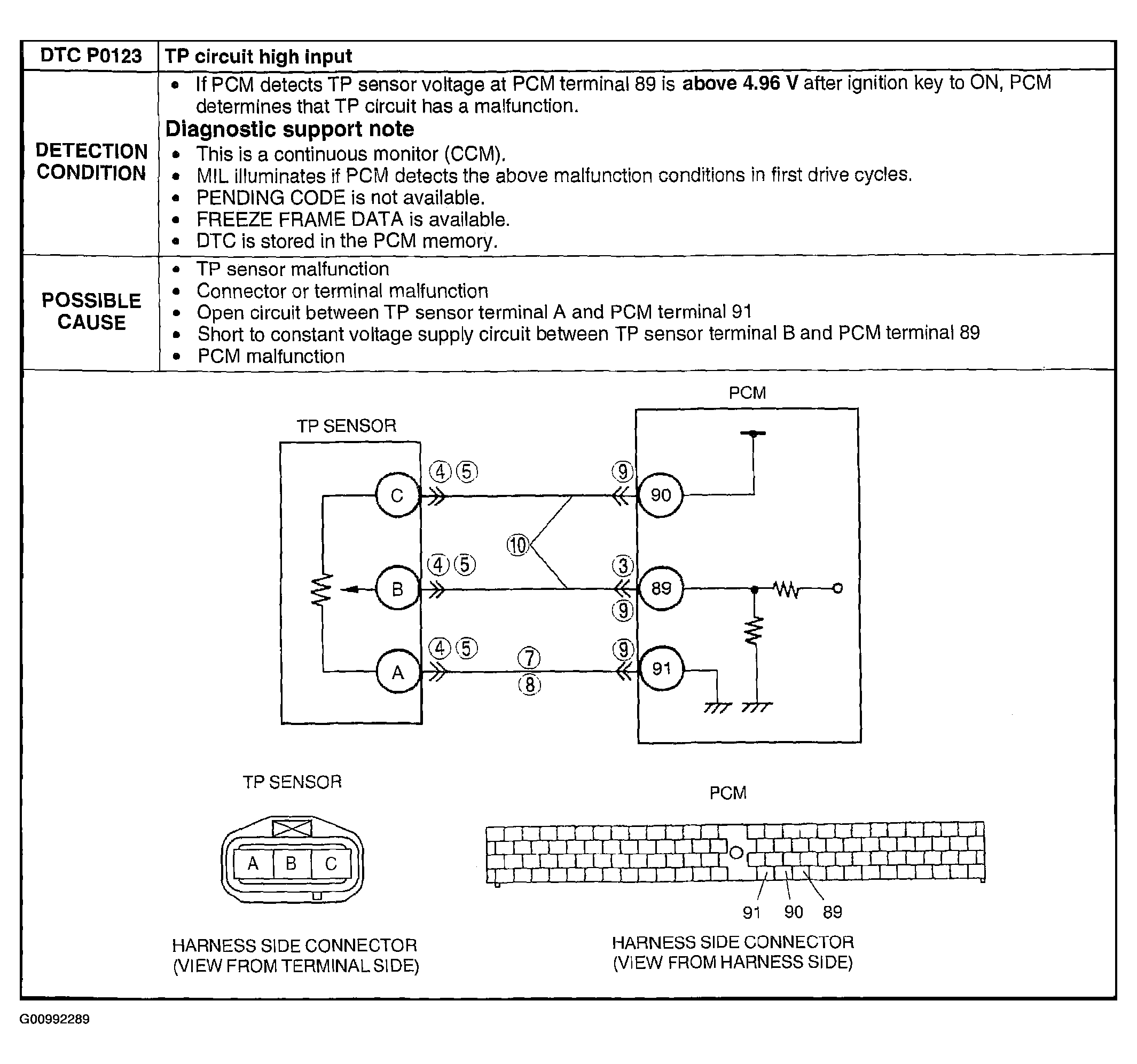

Fig 1: DTC P0123 Detection Condition & Possible Causes Chart

G00992289

Courtesy of MAZDA MOTORS CORP.
