DTC P0118: ECT Circuit High Input: Notes

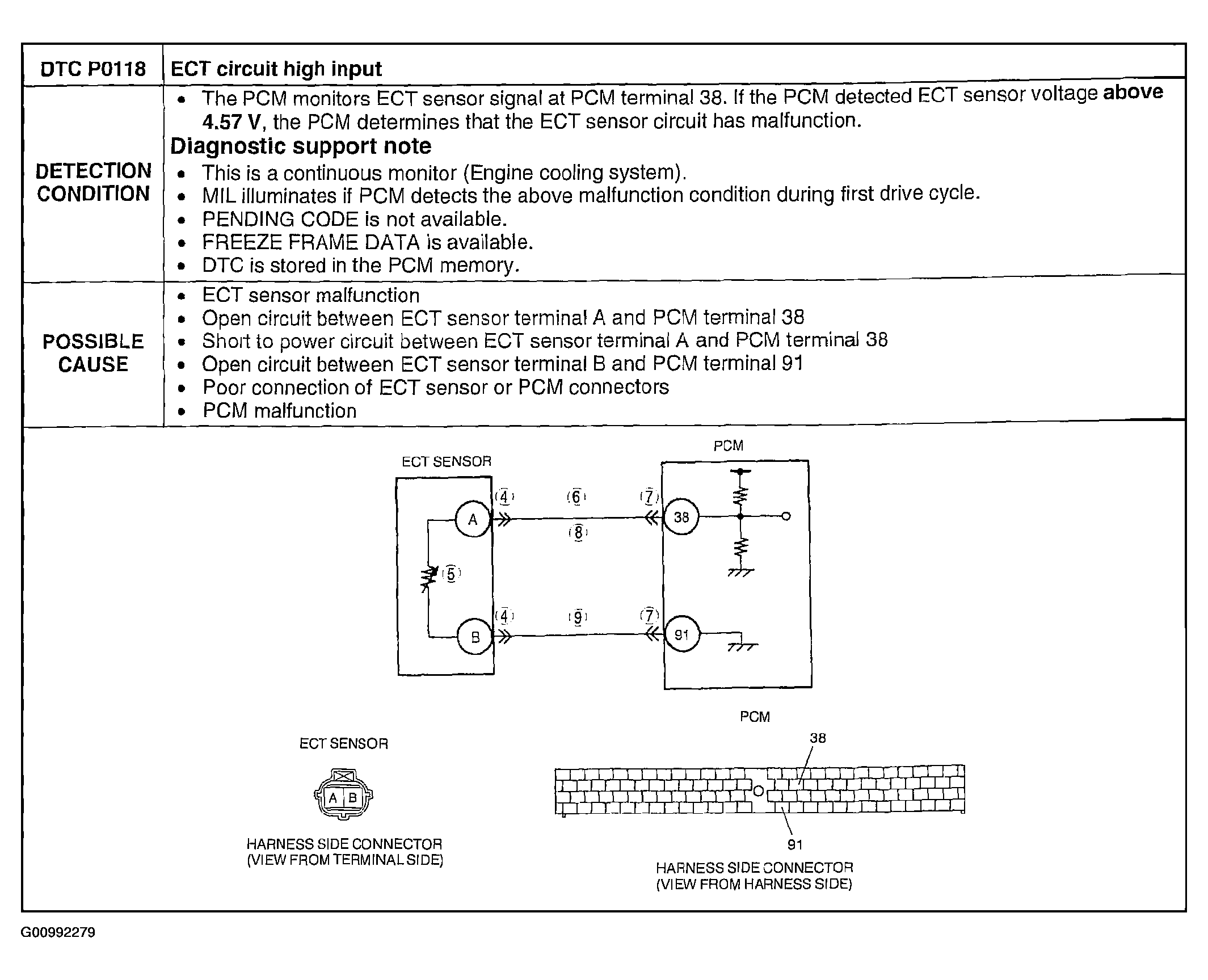

Fig 1: DTC P0118 Detection Condition & Possible Causes Chart

G00992279

Courtesy of MAZDA MOTORS CORP.
