DTC P0117: ECT Circuit Low Input
>>
Notes
DTC P0117: ECT Circuit Low Input: Notes

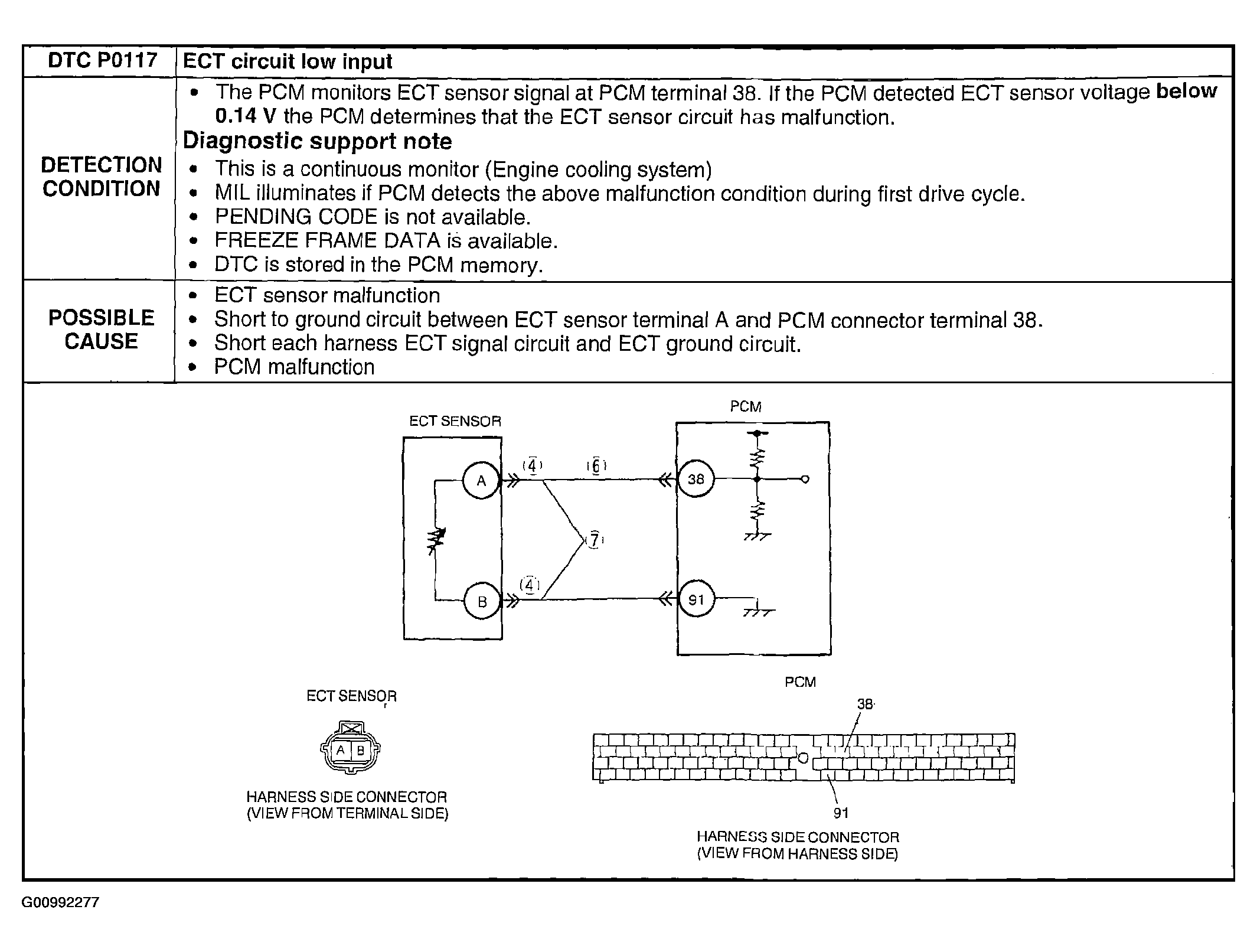

Fig 1: DTC P0117 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
