Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0113: IAT Circuit High Input >> Notes

DTC P0113: IAT Circuit High Input: Notes

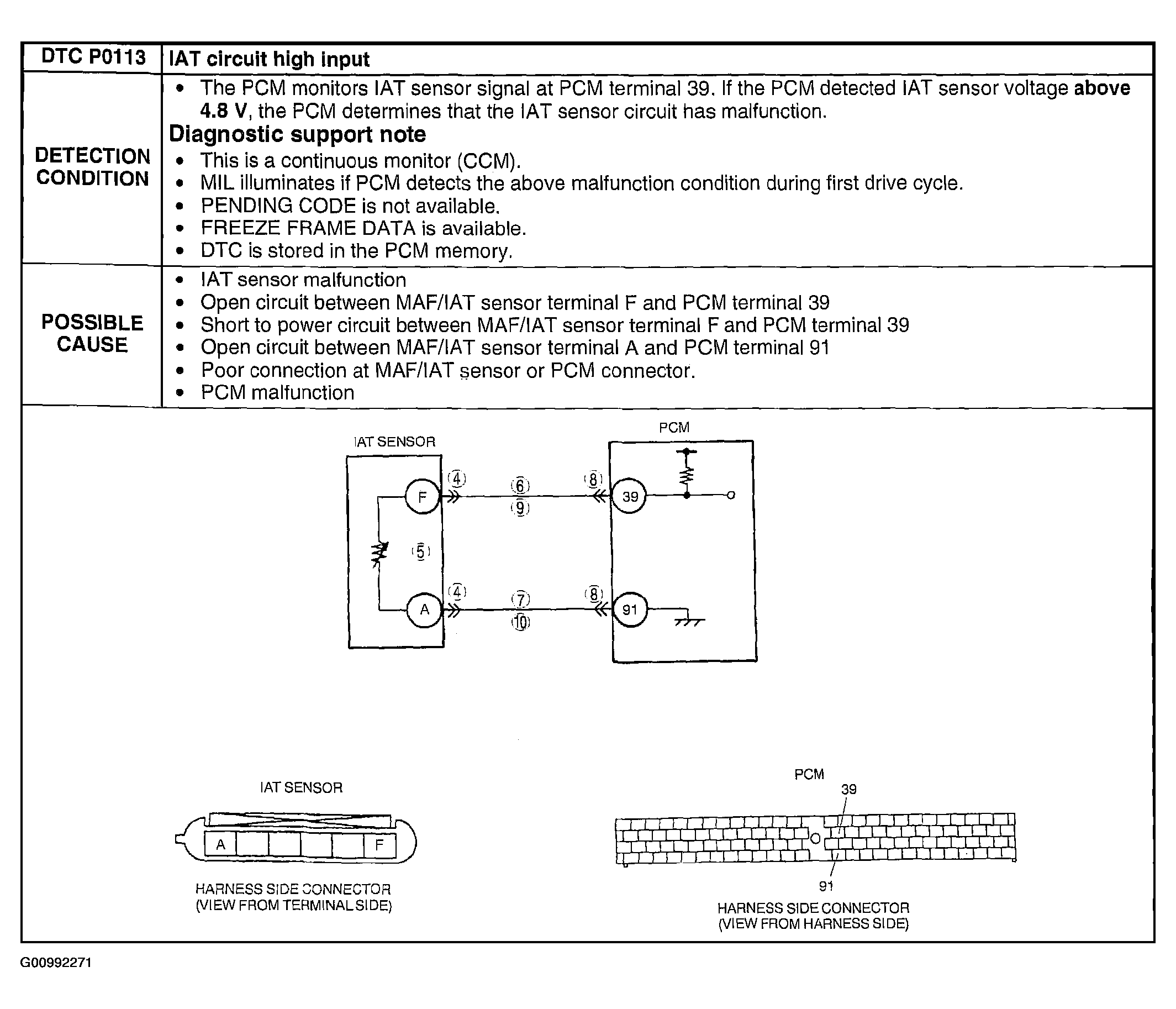

Fig 1: DTC P0113 Detection Condition & Possible Causes Chart

G00992271

Courtesy of MAZDA MOTORS CORP.
