DTC P0113: IAT Circuit High Input
>>
Diagnostic Procedure
Diagnostic Procedure

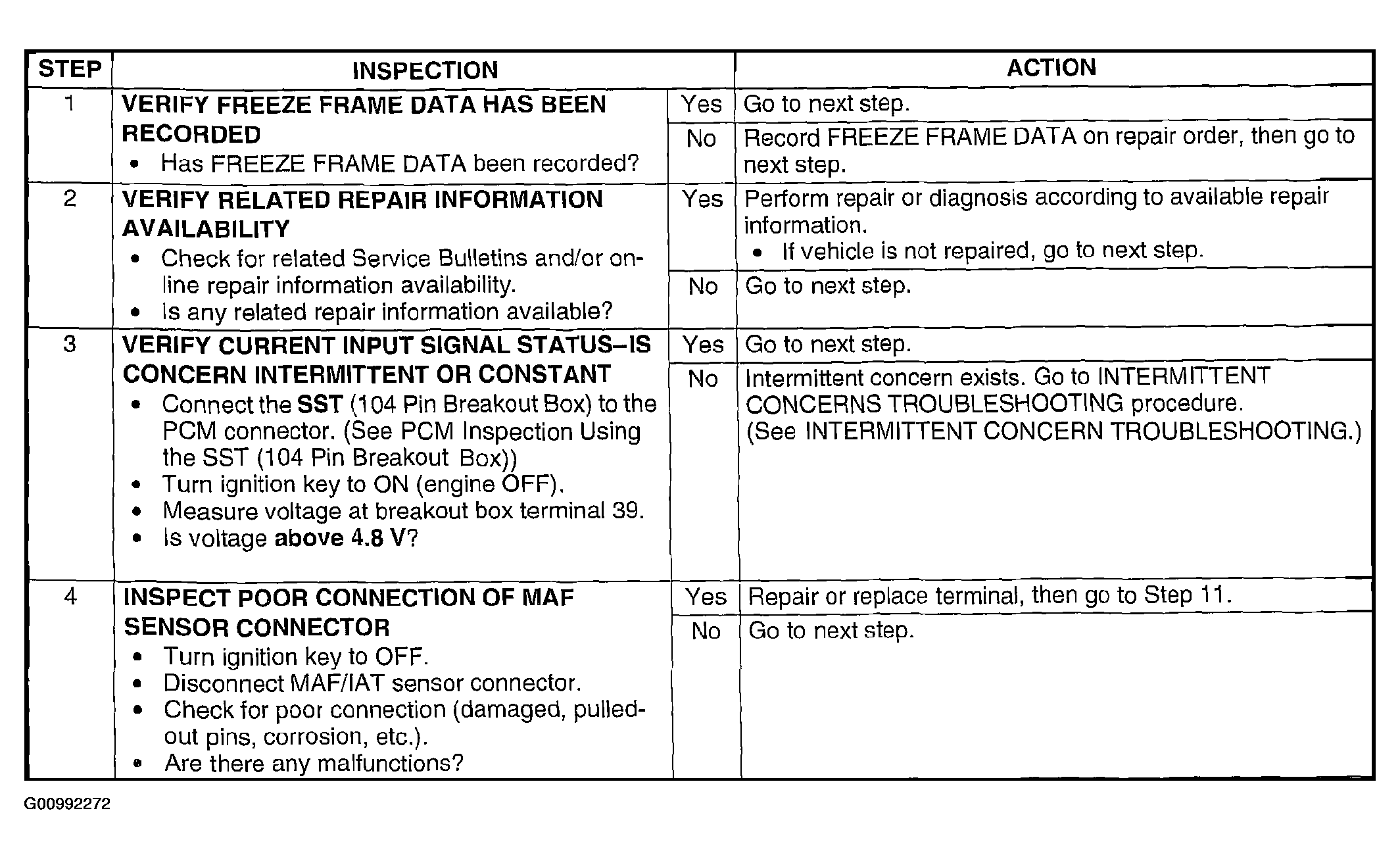

Fig 1: DTC P0113 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

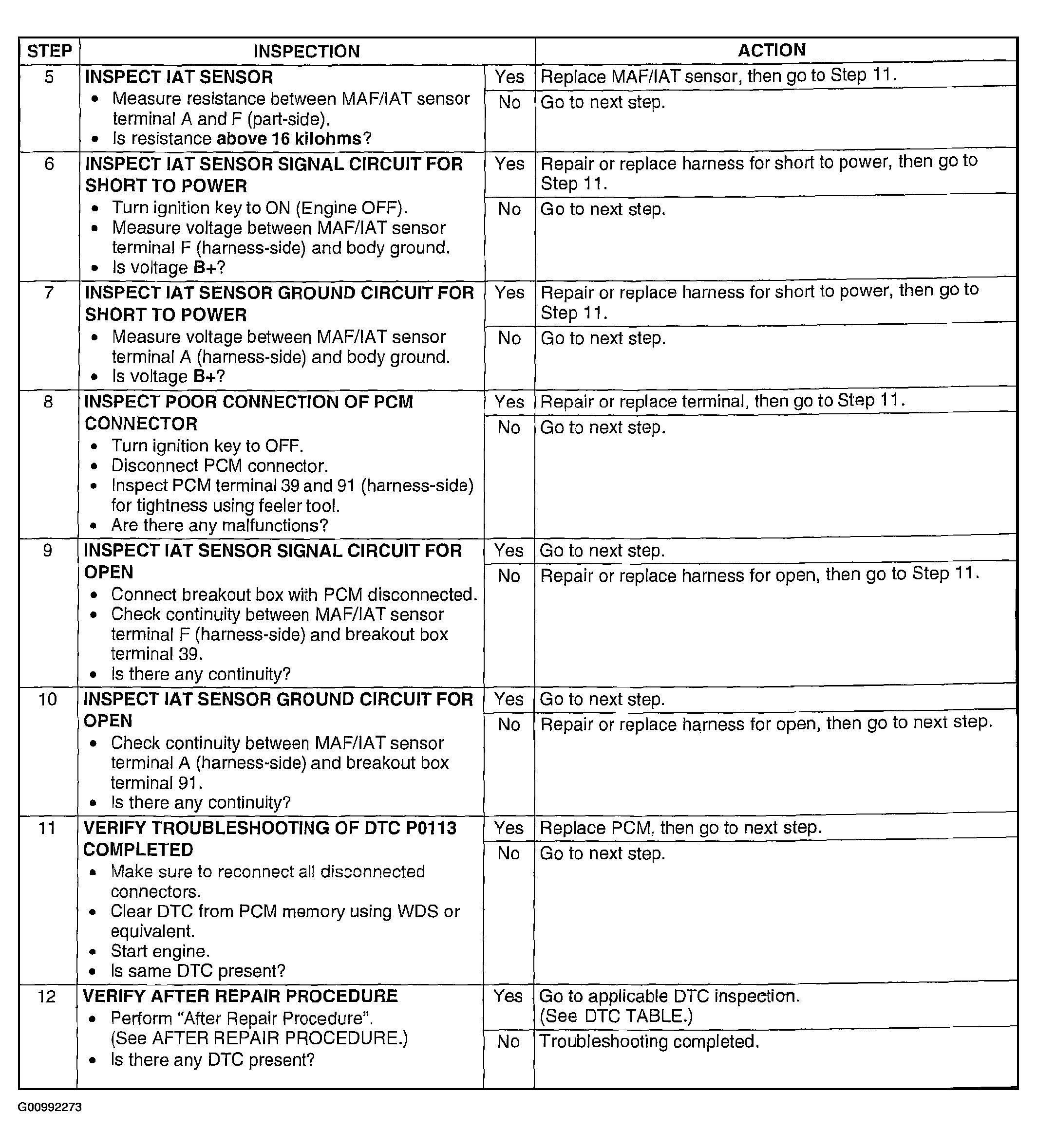

Fig 2: DTC P0113 Diagnostic Procedure Chart (Step 5-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
